ET18UMXGW00 06 – SHELF, LIT/OPTIONAL

ET18UMXGW00 06 – SHELF, LIT/OPTIONAL

Written by

in

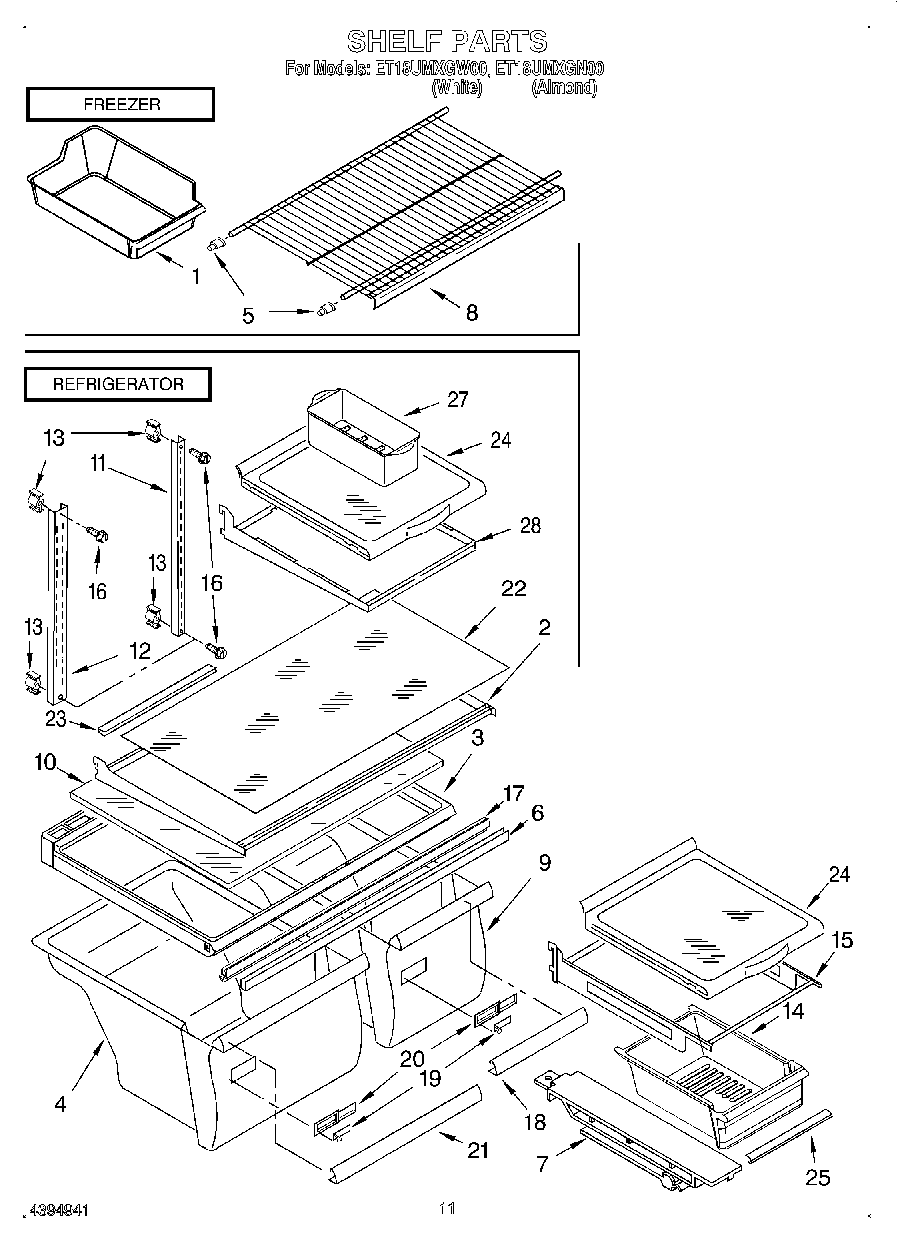

ET18UMXGW00 06 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2199056
	WPL LIT2199009
	WPL LIT677971
	Modular Icemaker Service Sheet
	Torx Key
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2195481
1	2254352A Whirlpool Refrigerator Ice Container
2	Shelf, Full Cantilever
3	WP2314548 Whirlpool Refrigerator Cover
4	W10854037 Whirlpool Refrigerator Crisper Pan
5	2163762 Whirlpool Refrigerator Cup Assembly
6	WP2172748 Whirlpool Drawer Support
7	WP2163835 Whirlpool Track Assembly
8	WP2176275 Whirlpool Refrigerator Wire Shelf
9	W10856580 Whirlpool Crisper Pan
10	WP2169921 Whirlpool Refrigerator Glass Shelf
11	Shelf, Ladder (2)
12	Shelf, Ladder Center
13	Support, Screw
14	PAN-MEAT
15	Frame Assembly, Meat Shelf
16	W11544659 Whirlpool Refrigerator Screw
17	Gasket, Crisper Cover
18	Trim, Crisper Pan
19	WP2176222 Whirlpool Refrigerator Slide
20	WP2212446 Whirlpool Refrigerator Control Body
21	WP2195341 Whirlpool Refrigerator Pan Trim
22	Glass, Full Shelf
23	Trim, Shelf Rear
24	Shelf Assembly, Spillguard
25	Trim, Meat Pan
27	W10136387A Whirlpool Refrigerator Egg Container
28	Frame Assembly, Shelf (3)
100	Almond (Uncut)
100	WP72107 Whirlpool Touchup
100	799344 Whirlpool Refrigerator Paint
100	350942 Whirlpool Spray Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	Door Reversal Instructions
100	350956 Whirlpool Spray Assembly
100	350930 Whirlpool White Spray Paint
100	212643 Whirlpool Refrigerator Permagum Sealer
100	511873 Whirlpool Refrigerator Paint
100	606755 Whirlpool Refrigerator Bag
100	WPL 876029
100	72032 Whirlpool Touch Up Paint Black
100	WPL 799833
100	WPL 799832
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	TAPE, VINYL (3/4 X 108“)
100	WP542638 Whirlpool Refrigerator Grease
100	285006 Whirlpool Spray
100	WP505587 Whirlpool Refrigerator Sealer
100	WP503695 Whirlpool Refrigerator Sealer
100	876370 Whirlpool Refrigerator Insulation
100	833938 Whirlpool Refrigerator Terminal
100	FeaturePak (Includes 4, 7, 12, 14, 15, 24, 25) Also Also See Door Pg. See Door Page.
