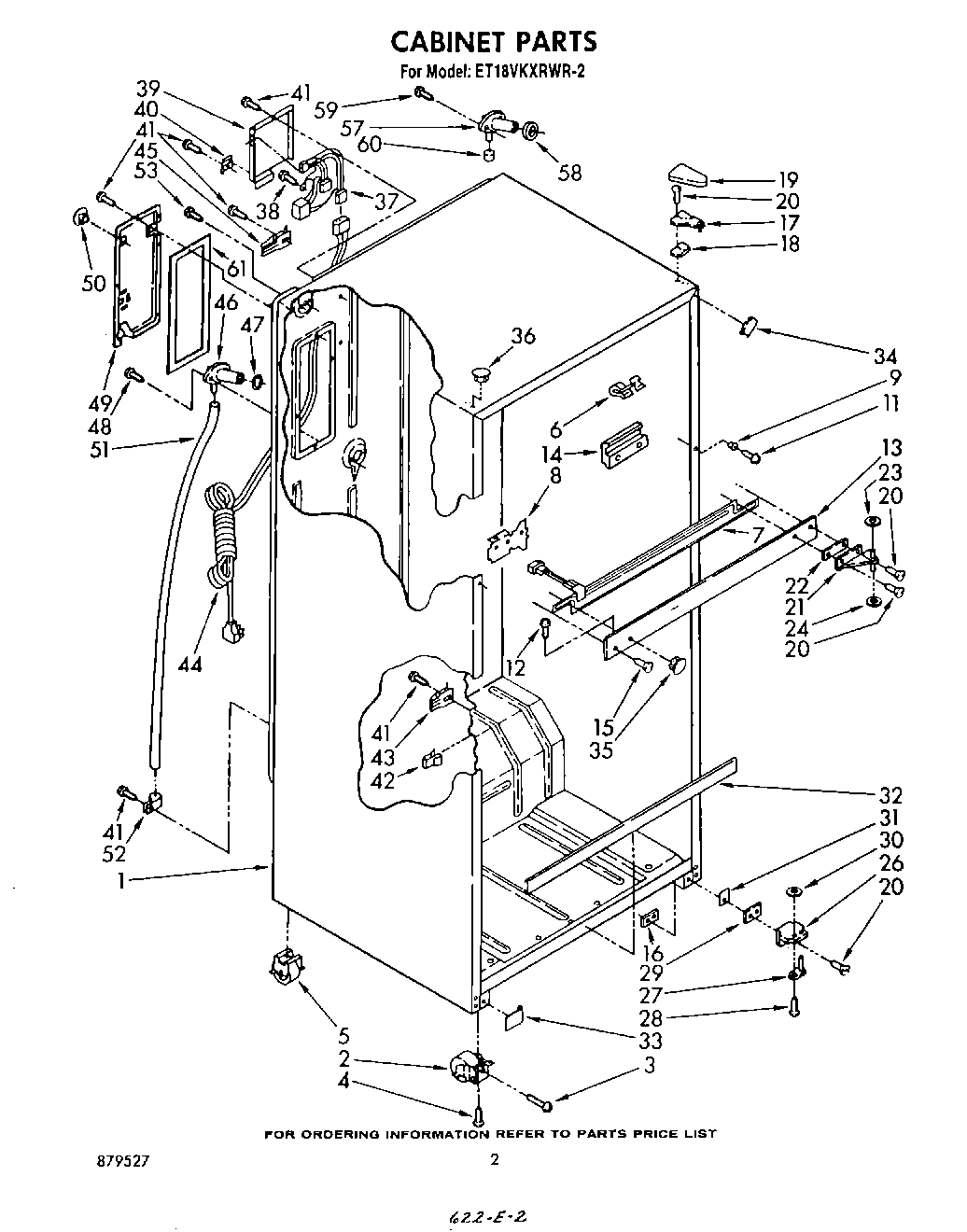

ET18VKXRWR2 02 – CABINET

ET18VKXRWR2 02 – CABINET

Written by

in

ET18VKXRWR2 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	Screw, 10-32 x 1/2
5	Roller, Front & Rear (4)
6	Breaker, Trim Clip
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	Ferrule, Center Rail
11	WPL 488428
12	WP488729 Whirlpool Refrigerator Door Screw
13	Center Rail (Toast)
13	Center Rail (Golden Harvest)
13	Center Rail (White)
13	Center Rail (Platinum)
13	Center Rail (Almond)
14	Center, Rail Shim (2)
15	Screw
16	WPL 944813
17	Shim, Hinge Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Golden Harvest)
19	Hinge Cover (Toast)
20	Screw (Repair)
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
22	Shim, Center (Repair)
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP487802 Whirlpool Refrigerator Washer
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Platinum)
31	Cover, Glider Rail (Toast)
31	Cover, Glider Rail (Almond)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (Platinum)
32	Cover, Deck Rail (Toast)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (White)
33	WPL 944831
33	WPL 943552
33	WPL 1100682
33	Cover, Gl
33	WPL 944833
34	WPL 1110688
34	WPL 1110686
34	WPL 1110687
34	WPL 1110684
34	WPL 1110685
35	Hole Plug (2)
35	Hole Plug (2) (Platinum)
35	Hole Plug (2) (Golden Harvest)
35	Hole Plug (2) (Toast)
35	Hole Plug (2) (Almond)
36	Hole Plug (3) (Toast)
36	Hole Plug (2) (White)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (3) (Platinum)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
40	WPL 944741
41	W11624204 Whirlpool Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	WP98165 Whirlpool Screw
49	WPL 1106511
50	WPL 655411
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489069 Whirlpool Compactor Screw
57	WP2196157 Whirlpool Fill Tube
58	WP1106508 Whirlpool Refrigerator Gasket
60	WP487996 Whirlpool Refrigerator Cap Tube
61	WPL 1106510
