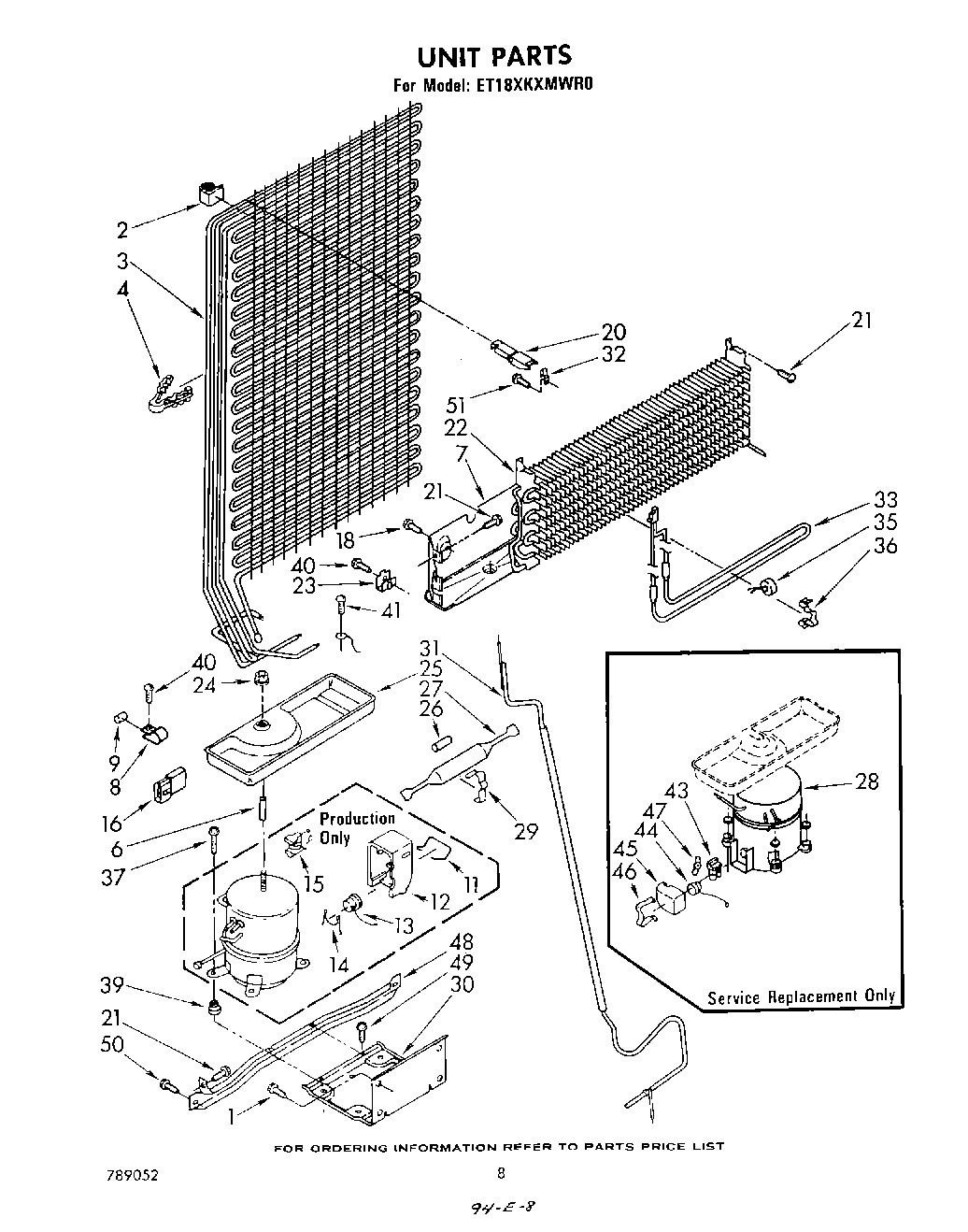

ET18XKXMWR0 07 – UNIT

Products

Position	Product
1	W11693756 Whirlpool Screw Assembly
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
11	case spring
12	relay case
13	Overload
14	Spring, Overload
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
20	Condenser, Stand-Off
21	W11624204 Whirlpool Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	WP487939 Whirlpool Refrigerator Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	WP489069 Whirlpool Compactor Screw
41	303776 Whirlpool Dishwasher Screw
43	Relay
44	Overload
45	Cover, Terminal
46	Cover, Spring
47	Spring, Overload
48	Rail, Unit Mounting
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
51	978030 Whirlpool Refrigerator Valve
51	VALVE, ACCESS (1/2“)
51	876764 Whirlpool Refrigerator Primary Valve
51	VALVE, ACCESS (5/8“)
51	978026 Whirlpool Refrigerator Primary Valve
51	Screw, 8 x 3/8
51	WP978025 Whirlpool Refrigerator Valve
51	978027 Whirlpool Refrigerator Primary Valve
