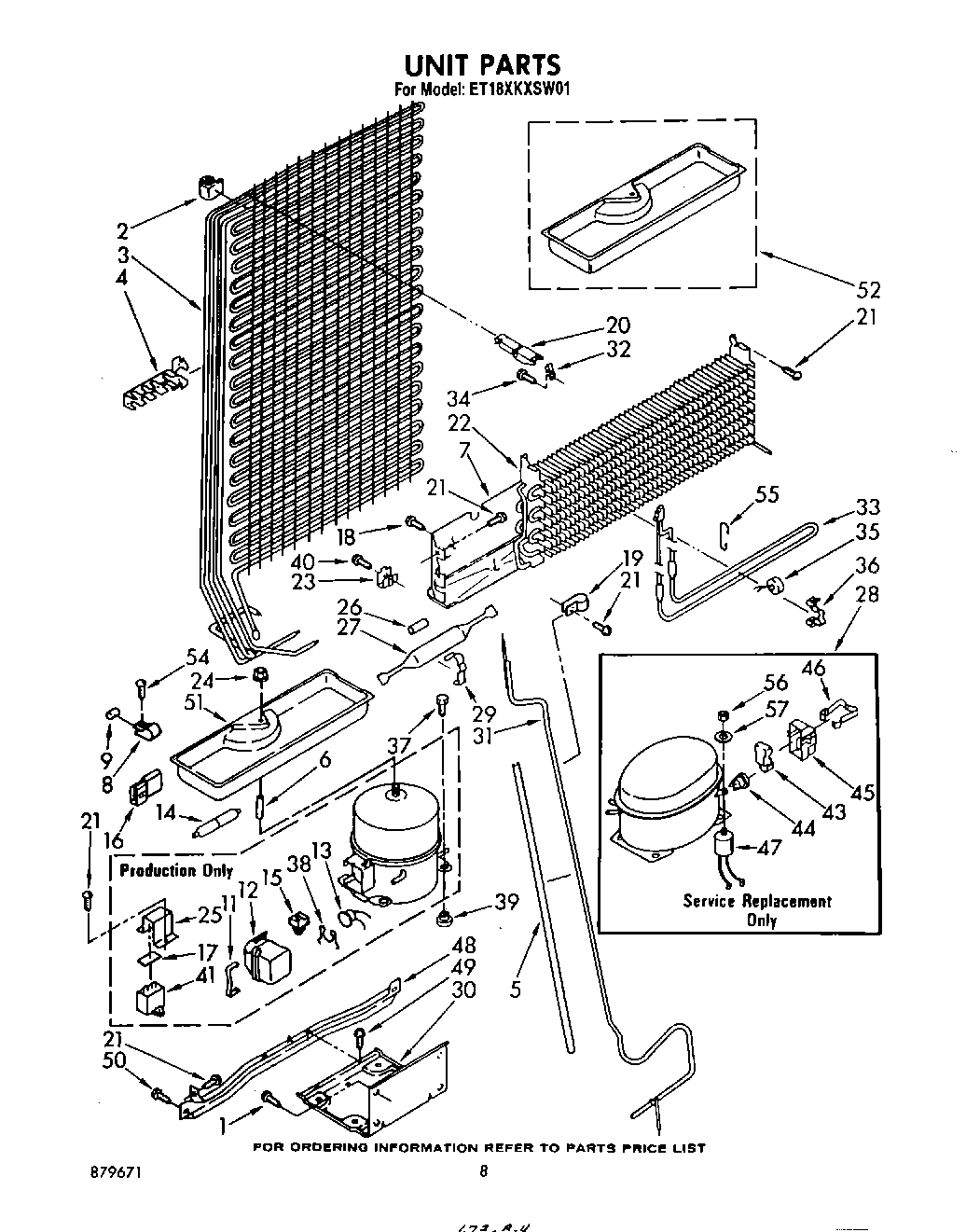

ET18XKXSW01 07 – UNIT

ET18XKXSW01 07 – UNIT

Written by

in

ET18XKXSW01 07 – UNIT

Products

PositionProduct
1WP250830 Whirlpool Refrigerator Screw
2Bumper (2)
3Condenser & Precooler Assembly
4Clip, Tube (2)
5WP2002171 Whirlpool Refrigerator Sleeve
6Spacer
7Heat Shield Evaporator
8Clamp Tube
9Dampener
11case spring
12Case, Relay
13Overload
14Muffler
15Relay
16WP717253 Whirlpool Dishwasher Connector
17Spacer, Capacitor
19Tube, Clamp
20Condenser, Stand-Off
21W11624204 Whirlpool Screw
22Evaporator
234386951 Whirlpool Refrigerator Clip
24285002 Whirlpool Nut
25Cover, Capacitor
26Restrictor Sleeve
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29Drier Clamp
30Unit Mounting Plate
31Exchanger, Heat
32Clip, Stand Off
33Heater, Defrost
34Screw, 8 x 3/8
35WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36Clamp
38Spring, Overload
39876811 Whirlpool Grommet
40WP489069 Whirlpool Compactor Screw
41WPW10662129 Whirlpool Refrigerator Run Capacitor
43Relay
44Overload
45Cover, Terminal
46Strap
47Capacitor
48Rail, Unit Mounting
49WP965173 Whirlpool Dishwasher Screw
50Screw, 1/4-28 x 1
51Tray, Evaporator
52Evaporator Tray
54Screw, 8-32 x 1/2
55Support, Heater
56Nut
57978026 Whirlpool Refrigerator Primary Valve
57876764 Whirlpool Refrigerator Primary Valve
57978027 Whirlpool Refrigerator Primary Valve
57978030 Whirlpool Refrigerator Valve
57WP978025 Whirlpool Refrigerator Valve
57VALVE, ACCESS (1/2“)
57VALVE, ACCESS (5/8“)
57Washer
