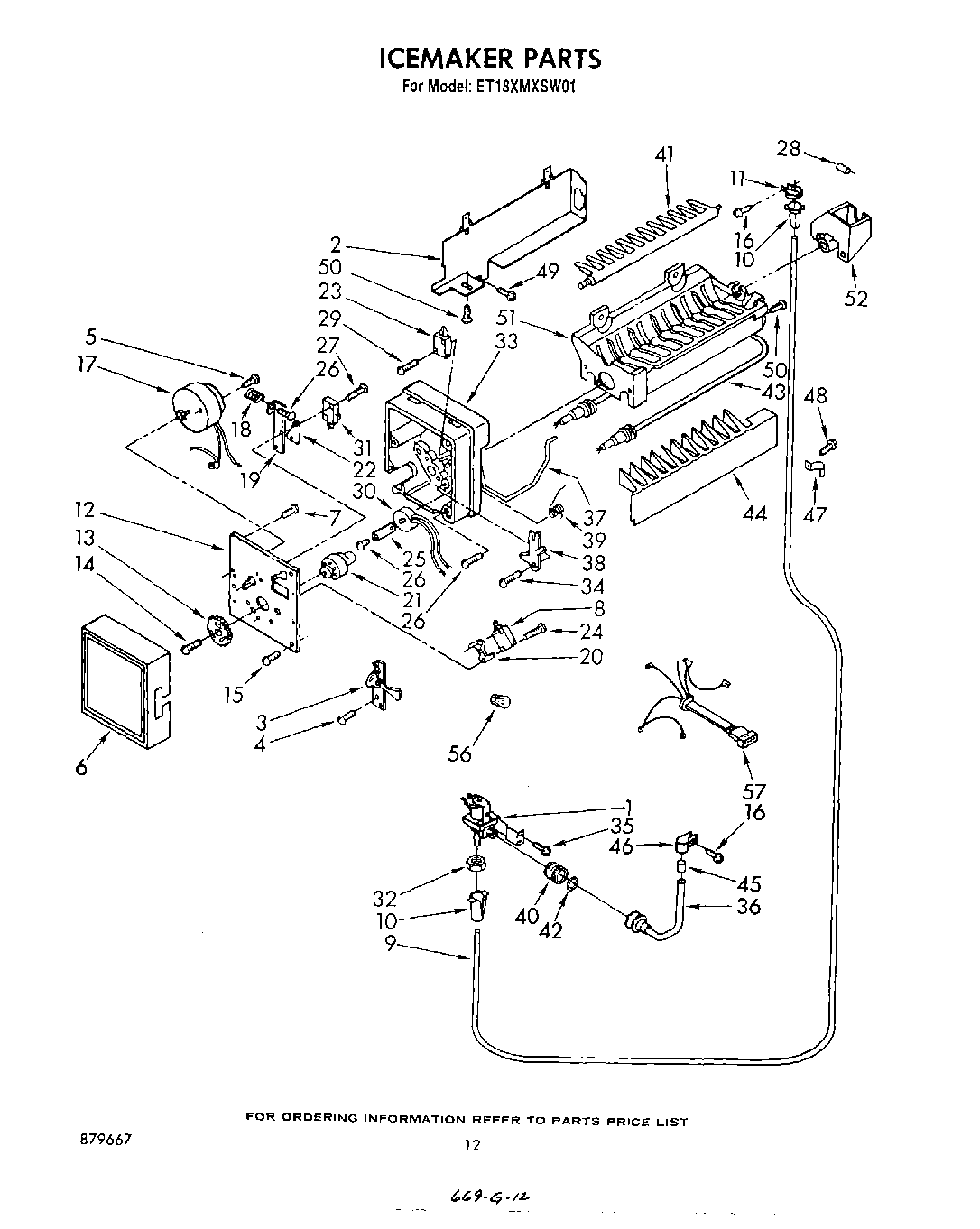

ET18XMXSW01 09 – ICE MAKER , MISCELLANEOUS

ET18XMXSW01 09 – ICE MAKER , MISCELLANEOUS

Written by

in

ET18XMXSW01 09 – ICE MAKER , MISCELLANEOUS

Products

PositionProduct
350930 Whirlpool White Spray Paint
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest
WPL LIT1108042
350942 Whirlpool Spray Paint
WPL LIT1111969
Leveler (Thinner)
WPL LIT879667
WPL LIT1111980
285006 Whirlpool Spray
350956 Whirlpool Spray Assembly
14318047 Whirlpool Water Valve
2Shield, Heat
3Lever & Plate Assembly
4Screw (Use W/Motor 627106)
6Cover
7Screw, Ground
8Switch, S.P.D.T.
9W10823511 Whirlpool Refrigerator Water Tube
104387491 Whirlpool Refrigerator Insert
11WP488878 Whirlpool Refrigerator Tube Clamp
12Plate, Mounting
13Gear
14Screw
15WP488787 Whirlpool Refrigerator Screw
17Motor
18Spring
19Plate, Valve Switch
20Spacer, Switch (2)
21Cam
22Insulator
23Switch, S.P.D.T. (2)
24Screw, 4-40 x 1
25Clamp, Thermostat
26Screw, 8-32 x 1
27Screw
28Tube, Water Inlet
29Screw, 4-24 x 3/4
30Thermostat
31Switch, S.P.S.T.
32WP627018 Whirlpool Refrigerator Nut
33Support
34Screw, Shoulder
35WPW10141625 Whirlpool Refrigerator Screw Assembly
36Tube, Inlet Valve
37Arm, Shut-Off
38Lever, Arm
39Spring, Shut-Off Arm
40Nut, Valve
41Ejector
42WP16123 Whirlpool Washer
43Heater, Mold
44Stripper, Ice
45WP2158826 Whirlpool Refrigerator Dampener
46Clamp Tube
47WP488366 Whirlpool Refrigerator Clamp
48WP489069 Whirlpool Compactor Screw
49Screw, 8-15 x 1/2 (4)
50WP489128 Whirlpool Refrigerator Screw
51Mold & Heater Assembly (Includes Illus. 15)
52Beraing & Inlet
56Wire Connector
57WPL 799833
57Golden Harvest (Uncut)
57212643 Whirlpool Refrigerator Permagum Sealer
57WPL 72112
57Platinum (Uncut)
57Enamal, Toast (1 Qt. Uncut)
5772113 Whirlpool Touch-Up Paint
5772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
57Almond (Uncut)
57WP72107 Whirlpool Touchup
57WPL 627750
57799344 Whirlpool Refrigerator Paint
57511873 Whirlpool Refrigerator Paint
57606755 Whirlpool Refrigerator Bag
57Silicone (Spray)
5772032 Whirlpool Touch Up Paint Black
57WPL 876029
57WPL 799832
57CEMENT, ALUMILASTIC (1 1/4 OZ.)
57TAPE, VINYL (3/4 X 108“)
57WP542638 Whirlpool Refrigerator Grease
57WP505587 Whirlpool Refrigerator Sealer
57WP503695 Whirlpool Refrigerator Sealer
57876370 Whirlpool Refrigerator Insulation
57833938 Whirlpool Refrigerator Terminal
5772017 Whirlpool Appliance Touch-Up Paint White
