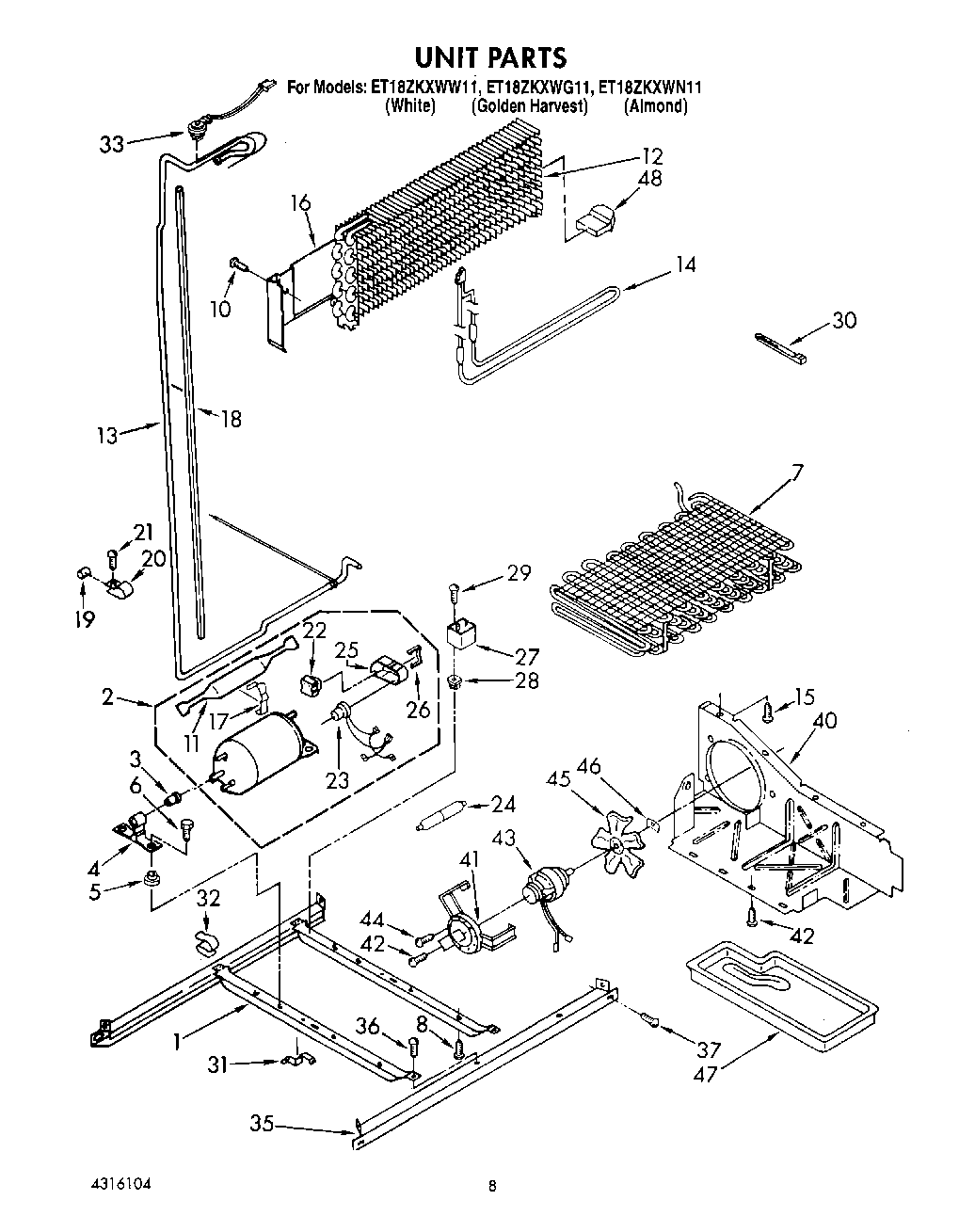

ET18ZKXWG11 06 – UNIT

Products

PositionProduct
1Unit, Frame
2Compressor KIt Includes Items (11, 17, 22, 23, 25, 26, 27)
3Grommet, Compressor Bracket
4Bracket, Mounting
5Grommet, Compressor (4)
6Screw (4)
7Condenser Assembly
10WP965173 Whirlpool Dishwasher Screw
11W10843121 Whirlpool Refrigerator Tube
12Evaporator Assembly
13Heat, Exchanger
14Heater, Defrost
15WP489478 Whirlpool Refrigerator Screw
15SCREW
16Heat Shield
17Clamp, Dryer
18WP2002171 Whirlpool Refrigerator Sleeve
19Dampener (2)
20Clamp Tube
21WPW10141625 Whirlpool Refrigerator Screw Assembly
22Relay (See Overload)
23Overload
24Muffler
25Terminal Cover (Service)
25Terminal Cover
26Strap, Cover
27Overload (Service (Includes Relay))
27WPW10662129 Whirlpool Refrigerator Run Capacitor
28Screw Grommet
29W11693756 Whirlpool Screw Assembly
30Strap
31Clip (2)
32Clip, Wire (2)
33WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35Unit, Rail
36Screw, 1/4-28 x 1/2 (2)
37489340 Whirlpool Refrigerator Screw
40Air, Baffle
41Fan, Mounting Bracket
42Screw, 8 x 3/8
43833697 Whirlpool Condenser Fan Motor
44681390 Whirlpool Refrigerator Screw
45Fan Blade
46WP486692 Whirlpool Refrigerator Nut
47Tray, Evaporator
48876764 Whirlpool Refrigerator Primary Valve
48978026 Whirlpool Refrigerator Primary Valve
48978027 Whirlpool Refrigerator Primary Valve
48978030 Whirlpool Refrigerator Valve
48WP978025 Whirlpool Refrigerator Valve
48VALVE, ACCESS (1/2“)
48Wedge, Air Baffle
48VALVE, ACCESS (5/8“)
