ET18ZKXYG00 06 – UNIT

Products

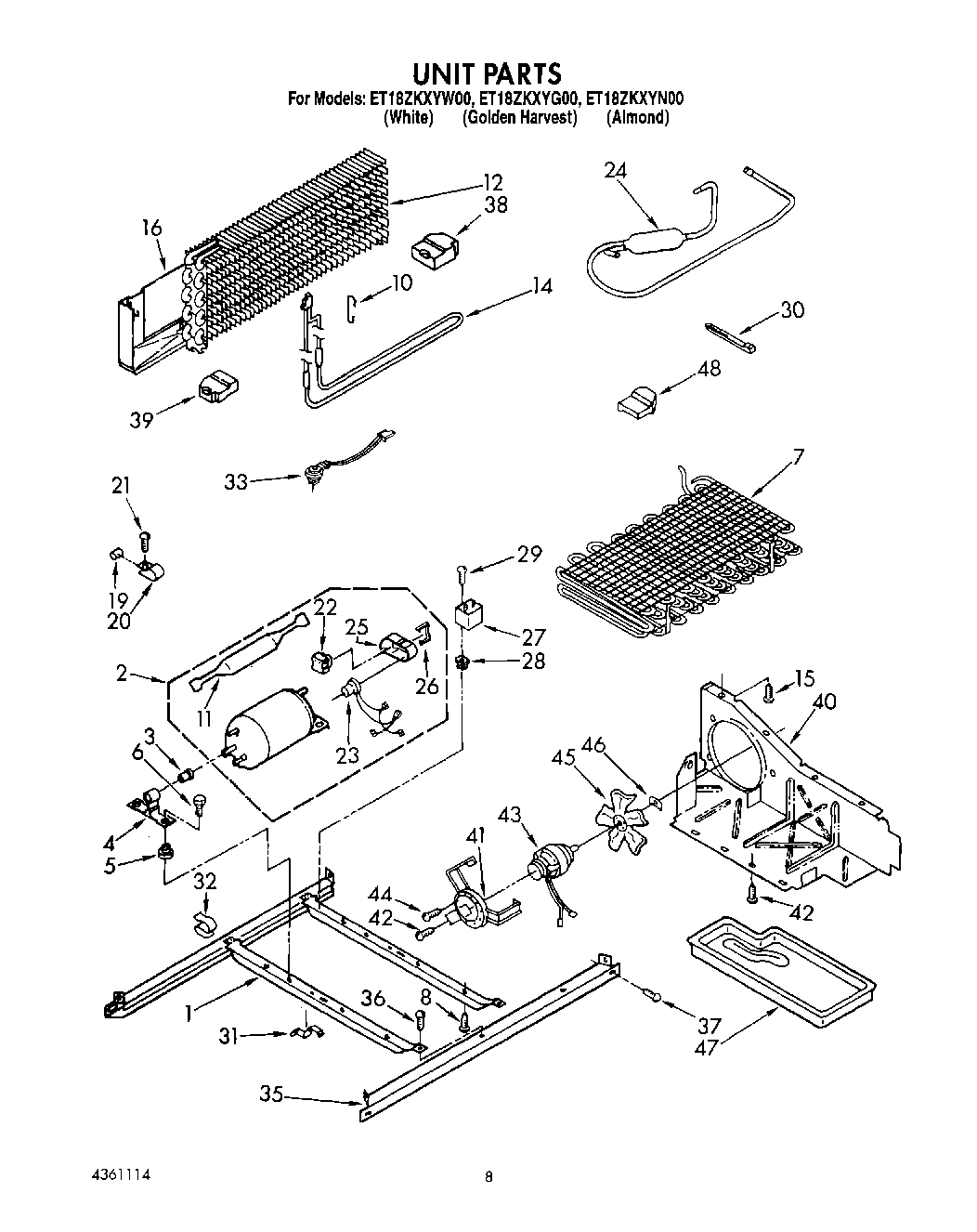

PositionProduct
1Unit, Frame
2Compressor KIt Includes Items (11, 17, 22, 23, 25, 26, 27)
3Grommet, Compressor Bracket
4Bracket, Mounting
5Grommet, Compressor (4)
6Screw (4)
7Condenser Assembly
10Support, Heater
11W10843121 Whirlpool Refrigerator Tube
12Evaporator
14Heater, Defrost
15WP489478 Whirlpool Refrigerator Screw
16Drain Pan & Heat Shield
19Dampener (2)
20Clamp Tube
21WPW10141625 Whirlpool Refrigerator Screw Assembly
22Relay (See Overload)
23Overload (Production (Includes Relay))
23Overload (Service (Includes Relay))
24Muffler
25Terminal Cover (Service)
26Strap, Cover
27WPW10662129 Whirlpool Refrigerator Run Capacitor
28Screw Grommet
29W11693756 Whirlpool Screw Assembly
30Strap
31Clip (2)
32Clip, Wire (2)
33WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35Unit, Rail
36WP489427 Whirlpool Refrigerator Screw
37489340 Whirlpool Refrigerator Screw
38Support (R.S.)
39Support (L.S.)
40Air, Baffle
41Fan, Mounting Bracket
42Screw, 8 x 3/8
43833697 Whirlpool Condenser Fan Motor
44681390 Whirlpool Refrigerator Screw
45Fan Blade
46WP486692 Whirlpool Refrigerator Nut
47Tray, Evaporator
48VALVE, ACCESS (5/8“)
48876764 Whirlpool Refrigerator Primary Valve
48978027 Whirlpool Refrigerator Primary Valve
48978030 Whirlpool Refrigerator Valve
48WP978025 Whirlpool Refrigerator Valve
48978026 Whirlpool Refrigerator Primary Valve
48Wedge, Air Baffle
48VALVE, ACCESS (1/2“)
