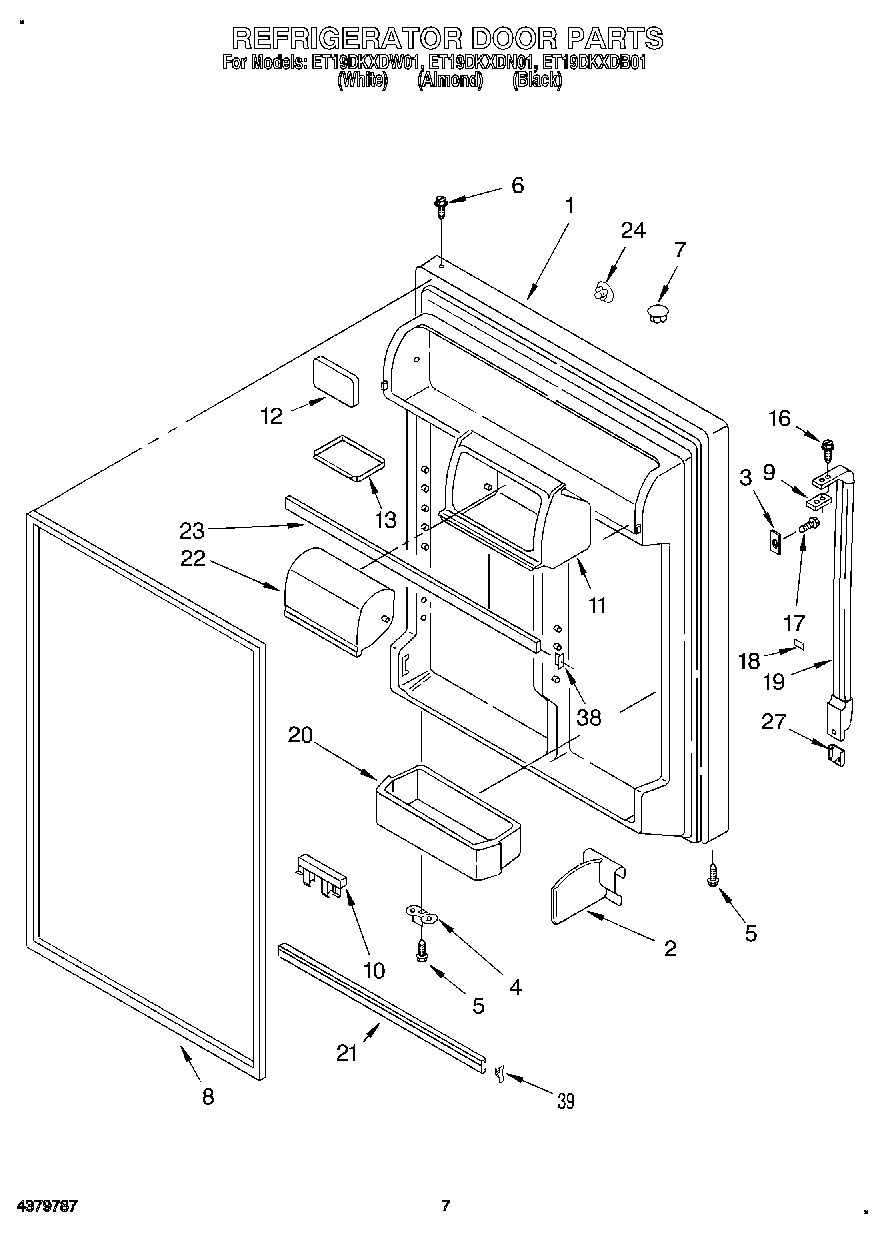

ET19DKXDB01 04 – REFRIGERATOR DOORadmin2025-04-26T11:06:40+00:00ET19DKXDB01 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes No.6 & No.8) (White) |
| 1 | Panel, Refrigerator Door (Includes Item 8) (Black) |
| 1 | Refrigerator Door (Includes No.6 & No.8) (Almond) |
| 2 | WPL 2171284 |
| 3 | Shim, Handle |
| 4 | W11745278 Whirlpool Bracket |
| 4 | Bracket, Door Stop |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | WP8281206 Whirlpool Refrigerator Screw |
| 7 | Hole Plug (Almond) |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 7 | WP2212651 Whirlpool Refrigerator Button Plug |
| 8 | 2177305 Whirlpool Refrigerator Door FIP Gasket |
| 8 | 2159057 Whirlpool Refrigerator Fresh Food Door Gasket |
| 9 | Shim, Bottom |
| 10 | Retainer, Bottle |
| 11 | Housing Compartment |
| 12 | WP2177331 Whirlpool Refrigerator Square Plastic |
| 13 | Tray, Door |
| 16 | WP488920 Whirlpool Refrigerator Screw |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 18 | Shim |
| 19 | Handle (Black) |
| 19 | Handle (Almond) |
| 19 | Handle (White) |
| 20 | Bin, Door Shelf (4) |
| 21 | WPW10421484 Whirlpool Refrigerator Door Trim |
| 22 | DOOR-COMP |
| 23 | WP2159312 Whirlpool Refrigerator Door Trim |
| 24 | WP2189009 Whirlpool Refrigerator Handle Plug |
| 24 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 24 | Hole Plug, Handle (Almond) |
| 27 | Cover, Endcap (Black) |
| 27 | Cover, End Cap (Almond) |
| 27 | Cover, Endcap (White) |
| 38 | Endcap, Door Trim |
| 39 | Plug, Trim (2) |
