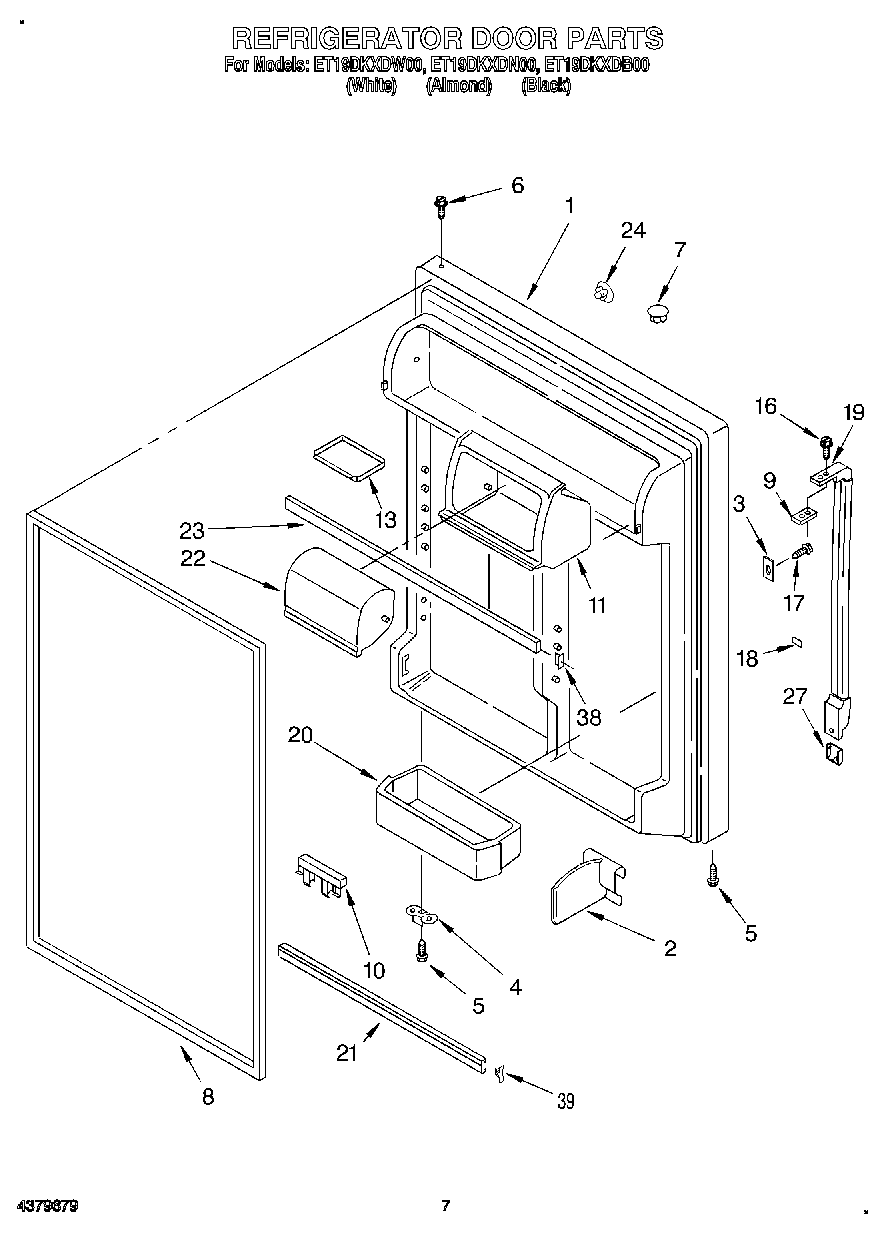

ET19DKXDN00 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.6 & No.8) (White)
1	Refrigerator Door (Includes No.6 & No.8) (Almond)
1	Panel, Refrigerator Door (Includes Item 8) (Black)
2	WPL 2171284
3	Shim, Handle
4	W11745278 Whirlpool Bracket
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212651 Whirlpool Refrigerator Button Plug
8	2177305 Whirlpool Refrigerator Door FIP Gasket
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
9	Shim, Bottom
10	Retainer, Bottle
11	Housing Compartment
13	Tray, Door
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Shim
19	Handle (Black)
19	Handle (Almond)
19	Handle (White)
20	Bin, Door Shelf (4)
21	WPW10421484 Whirlpool Refrigerator Door Trim
22	DOOR-COMP
23	WP2159312 Whirlpool Refrigerator Door Trim
24	Hole Plug, Handle (Almond)
24	WP2189009 Whirlpool Refrigerator Handle Plug
24	WP2189000 Whirlpool Refrigerator Handle Plug
27	Cover, Endcap (Black)
27	Cover, End Cap (Almond)
27	Cover, Endcap (White)
38	Endcap, Door Trim
39	Plug, Trim (2)
