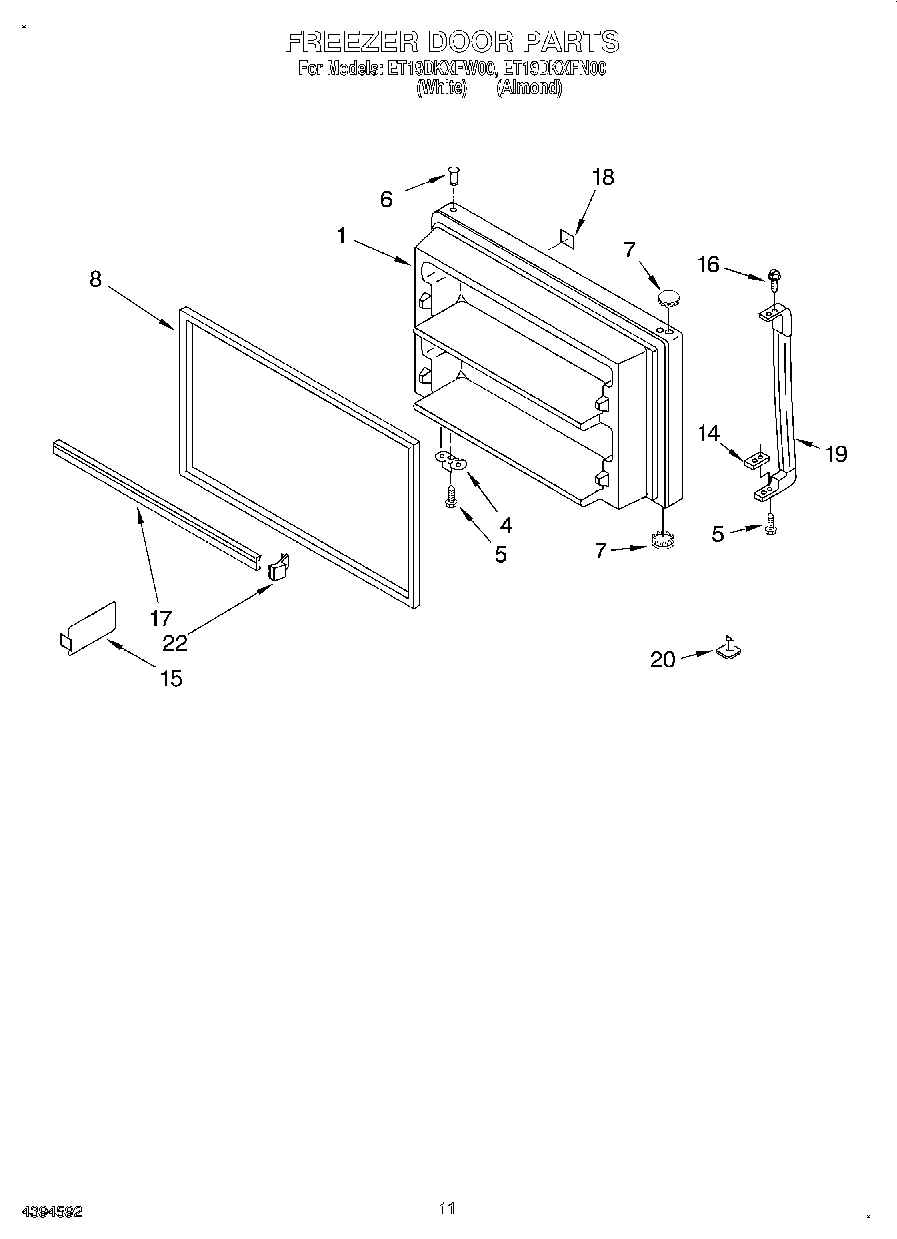

ET19DKXFN00 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT677971
	WPL LIT2195369
	WPL LIT2195605
	WPL LIT2195481
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
1	Freezer Door (Includes Illus. 2,6 & 8)
1	Freezer Door (Includes No.6 & No.8) (Almond)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159327 Whirlpool Refrigerator Door Gasket
14	Shim, Bottom
15	Divider-Door
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
18	Handle (Almond)
18	Handle (White)
19	Nameplate
19	Nameplate (Almond)
20	Hole Plug (White)
20	Hole Plug (Almond)
22	ENDCAP
22	72032 Whirlpool Touch Up Paint Black
22	350930 Whirlpool White Spray Paint
22	Door Reversal Instructions
22	285006 Whirlpool Spray
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	72017 Whirlpool Appliance Touch-Up Paint White
22	799344 Whirlpool Refrigerator Paint
22	WP72107 Whirlpool Touchup
22	Almond (Uncut)
22	212643 Whirlpool Refrigerator Permagum Sealer
22	350942 Whirlpool Spray Paint
22	511873 Whirlpool Refrigerator Paint
22	606755 Whirlpool Refrigerator Bag
22	833938 Whirlpool Refrigerator Terminal
22	876370 Whirlpool Refrigerator Insulation
22	WP503695 Whirlpool Refrigerator Sealer
22	WP505587 Whirlpool Refrigerator Sealer
22	WP542638 Whirlpool Refrigerator Grease
22	TAPE, VINYL (3/4 X 108“)
22	WPL 799832
22	WPL 799833
22	WPL 876029
22	350956 Whirlpool Spray Assembly
