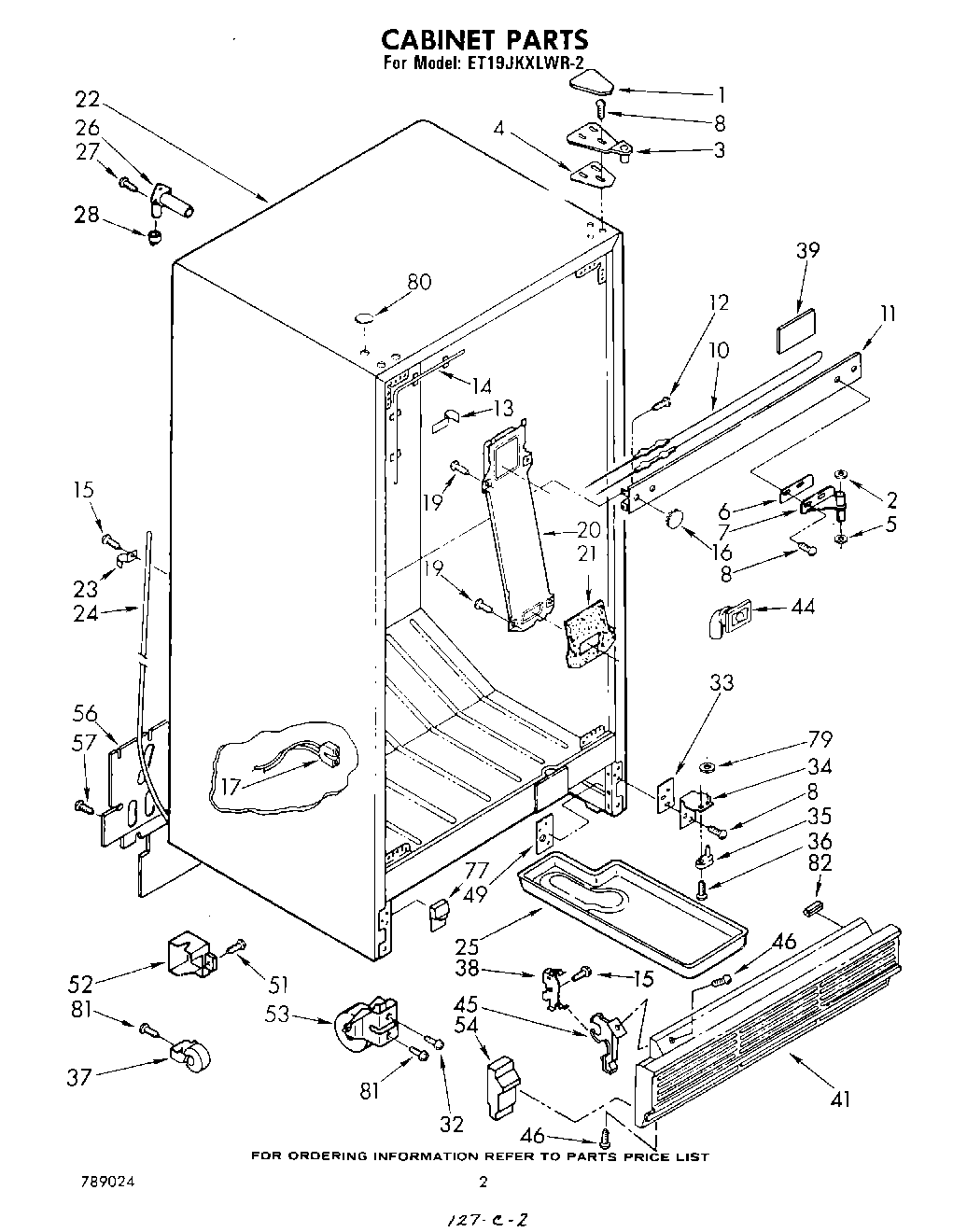

ET19JKXLWR2 02 – CABINET

ET19JKXLWR2 02 – CABINET

Written by

in

ET19JKXLWR2 02 – CABINET

Products

PositionProduct
1Hinge Cover (Golden Harvest)
11119787 Whirlpool Refrigerator Hinge Cover
1Hinge, Cover (Coffee)
1Hinge Cover (New Avocado)
2WP488296 Whirlpool Washer Refrigerator
3Hinge, Top
4Shim, Hinge
5WP487802 Whirlpool Refrigerator Washer
6Shim, Hinge Center
7Hinge, Center
8WP999367 Whirlpool Refrigerator Screw
8Screw (Repair)
10Heater, Mullion
11Center Rail (Golden Harvest)
11Center Rail (Almond)
11Center Rail (New Avocado)
11Center Rail (White)
11Center Rail (Coffee)
12Screw (Repair)
12Screw, 8 x 3/8
13WPL 935663
14WPL 936075
15W11624204 Whirlpool Screw
16Hole, Plug (Almond)
16Hole Plug (Golden Harvest)
16Hole Plug (Coffee)
16Hole Plug (New Avocado)
16Hole, Plug (White)
17WPL 548734
19WP488488 Whirlpool Refrigerator Screw
20Duct, Air
21Air Duct Outlet
22Cabinet (Not A Serviceable Part)
23WPL 836077
248316810 Whirlpool Refrigerator Drain Tube
25WPL 842041
26WP2196157 Whirlpool Fill Tube
27WP98165 Whirlpool Screw
28WP487996 Whirlpool Refrigerator Cap Tube
32Screw, 5/16-24 x 1
33Shim, Bottom Hinge
34Hinge, Bottom
35Hinge Pin, Bottom
36Screw 10-32 x 5/16
37WPW10250570 Whirlpool Refrigerator Cabinet Roller
38WPL 989068
39Seal, Strip
41Exterior, Grille (Coffee)
41Exterior, Grille (White)
41Exterior Grille (New Avocado)
41Exterior, Grille (Almond)
41Exterior, Grille (Golden Harvest)
44WPL 841687
45WP944224 Whirlpool Refrigerator Support
46WPL 489085
49Tap Plate
51WP488729 Whirlpool Refrigerator Door Screw
52WPL 549947
53Roller, Front
54WPL 836372
56WPL 850459
77Corner, Filler (
77WPL 989928
77WPL 989929
77WPL 989930
77WPL 989931
80Hole Plug (2) (Golden Harvest)
80Hole Plug (Coffee)
80Hole Plug (New Avocado)
80Hole Plug (2) (White)
80Hole Plug (2) (Almond)
81Screw, 1/4-28 x 1/2 (2)
82Bumper, Grille
