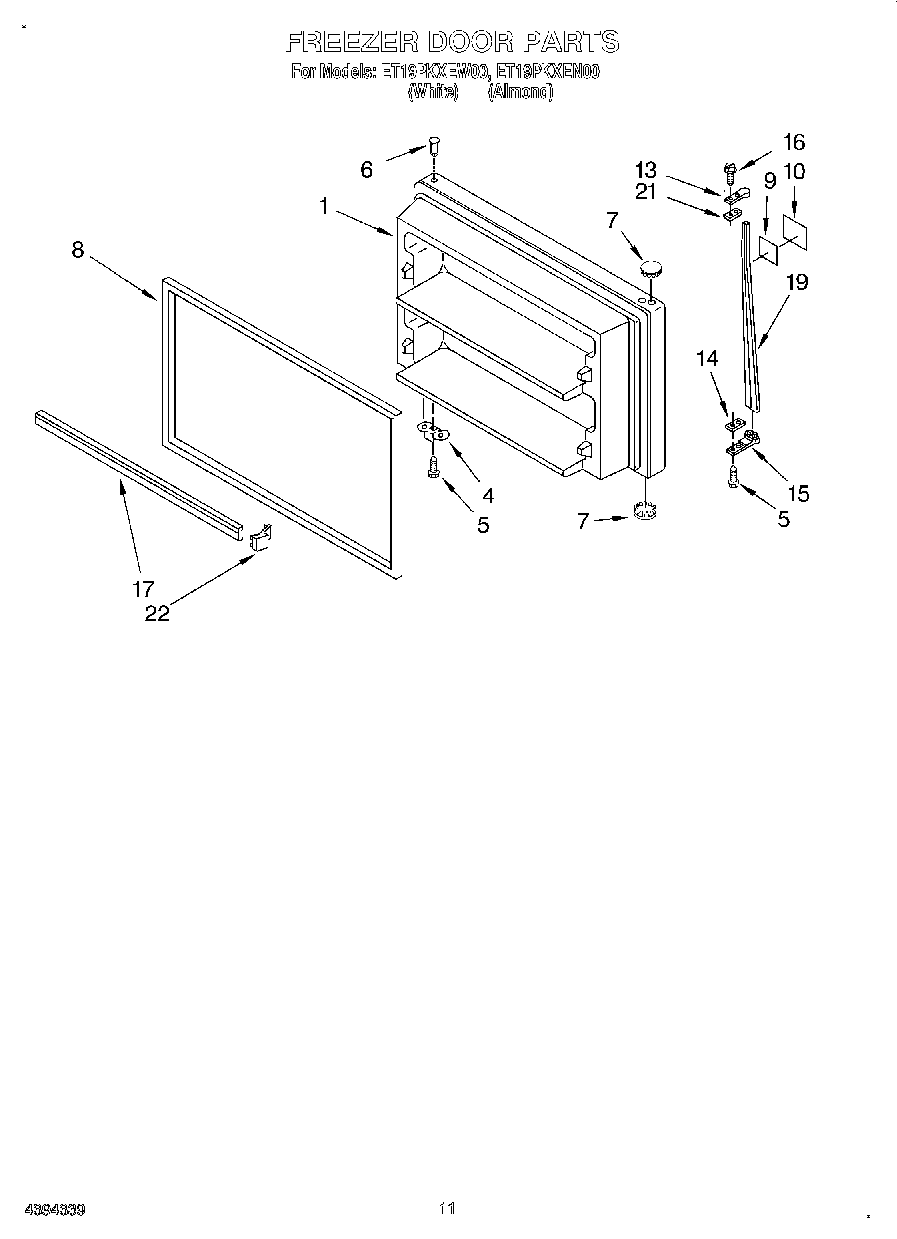

ET19PKXEN00 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	WPL LIT2184515
	WPL LIT677971
	WPL LIT2172667
	WPL LIT2184593
1	Freezer Door (Includes No.6 & No.8) (Almond)
1	Freezer Door (Includes No.6 & No.8) (White)
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2159327 Whirlpool Refrigerator Door Gasket
9	Tape Strip
10	Nameplate (White)
10	Nameplate (Almond Model)
14	Spa
15	819342 Whirlpool Refrigerator Endcap Kit
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
19	Handle, F.C. (Almond)
19	WP2162555 Whirlpool Refrigerator White Door Handle
21	Shim, Handle
22	WPL 876029
22	606755 Whirlpool Refrigerator Bag
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	212643 Whirlpool Refrigerator Permagum Sealer
22	350930 Whirlpool White Spray Paint
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	Door Reversal Instructions
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	833938 Whirlpool Refrigerator Terminal
22	876370 Whirlpool Refrigerator Insulation
22	WPL 799833
22	WPL 799832
22	285006 Whirlpool Spray
22	72032 Whirlpool Touch Up Paint Black
22	ENDCAP
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
22	TAPE, VINYL (3/4 X 108“)
22	WP542638 Whirlpool Refrigerator Grease
22	WP505587 Whirlpool Refrigerator Sealer
22	WP503695 Whirlpool Refrigerator Sealer
22	350956 Whirlpool Spray Assembly
