ET19RKXGN00 05 – SHELF, LIT/OPTIONAL

ET19RKXGN00 05 – SHELF, LIT/OPTIONAL

Written by

in

ET19RKXGN00 05 – SHELF, LIT/OPTIONAL

Products

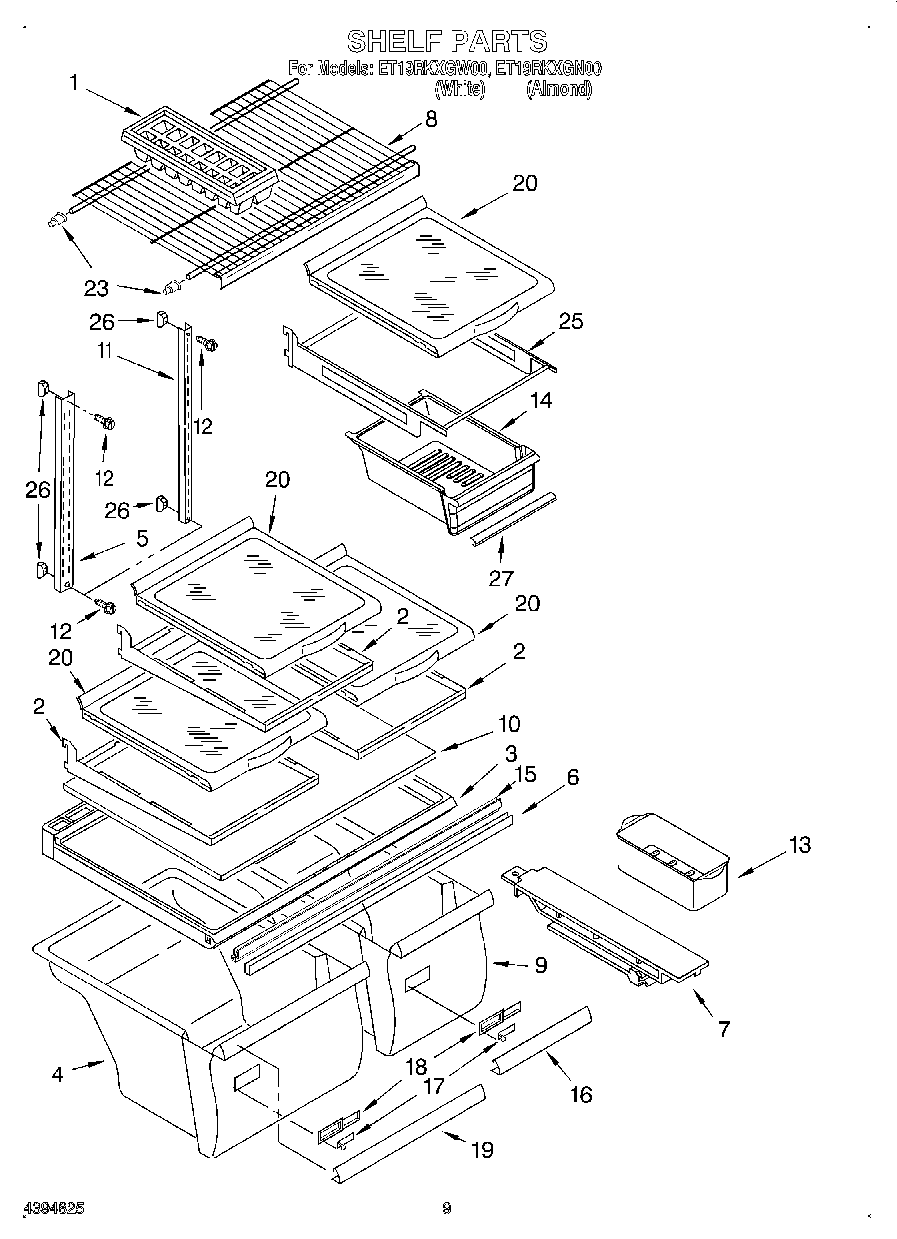

Position	Product
	Torx Key
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2199057
	WPL LIT677971
	WPL LIT2199009
	WPL LIT2195481
1	WP841180A Whirlpool Microwave Glass Turntable Tray
2	Frame Assembly, Shelf (3)
3	WP2314548 Whirlpool Refrigerator Cover
4	W10854037 Whirlpool Refrigerator Crisper Pan
5	Shelf, Ladder Center
6	WP2172748 Whirlpool Drawer Support
7	WP2163835 Whirlpool Track Assembly
8	WP2176275 Whirlpool Refrigerator Wire Shelf
9	W10856580 Whirlpool Crisper Pan
10	WP2169921 Whirlpool Refrigerator Glass Shelf
11	Shelf, Ladder (2)
12	W11544659 Whirlpool Refrigerator Screw
13	W10136387A Whirlpool Refrigerator Egg Container
14	PAN-MEAT
15	Gasket, Crisper Cover
16	Trim, Crisper Pan
17	WP2176222 Whirlpool Refrigerator Slide
18	WP2212446 Whirlpool Refrigerator Control Body
19	WP2195341 Whirlpool Refrigerator Pan Trim
20	Shelf Assembly, Spillguard
23	2163762 Whirlpool Refrigerator Cup Assembly
25	Frame Assembly, Meat Shelf
26	Support, Screw
27	Trim, Meat Pan
100	833938 Whirlpool Refrigerator Terminal
100	350956 Whirlpool Spray Assembly
100	Door Reversal Instructions
100	350930 Whirlpool White Spray Paint
100	WPL 799833
100	212643 Whirlpool Refrigerator Permagum Sealer
100	WPL 799832
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	FeaturePak (Includes 2, 13, 14, 20, 25, 44) Also See Door Page.
100	72017 Whirlpool Appliance Touch-Up Paint White
100	799344 Whirlpool Refrigerator Paint
100	WP72107 Whirlpool Touchup
100	606755 Whirlpool Refrigerator Bag
100	285006 Whirlpool Spray
100	72032 Whirlpool Touch Up Paint Black
100	511873 Whirlpool Refrigerator Paint
100	350942 Whirlpool Spray Paint
100	WPL 876029
100	876370 Whirlpool Refrigerator Insulation
100	WP503695 Whirlpool Refrigerator Sealer
100	WP505587 Whirlpool Refrigerator Sealer
100	WP542638 Whirlpool Refrigerator Grease
100	Almond (Uncut)
100	TAPE, VINYL (3/4 X 108“)
