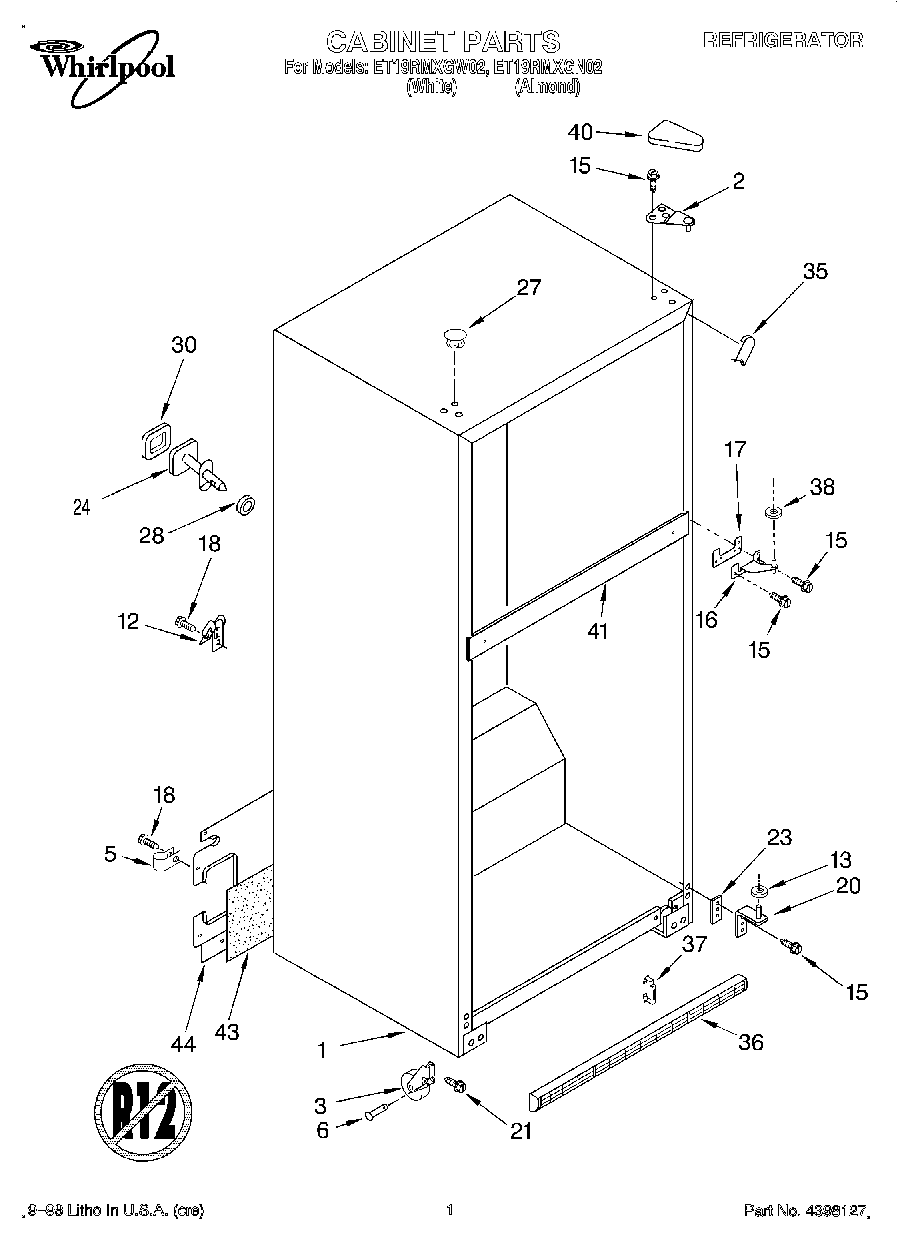

ET19RMXGN02 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
6W11594405 Whirlpool Axle
12549193 Whirlpool Refrigerator Power Clamp
13WP487576 Whirlpool Washer
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
21Screw
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Almond)
27WP2151652 Whirlpool Refrigerator Button Plug
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35Corner Filler (2) (Almond)
35WPW10283959 Whirlpool Refrigerator Filler
36WP2254386 Whirlpool Refrigerator Grille
36Grille (Almond)
37CLIP, GRILLE
38WP489467 Whirlpool Hinge Shim
40Cover, Hinge (Almond)
40WP2213360 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
43Insulation
44WP2189475 Whirlpool Refrigerator Unit Cover
