ET19RMXGW02 05 – SHELF, LIT/OPTIONAL
Written by
in

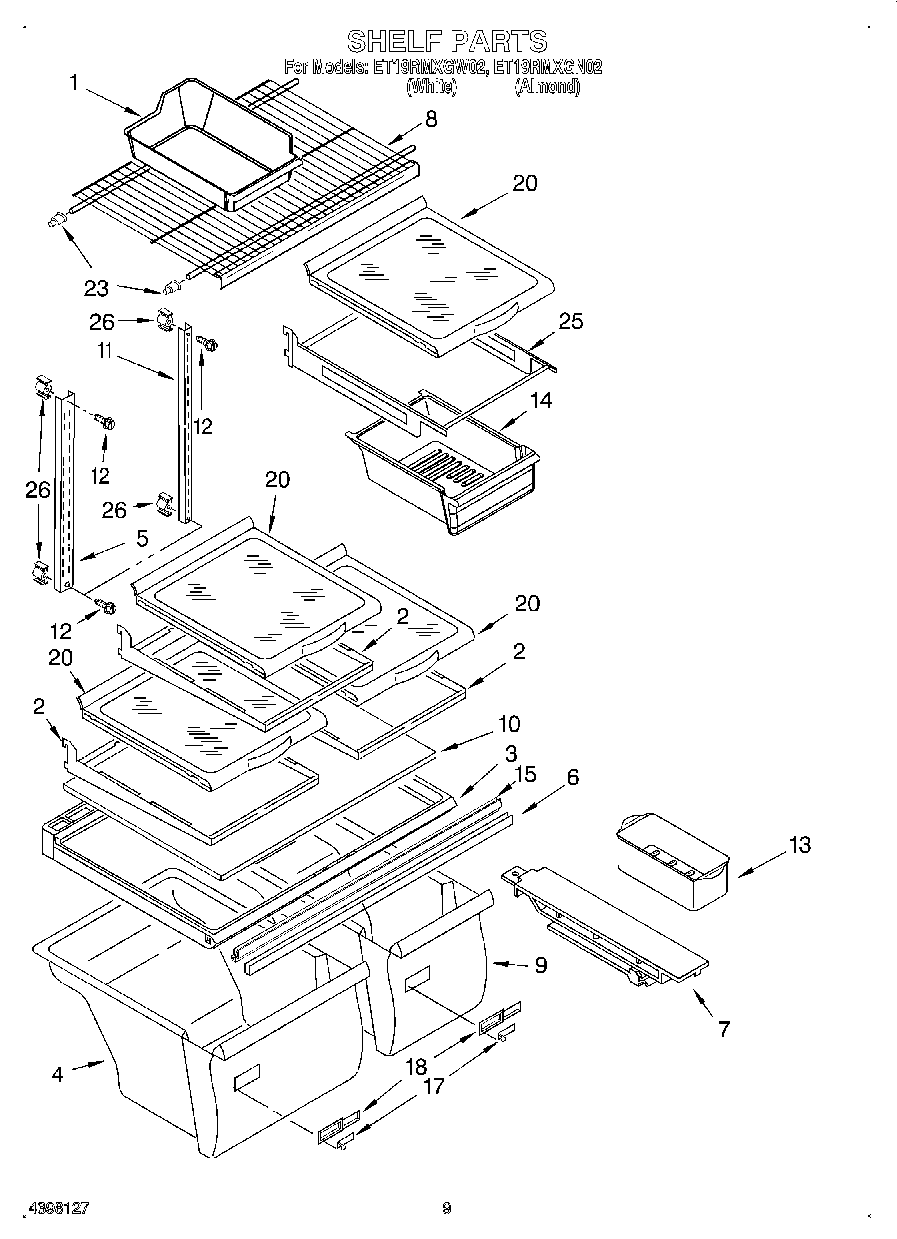

ET19RMXGW02 05 – SHELF, LIT/OPTIONAL
Products
Position
Product
Torx Key
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
WPL LIT677971
WPL LIT2199009
WPL LIT2195481
WPL LIT2200593
1
2254352A Whirlpool Refrigerator Ice Container
2
Frame Assembly, Shelf (3)
3
WP2314548 Whirlpool Refrigerator Cover
4
W10854037 Whirlpool Refrigerator Crisper Pan
5
Shelf, Ladder Center
6
WP2172748 Whirlpool Drawer Support
7
WP2163835 Whirlpool Track Assembly
8
WP2176275 Whirlpool Refrigerator Wire Shelf
9
W10856580 Whirlpool Crisper Pan
10
WP2169921 Whirlpool Refrigerator Glass Shelf
11
Shelf, Ladder (2)
12
W11544659 Whirlpool Refrigerator Screw
13
W10136387A Whirlpool Refrigerator Egg Container
14
PAN-MEAT
15
Gasket, Crisper Cover
17
WP2176222 Whirlpool Refrigerator Slide
18
WP2212446 Whirlpool Refrigerator Control Body
20
Shelf Assembly, Spillguard
23
2163762 Whirlpool Refrigerator Cup Assembly
25
Frame Assembly, Meat Shelf
26
Support, Screw
100
FeaturePak (Includes 2, 13, 14, 20, 25, 44) Also See Door Page.
100
350930 Whirlpool White Spray Paint
100
212643 Whirlpool Refrigerator Permagum Sealer
100
WP72107 Whirlpool Touchup
100
799344 Whirlpool Refrigerator Paint
100
72017 Whirlpool Appliance Touch-Up Paint White
100
350956 Whirlpool Spray Assembly
100
WP542638 Whirlpool Refrigerator Grease
100
WP505587 Whirlpool Refrigerator Sealer
100
TAPE, VINYL (3/4 X 108“)
100
CEMENT, ALUMILASTIC (1 1/4 OZ.)
100
WPL 799832
100
WP503695 Whirlpool Refrigerator Sealer
100
WPL 876029
100
876370 Whirlpool Refrigerator Insulation
100
833938 Whirlpool Refrigerator Terminal
100
606755 Whirlpool Refrigerator Bag
100
511873 Whirlpool Refrigerator Paint
100
350942 Whirlpool Spray Paint
100
Almond (Uncut)
100
285006 Whirlpool Spray
100
72032 Whirlpool Touch Up Paint Black
100
WPL 799833
100
Door Reversal Instructions
←
