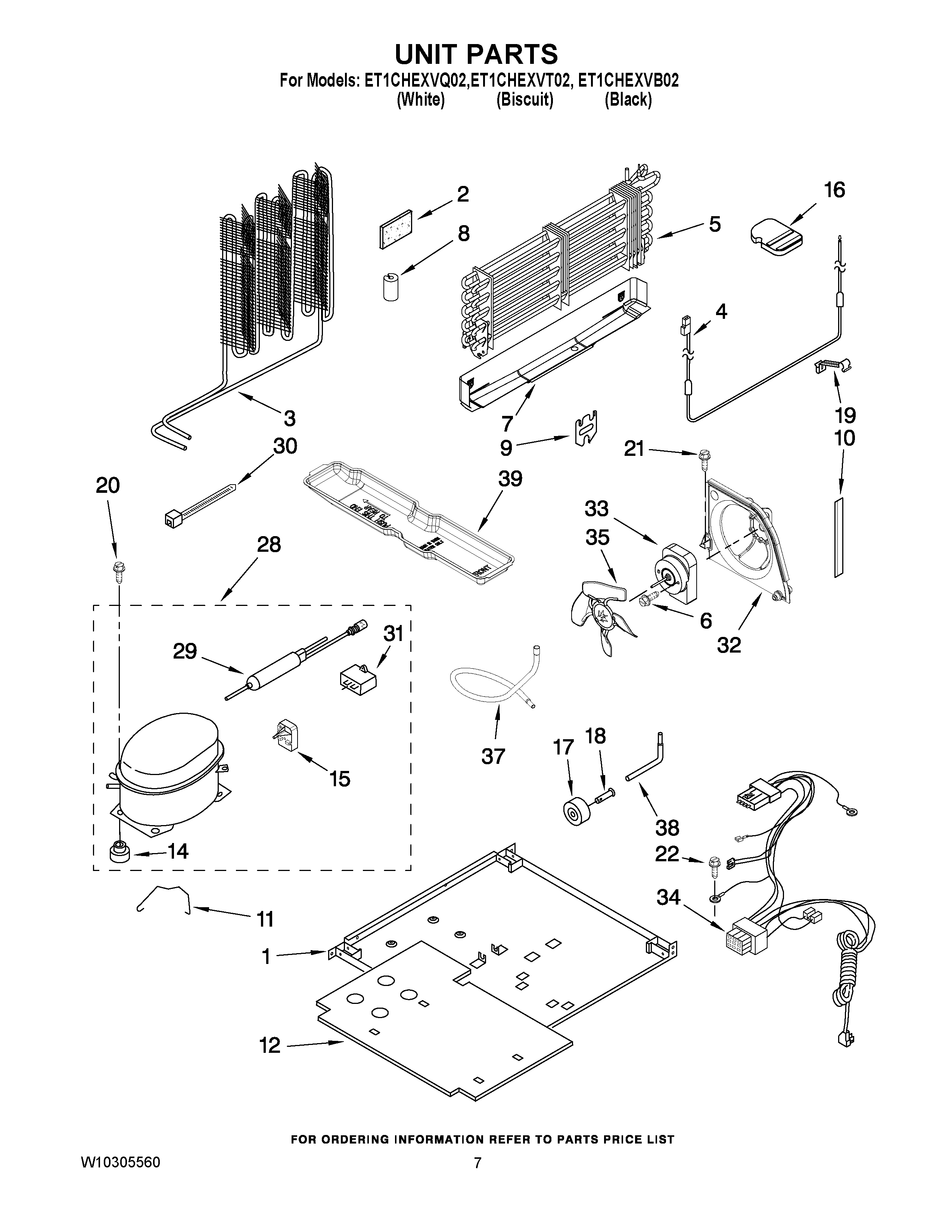

ET1CHEXVQ02 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	CONDENSER
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	W10852725 Whirlpool Refrigerator Grommet
9	Bracket, Heater
10	Extension, Air Baffle
11	W11661170 Whirlpool Clip
12	Insulation
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WPW10194431 Whirlpool Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	3400518 Whirlpool Oven Foot Mount Screw
22	WP489128 Whirlpool Refrigerator Screw
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	WP2315541 Whirlpool Refrigerator Air Baffle
33	WP2188874 Whirlpool Refrigerator Condenser Motor
34	2187382 Whirlpool Refrigerator Wire Harness
35	W11458267 Whirlpool Refrigerator Fan Blade
37	Tube, Suction
38	W10274306 Whirlpool Refrigerator Tube
39	WP2254574 Whirlpool Refrigerator Evaporator Tray
