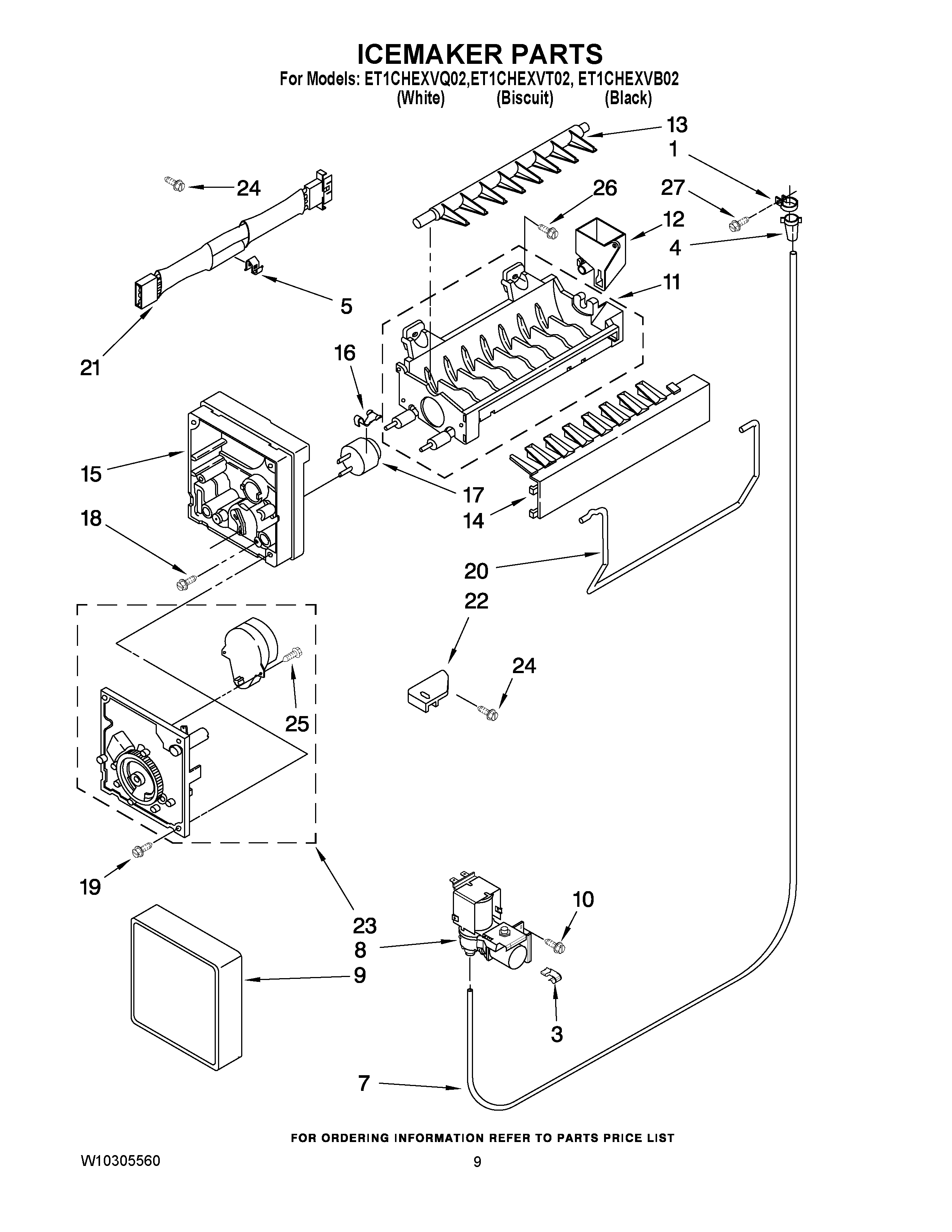

ET1CHEXVQ02 05 – ICEMAKER PARTS

ET1CHEXVQ02 05 – ICEMAKER PARTS

Written by

in

ET1CHEXVQ02 05 – ICEMAKER PARTS

Products

PositionProduct
1WP488878 Whirlpool Refrigerator Tube Clamp
32210495 Whirlpool Refrigerator Clip
44387491 Whirlpool Refrigerator Insert
5WP628379 Whirlpool Refrigerator Clip
7W10823511 Whirlpool Refrigerator Water Tube
8VALVE-INLT
9WPW10289690 Whirlpool Ice Maker Cover
10WP489442 Whirlpool Refrigerator Screw
11WPW10190929 Whirlpool Refrigerator Ice Maker Mold
12W10122561 Whirlpool Refrigerator Cup Fill
13WP627843 Whirlpool Refrigerator Ejector Arm
14WPW10122563 Whirlpool Refrigerator Stripper Arm
15WP2195914 Whirlpool Refrigerator Ice Maker Housing
16WP2315522 Whirlpool Refrigerator Clip
17WP627985 Whirlpool Icemaker Cycling Thermostat
188533917 Whirlpool Refrigerator Screw
19WP681249 Whirlpool Screw Assembly
20WP627792 Whirlpool Refrigerator Shut Off Arm
21WP2187464 Whirlpool Refrigerator Wire Harness
22W11500948 Whirlpool Refrigerator Bracket
238201515 Whirlpool Refrigerator Motor and Gear Module Kit
24WP489478 Whirlpool Refrigerator Screw
25489136 Whirlpool Refrigerator Screw
26WP488163 Whirlpool Refrigerator Screw
27WP488787 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
