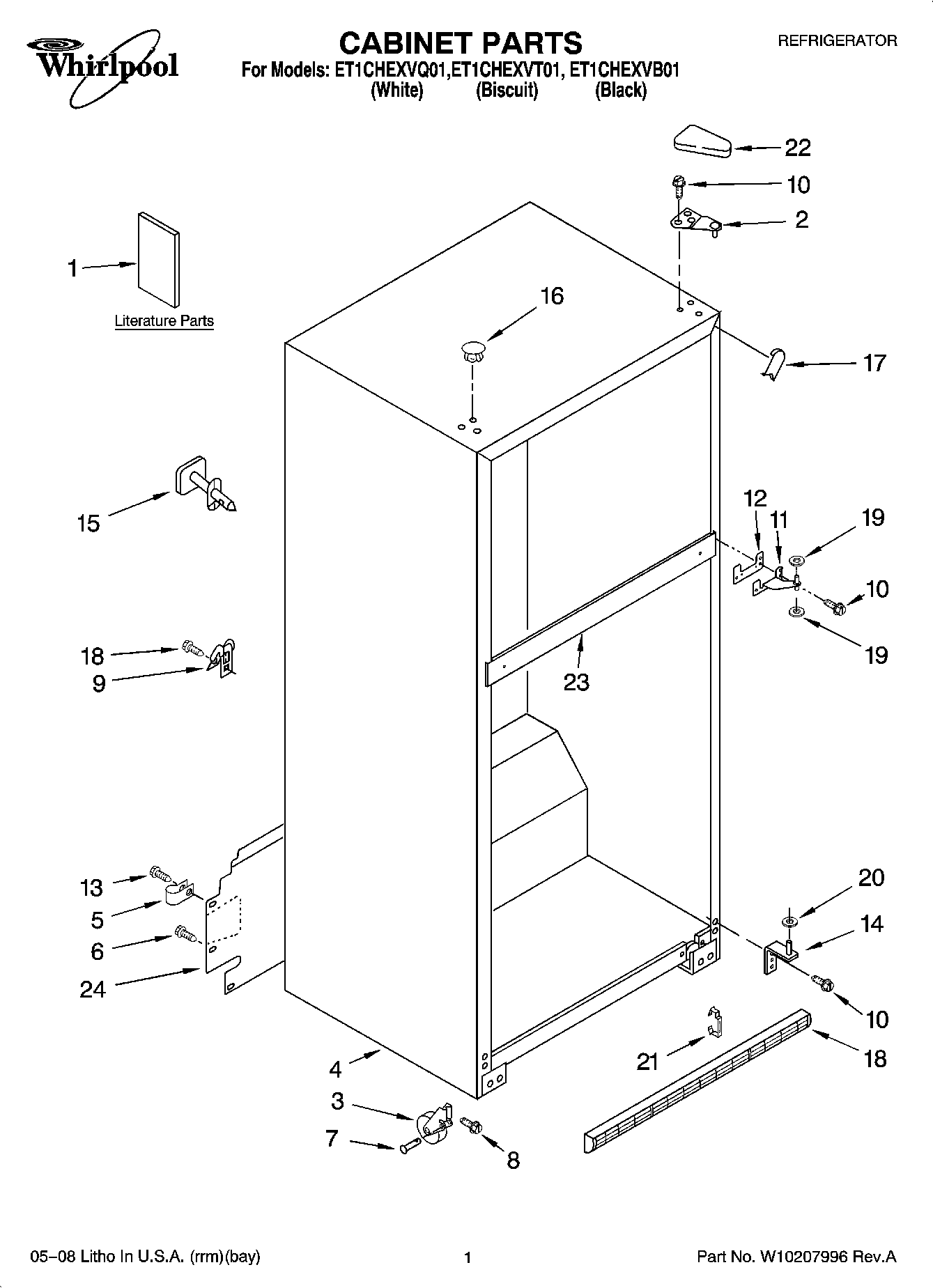

ET1CHEXVT01 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Modular Icemaker Service Sheet
1	Use & Care Guide (Bilingual)
1	Use & Care Guide (Trilingual)
1	Energy Label
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Cabinet, (Not A Serviceable Part)
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
8	WP3400504 Whirlpool Refrigerator Screw
9	549193 Whirlpool Refrigerator Power Clamp
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183852 Whirlpool Refrigerator Shim
13	WP489464 Whirlpool Refrigerator Screw
14	WP2254473 Whirlpool Refrigerator Door Hinge
15	Fitting, Water Tube (Not Serviced)
16	Hole Plug (6) (Biscuit)
16	WP2151652 Whirlpool Refrigerator Button Plug
16	WP2183998 Whirlpool Refrigerator Button Plug
17	WPW10283959 Whirlpool Refrigerator Filler
17	W10283958 Whirlpool Refrigerator Filler
17	W11252732 Whirlpool Refrigerator Filler
18	GRILLE (INCLUDES ILLUS. 19) (BLACK)
18	Grille (White)
18	Grille (Biscuit)
19	WP489467 Whirlpool Hinge Shim
20	WP487576 Whirlpool Washer
21	CLIP, GRILLE
22	2213364 Whirlpool Refrigerator Cover
22	WP2213360 Whirlpool Refrigerator Cover
22	WP2213363 Whirlpool Refrigerator Cover
23	Rail, Center (Not Serviced)
24	Cover, Unit
