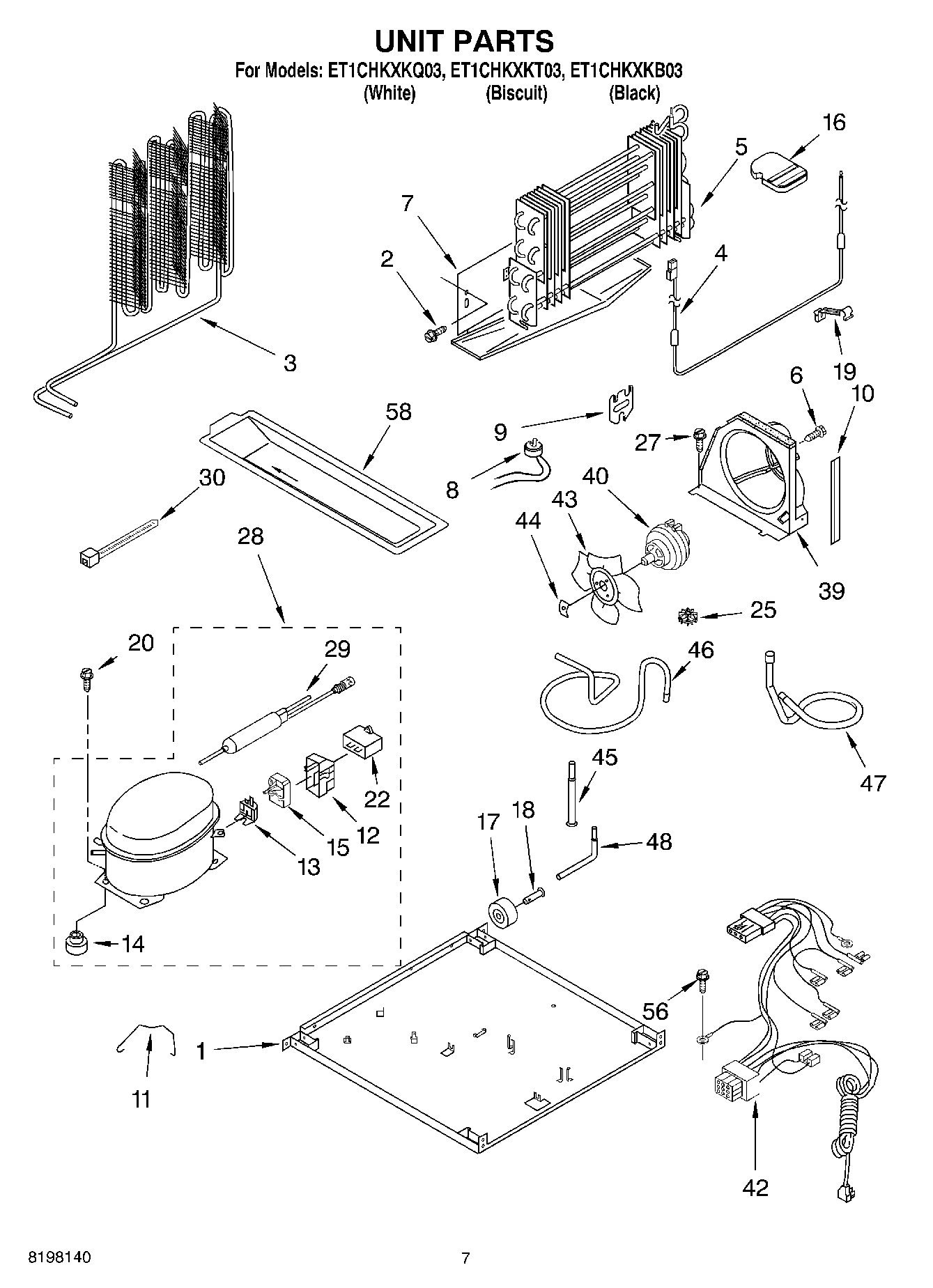

ET1CHKXKB03 04 – UNIT

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315530 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
8WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9Bracket, Heater
10Extension, Air Baffle
112212996 Whirlpool Refrigerator Retainer
12WP2162358 Whirlpool Refrigerator Terminal Cover
134387913 Whirlpool Refrigerator Primary Overload Relay
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2225929 Whirlpool Refrigerator Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
22WP4387764 Whirlpool Run Capacitor
22WPW10662129 Whirlpool Refrigerator Run Capacitor
25Grommet
273400518 Whirlpool Oven Foot Mount Screw
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
39Air Baffle
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy. Unit
43Blade, Fan
44WP486692 Whirlpool Refrigerator Nut
45Tube, Transition
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
56WP489128 Whirlpool Refrigerator Screw
58978030 Whirlpool Refrigerator Valve
58VALVE, ACCESS (5/8“)
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
58876764 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58Evaporator Tray
58978027 Whirlpool Refrigerator Primary Valve
