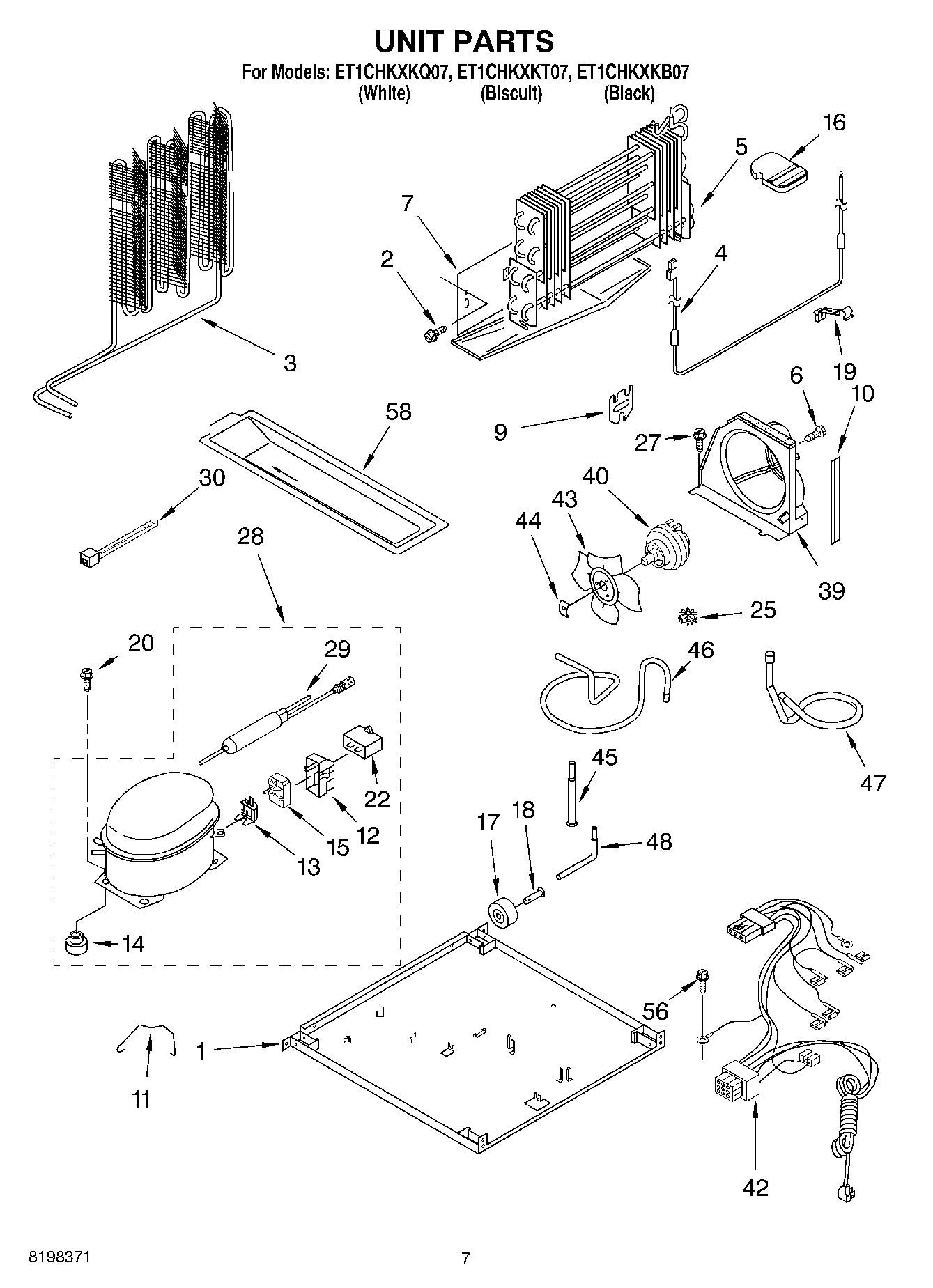

ET1CHKXKB07 04 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP489478 Whirlpool Refrigerator Screw
3	WP2214960 Whirlpool Refrigerator Condenser
4	WP2315530 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WP8281196 Whirlpool Screw
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
11	Strap
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	4387913 Whirlpool Refrigerator Primary Overload Relay
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	8201647 Whirlpool Refrigerator Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
22	WP4387764 Whirlpool Run Capacitor
22	WPW10662129 Whirlpool Refrigerator Run Capacitor
25	Grommet
27	3400518 Whirlpool Oven Foot Mount Screw
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
39	Air Baffle
40	W10822259 Whirlpool Refrigerator Condenser Fan Motor
42	Wire Assy. Unit
43	Blade, Fan
44	WP486692 Whirlpool Refrigerator Nut
45	Tube, Transition
46	2205533 Whirlpool Refrigerator Tube
47	2214924 Whirlpool Refrigerator Tube
48	2154109 Whirlpool Refrigerator Tube
56	WP489128 Whirlpool Refrigerator Screw
58	978026 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (5/8“)
58	VALVE, ACCESS (1/2“)
58	WP978025 Whirlpool Refrigerator Valve
58	Evaporator Tray
58	876764 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
