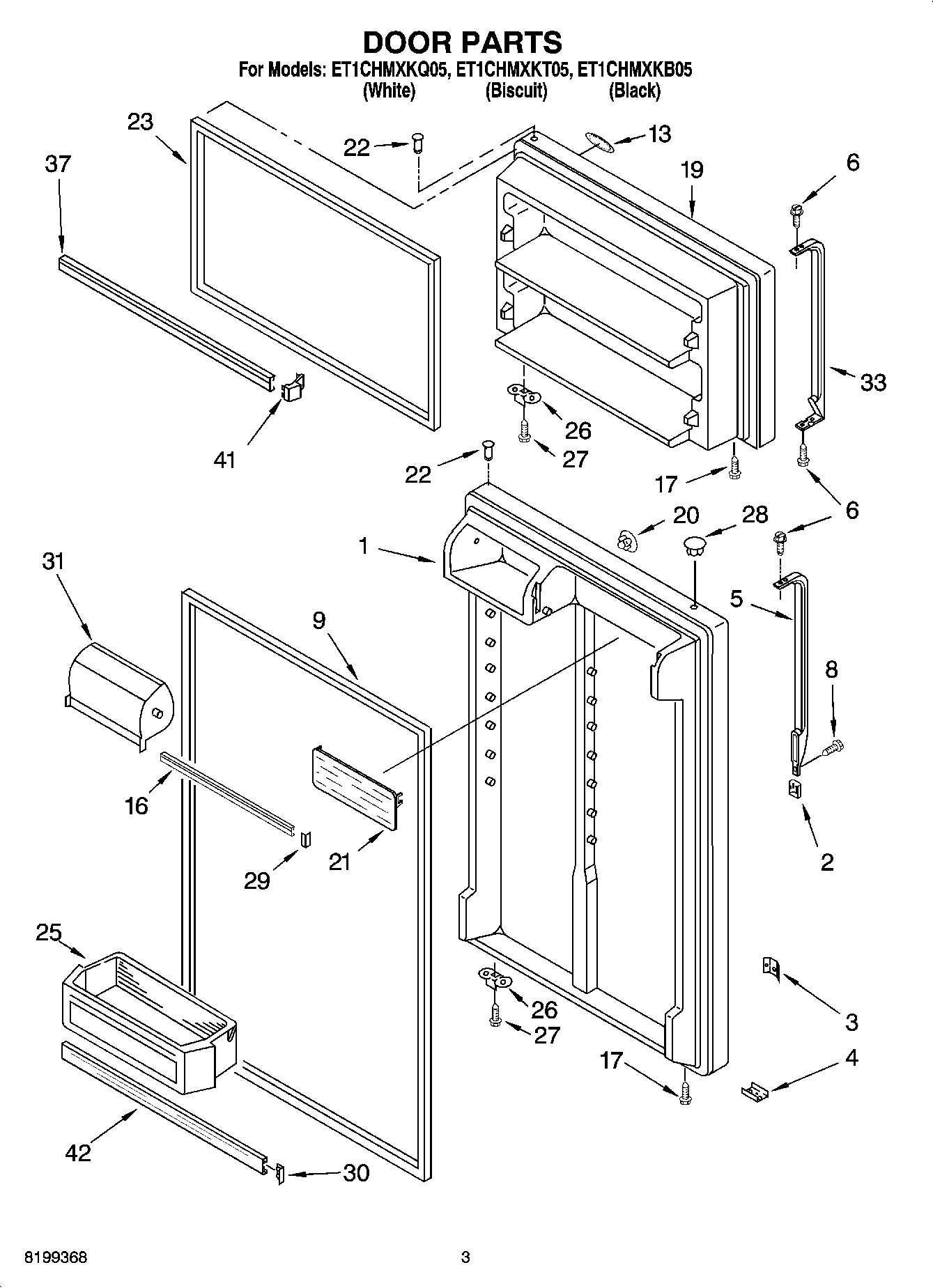

ET1CHMXKQ05 02 – DOOR PARTS

Products

Position	Product
2	WP2193353W Whirlpool Refrigerator Trim Handle
2	Cover, Trim (Black)
2	Cover, Trim (Biscuit)
3	WP939101 Whirlpool Refrigerator Plate
4	W10833053 Whirlpool Refrigerator Plate
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2177311 Whirlpool Refrigerator Magnetic Door Gasket
9	2159061 Whirlpool Refrigerator Door Gasket
13	WP2213265 Whirlpool Refrigerator Nameplate
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
19	W11023688 Whirlpool Refrigerator Door Assembly
19	W11023679 Whirlpool Refrigerator Door Assembly
19	W11023687 Whirlpool Refrigerator Door Assembly
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	WP2189009 Whirlpool Refrigerator Handle Plug
20	WP2200936 Whirlpool Refrigerator Handle Plug
21	WP2188236 Whirlpool Refrigerator Shelf Door
22	WP2183003 Whirlpool Thimble
23	2177310 Whirlpool Refrigerator Door Gasket
23	WHITE DOOR GASKET-FIP
25	WP2204812 Whirlpool Refrigerator Door Bin
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	WP2212651 Whirlpool Refrigerator Button Plug
28	WP2212649 Whirlpool Refrigerator Button Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218118 Whirlpool Refrigerator Door Compressor
33	4388949 Whirlpool Refrigerator Handle
33	4388950 Whirlpool Refrigerator Handle
33	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
37	Trim, Door Shelf (2)
41	ENDCAP
42	WPW10421486 Whirlpool Refrigerator Door Trim
