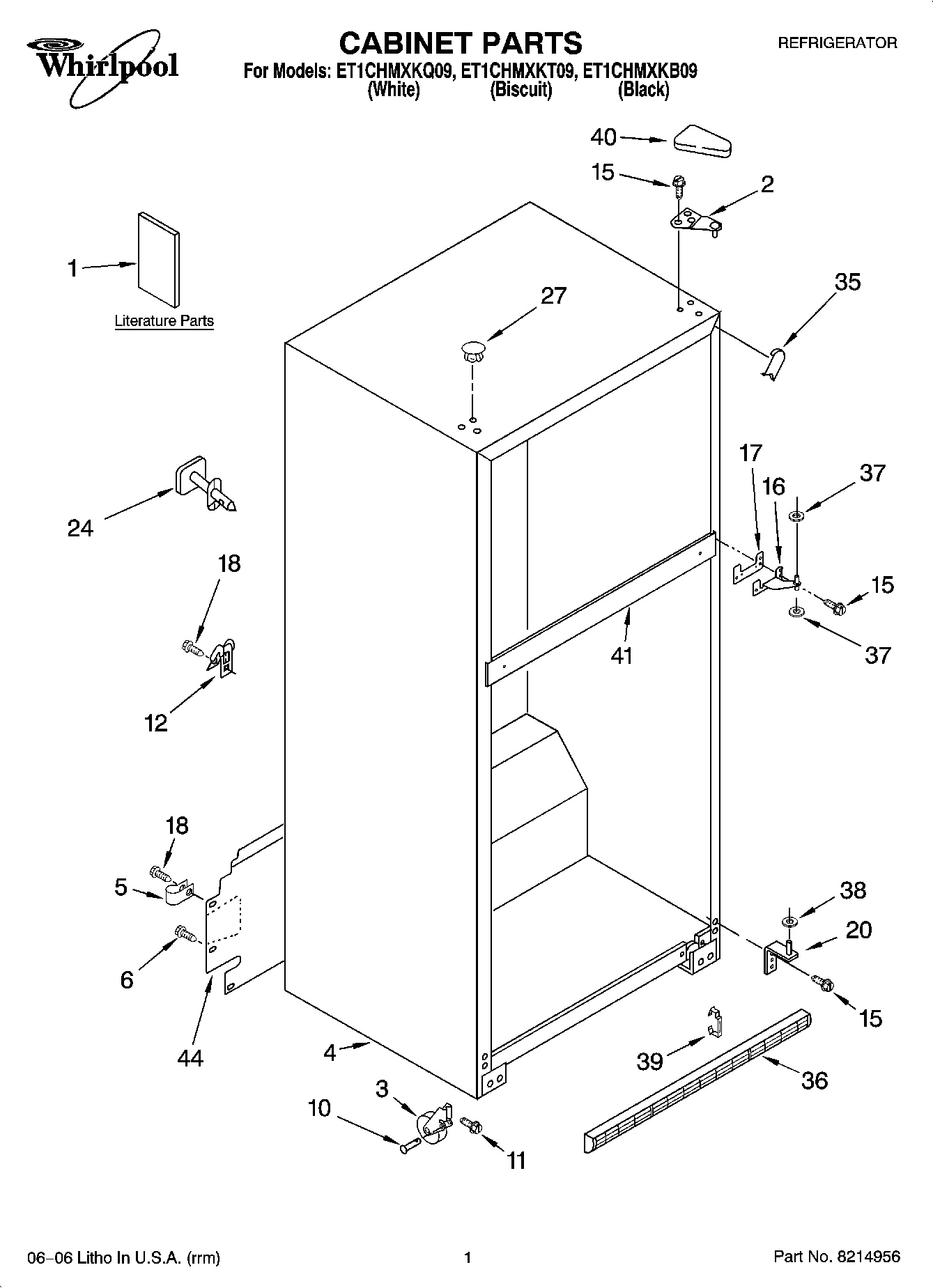

ET1CHMXKQ09 01 – CABINET PARTS

Products

PositionProduct
1Modular Icemaker Service Sheet
1Use & Care Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Service & Wiring Sheet
1Energy Label
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4Cabinet, (Not A Serviceable Part)
5WP488366 Whirlpool Refrigerator Clamp
6WP489427 Whirlpool Refrigerator Screw
10W11594405 Whirlpool Axle
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Biscuit)
27WP2151652 Whirlpool Refrigerator Button Plug
27WP2183998 Whirlpool Refrigerator Button Plug
35W11252732 Whirlpool Refrigerator Filler
35W10283958 Whirlpool Refrigerator Filler
35WPW10283959 Whirlpool Refrigerator Filler
36GRILLE (INCLUDES ILLUS. 19) (BLACK)
36Grille (White)
36Grille (Biscuit)
37WP489467 Whirlpool Hinge Shim
38WP487576 Whirlpool Washer
39CLIP, GRILLE
402213364 Whirlpool Refrigerator Cover
40WP2213360 Whirlpool Refrigerator Cover
40WP2213363 Whirlpool Refrigerator Cover
41Rail, Center (Not Serviced)
44Cover, Unit
