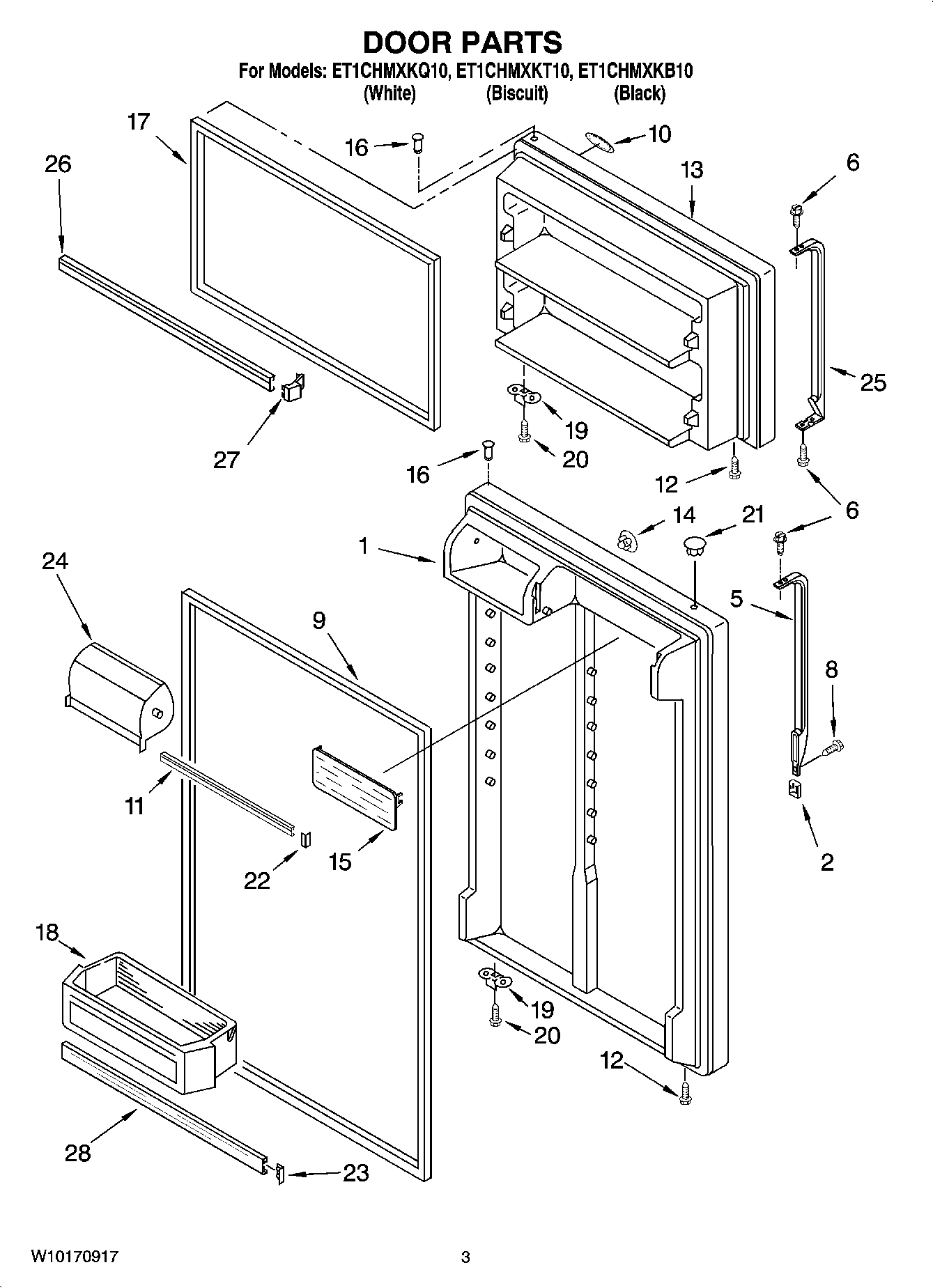

ET1CHMXKT10 02 – DOOR PARTS

Products

Position	Product
2	WP2193353W Whirlpool Refrigerator Trim Handle
2	Cover, Trim (Black)
2	Cover, Trim (Biscuit)
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2177311 Whirlpool Refrigerator Magnetic Door Gasket
9	2159061 Whirlpool Refrigerator Door Gasket
10	WP2213265 Whirlpool Refrigerator Nameplate
11	TRIM-DOOR
12	WP8281206 Whirlpool Refrigerator Screw
13	W11023679 Whirlpool Refrigerator Door Assembly
13	W11023688 Whirlpool Refrigerator Door Assembly
13	W11023687 Whirlpool Refrigerator Door Assembly
14	WP2200936 Whirlpool Refrigerator Handle Plug
14	WP2189009 Whirlpool Refrigerator Handle Plug
14	WP2189000 Whirlpool Refrigerator Handle Plug
15	WP2188236 Whirlpool Refrigerator Shelf Door
16	WP2314293 Whirlpool Refrigerator Thimble
17	2177310 Whirlpool Refrigerator Door Gasket
17	WHITE DOOR GASKET-FIP
18	WP2204812 Whirlpool Refrigerator Door Bin
19	W11745278 Whirlpool Bracket
20	WP681249 Whirlpool Screw Assembly
21	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
21	WP2212649 Whirlpool Refrigerator Button Plug
21	WP2212651 Whirlpool Refrigerator Button Plug
22	ENDCAP-TRM
23	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
24	WP2218118 Whirlpool Refrigerator Door Compressor
25	4388950 Whirlpool Refrigerator Handle
25	4388949 Whirlpool Refrigerator Handle
25	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
26	Trim, Door Shelf (2)
27	ENDCAP
28	WPW10421486 Whirlpool Refrigerator Door Trim
