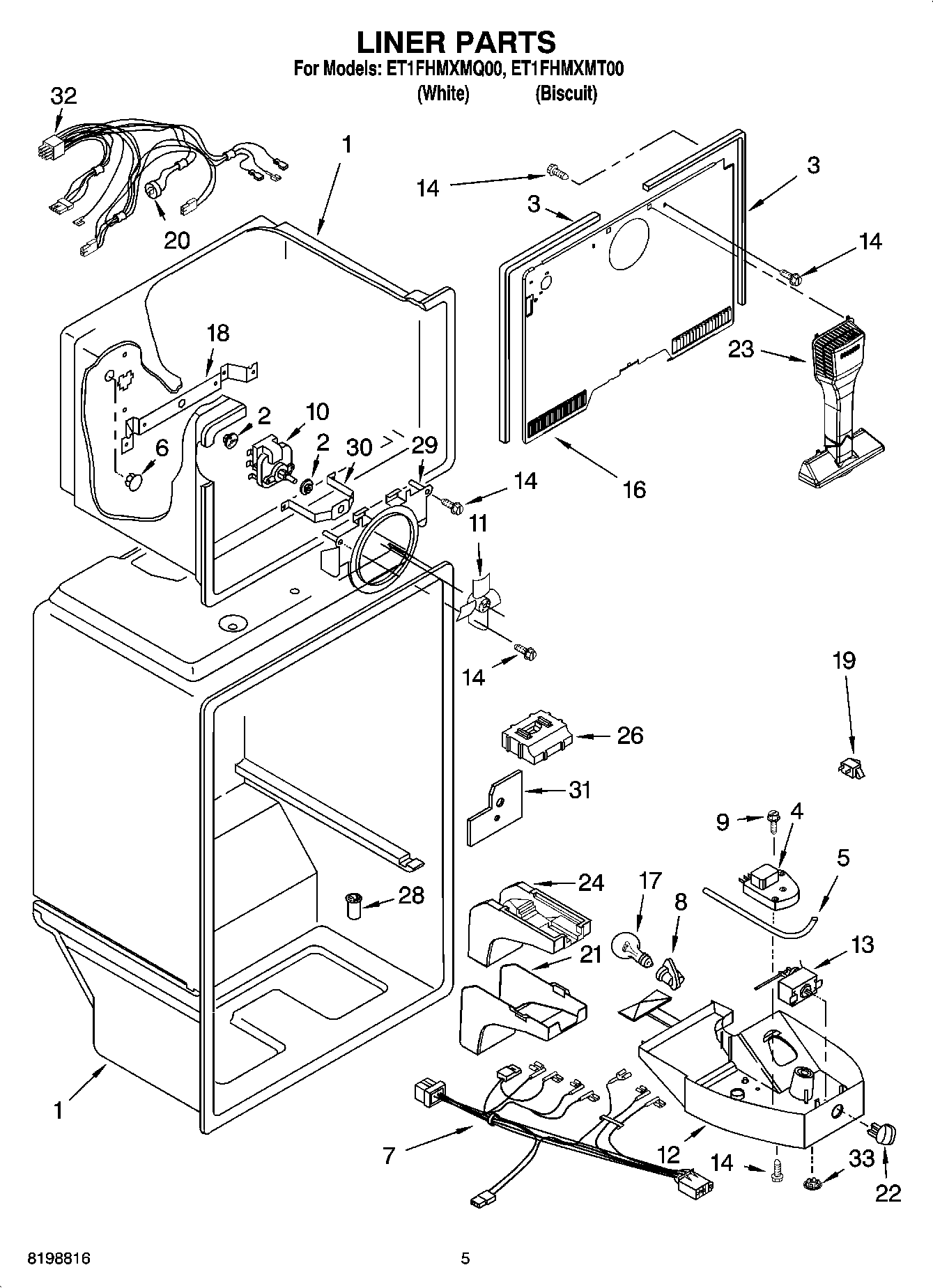

ET1FHMXMT00 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Defrost Timer
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	WP98129 Whirlpool Screw
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	WP2204605 Whirlpool Refrigerator Thermostat
14	WP489478 Whirlpool Refrigerator Screw
16	Cover, Evaporator
17	W10887190 Whirlpool Refrigerator Light Bulb
18	Bracket, Evap. Fan, Rear
19	W11384469 Whirlpool Door Switch
20	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
21	Cover, Air Diffuser
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
26	AIR SEPARATOR ASSEMBLY
28	WP2210509 Whirlpool Refrigerator Tub Valve
29	Bracket, Fan Motor
30	Bracket, Evap. Fan, Front
31	Shield, heat
32	Wire Assembly Fzr. Compartment (Includes Item 25)
33	940014 Whirlpool Refrigerator Primary Button Plug
