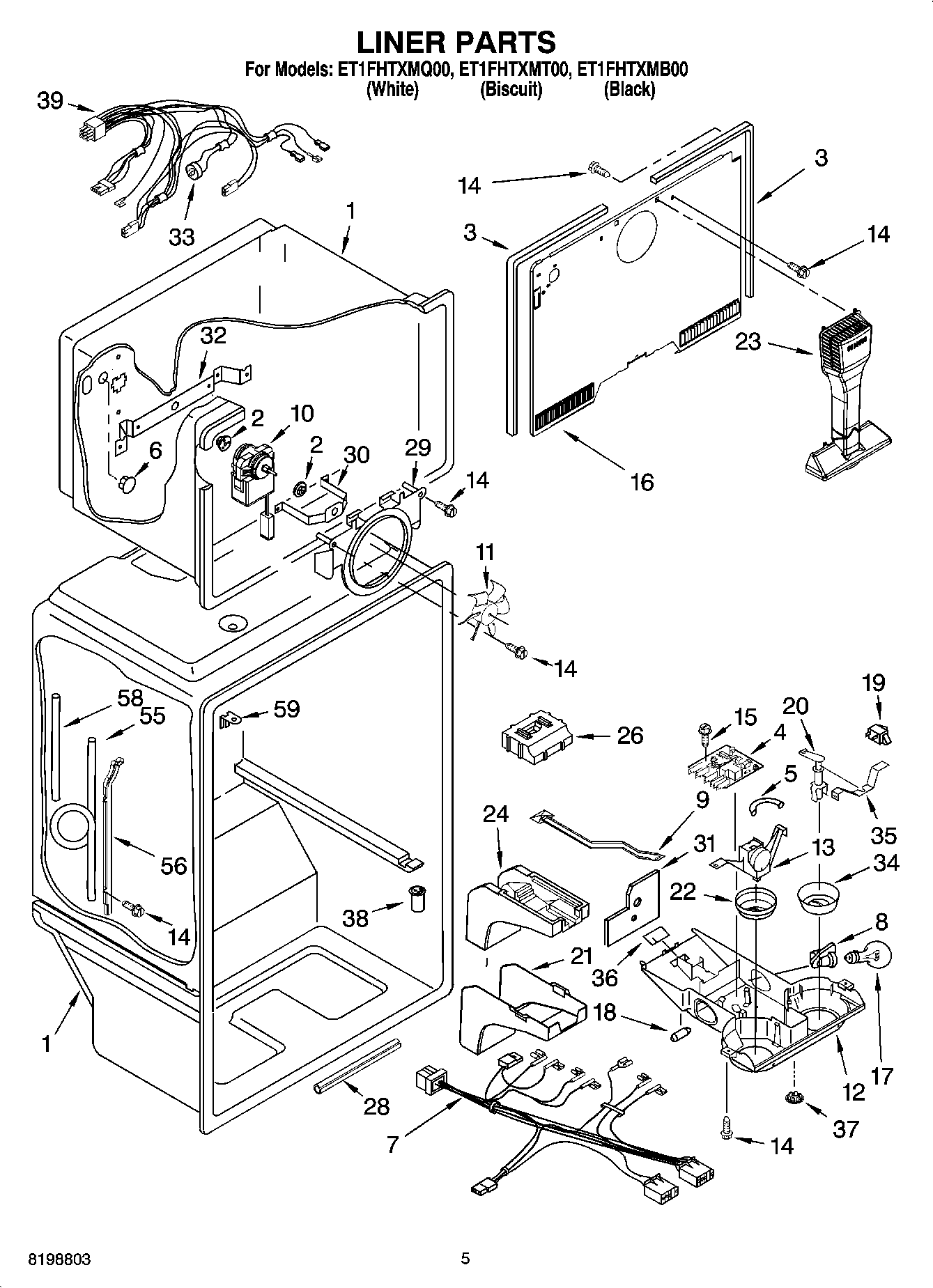

ET1FHTXMQ00 03 – LINER PARTS

ET1FHTXMQ00 03 – LINER PARTS

Written by

in

ET1FHTXMQ00 03 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5Thermostat Tube Barrier
6WP941839 Whirlpool Refrigerator Button Plug
7Wire Assembly, Control Box
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Items 5, 18 & 36)
14WP489478 Whirlpool Refrigerator Screw
15WP98129 Whirlpool Screw
16Cover, Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Post, Damper
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
26AIR SEPARATOR ASSEMBLY
28Insulation, Water Tube
29Bracket, Fan Motor
30Bracket, Evap. Fan, Front
31Shield, heat
32Bracket, Evap. Fan, Rear
33WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34Knob, Damper
35Bracket, Damper Knob
36WP2205079 Whirlpool Refrigerator Seal
37940014 Whirlpool Refrigerator Primary Button Plug
38WP2210509 Whirlpool Refrigerator Tub Valve
39Wire Assembly, Freezer Compartment
558201597 Whirlpool Inlet Water Fill Tube Kit Filter
56Cover, Tubing
58Tube, Water Filter
59Clip, Retainer
