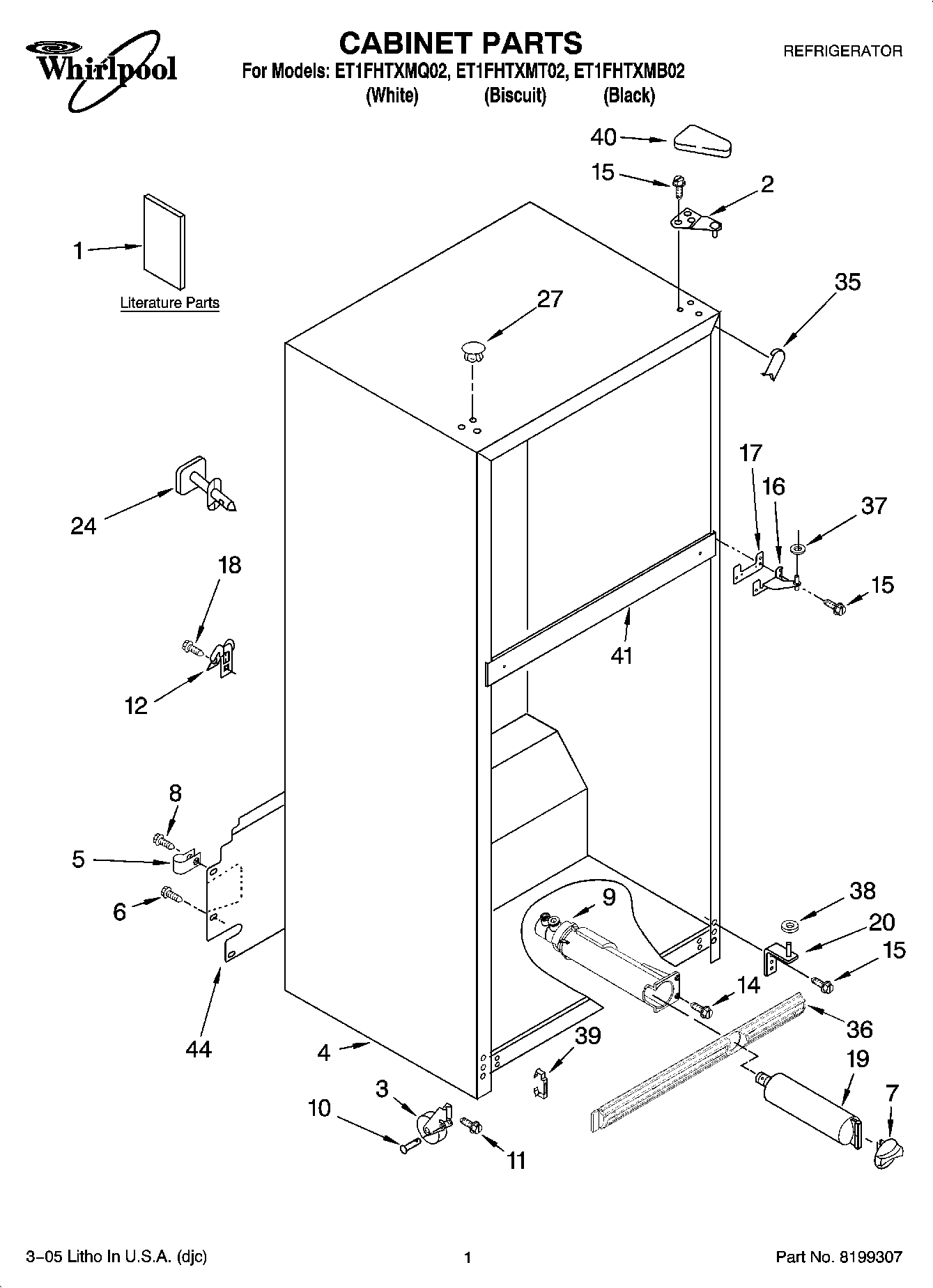

ET1FHTXMQ02 01 – CABINET PARTS

ET1FHTXMQ02 01 – CABINET PARTS

Written by

in

ET1FHTXMQ02 01 – CABINET PARTS

Products

Position	Product
1	Customer Instruct Sheet, Wtr Filter
1	Use & Care Guide
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Customer Instructions
1	Modular Icemaker Service Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Energy Label
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Cabinet (Not A Serviceable Part)
5	WP488366 Whirlpool Refrigerator Clamp
7	WP2186494T Whirlpool Water Filter Cap
7	WP2186494B Whirlpool Refrigerator Filter Cap
7	WP2186494W Whirlpool Water Filter Cap
8	WP488787 Whirlpool Refrigerator Screw
9	WP2225521 Whirlpool Water Filter Housing
10	W11594405 Whirlpool Axle
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
14	SCREW
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
19	EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
20	WP2254473 Whirlpool Refrigerator Door Hinge
24	Fitting, Water Tube (Not Serviced)
27	WP2151652 Whirlpool Refrigerator Button Plug
27	WP2183998 Whirlpool Refrigerator Button Plug
27	Hole Plug (6) (Biscuit)
35	W10283958 Whirlpool Refrigerator Filler
35	WPW10283959 Whirlpool Refrigerator Filler
35	W11252732 Whirlpool Refrigerator Filler
36	Grille (Includes Illus. 27) (Black)
36	Grille (Includes Illus. 39) (Biscuit)
36	Grille (Includes Illus. 27) (White)
37	WP489467 Whirlpool Hinge Shim
38	WP487576 Whirlpool Washer
39	CLIP, GRILLE
40	2213364 Whirlpool Refrigerator Cover
40	WP2213360 Whirlpool Refrigerator Cover
40	WP2213363 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
44	Cover, Unit
