ET1FHTXMQ02 07 – WATER DISPENSER PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
Parts Not Illustrated and Optional Par
WPL ARI46348A3
WPL ARI46349A2
Torx Key
WP542638 Whirlpool Refrigerator Grease
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
WPL ARI46350A3
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
511873 Whirlpool Refrigerator Paint
876370 Whirlpool Refrigerator Insulation
606755 Whirlpool Refrigerator Bag

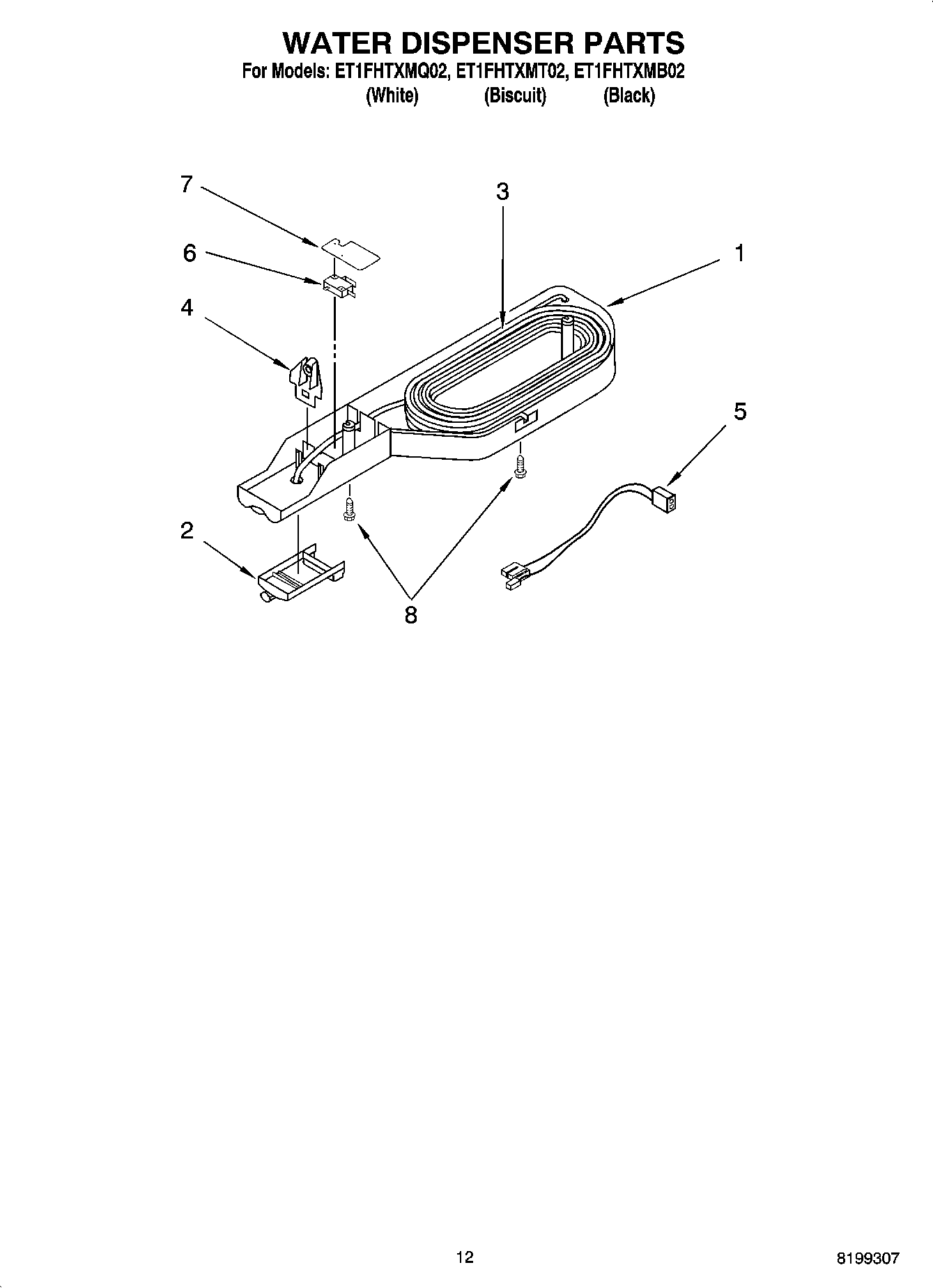

1Housing, Dispenser
2Button, Dispenser
3Reservoir, Tube
4Flange, Tube
5Wire Assembly
6WP2162361 Whirlpool Switch
7Shield, Switch
8W11544659 Whirlpool Refrigerator Screw
