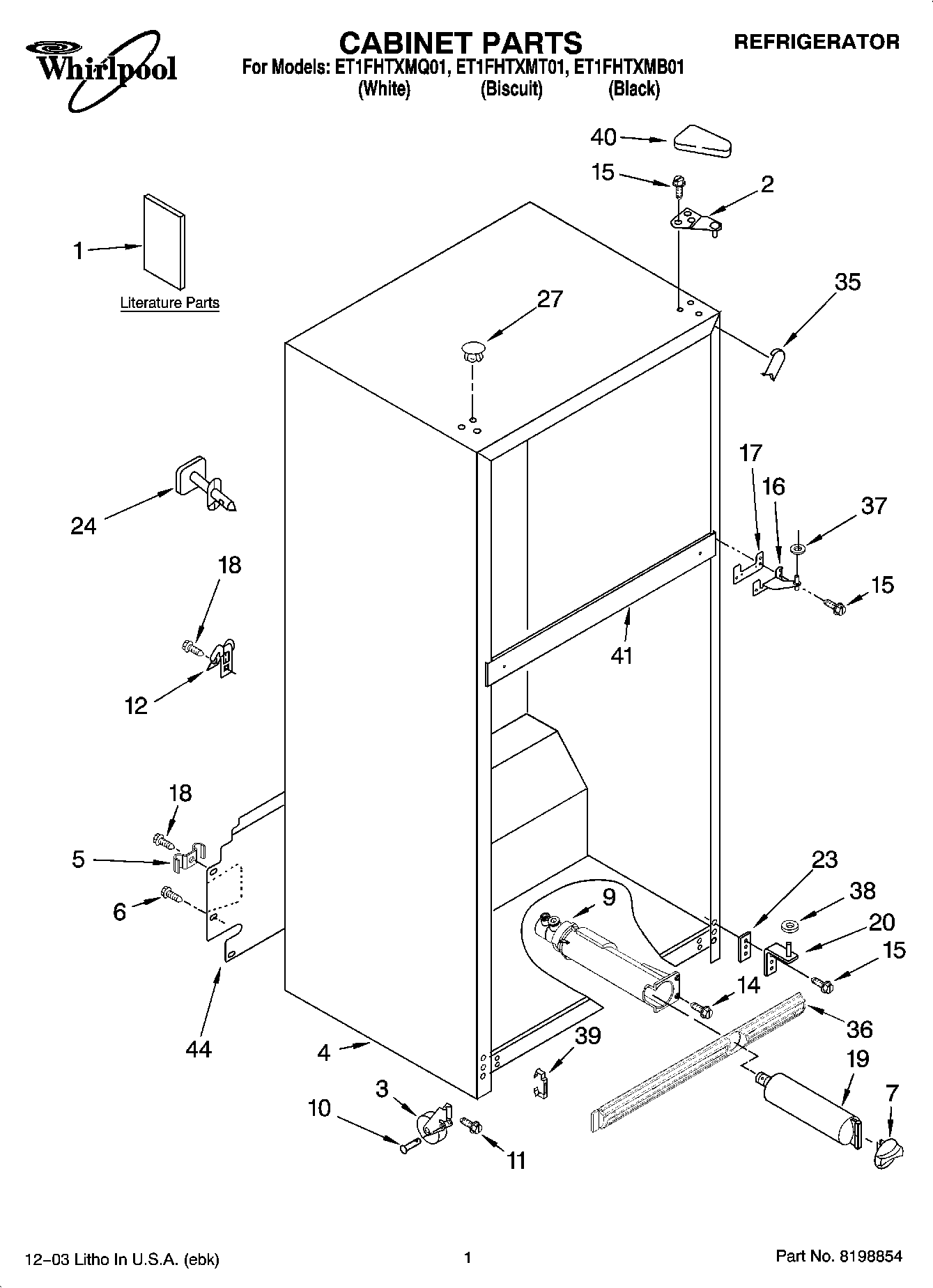

ET1FHTXMT01 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Service & Wiring Sheet)
1	Modular Icemaker Service Sheet
1	Literature Parts (Instruction Sheet, Water Filter)
1	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	Literature Parts (Customer Instructions)
1	Literature Parts (Energy Label)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Cabinet (Not A Serviceable Part)
5	Clamp, Tube (Water Supply Line)
7	WP2186494B Whirlpool Refrigerator Filter Cap
7	WP2186494W Whirlpool Water Filter Cap
7	WP2186494T Whirlpool Water Filter Cap
9	WP2225521 Whirlpool Water Filter Housing
10	W11594405 Whirlpool Axle
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
14	SCREW
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
19	EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
20	WP2254473 Whirlpool Refrigerator Door Hinge
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Biscuit)
27	WP2183998 Whirlpool Refrigerator Button Plug
27	WP2151652 Whirlpool Refrigerator Button Plug
35	WPW10283959 Whirlpool Refrigerator Filler
35	W10283958 Whirlpool Refrigerator Filler
35	W11252732 Whirlpool Refrigerator Filler
36	Grille (Includes Illus. 27) (White)
36	Grille (Includes Illus. 27) (Black)
36	Grille (Includes Illus. 39) (Biscuit)
37	WP489467 Whirlpool Hinge Shim
38	WP487576 Whirlpool Washer
39	CLIP, GRILLE
40	WP2213363 Whirlpool Refrigerator Cover
40	WP2213360 Whirlpool Refrigerator Cover
40	2213364 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
44	Cover, Unit
