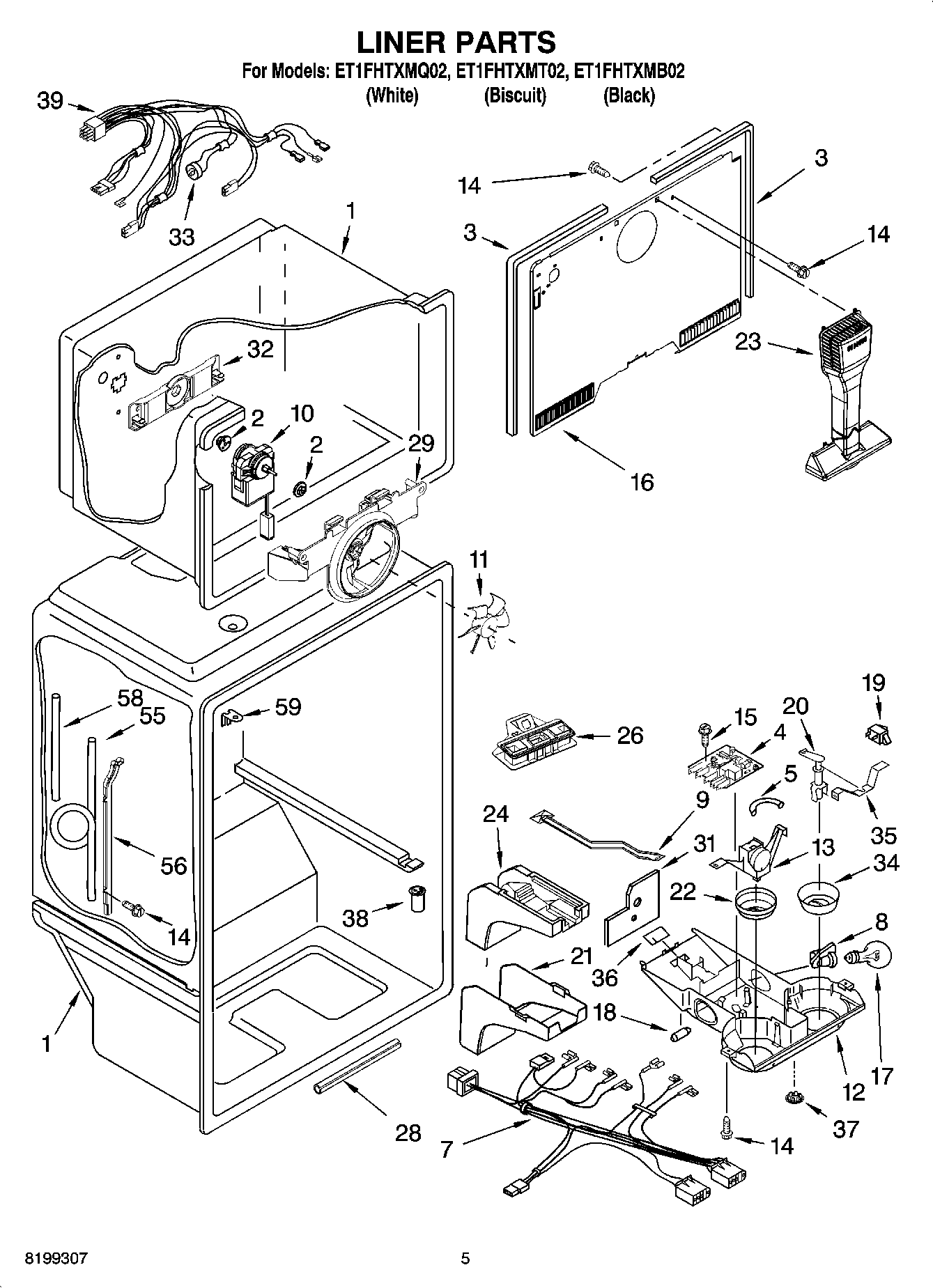

ET1FHTXMT02 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5	Thermostat Tube Barrier
7	Wire Assembly, Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WP2315539 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Items 5, 18 & 36)
14	WP489478 Whirlpool Refrigerator Screw
15	Screw
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Post, Damper
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
26	Air Separator Assembly
28	Insulation, Water Tube
29	BRACKET, FAN MOTOR
31	Shield, heat
32	2254454 Whirlpool Refrigerator Bracket
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34	Knob, Damper
35	Bracket, Damper Knob
36	WP2205079 Whirlpool Refrigerator Seal
37	940014 Whirlpool Refrigerator Primary Button Plug
38	WP2210509 Whirlpool Refrigerator Tub Valve
39	Wire Assembly, Freezer Compartment (Includes Illus. 33)
55	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
56	Cover, Tubing
58	Tube, Water Filter
59	Clip, Retainer
