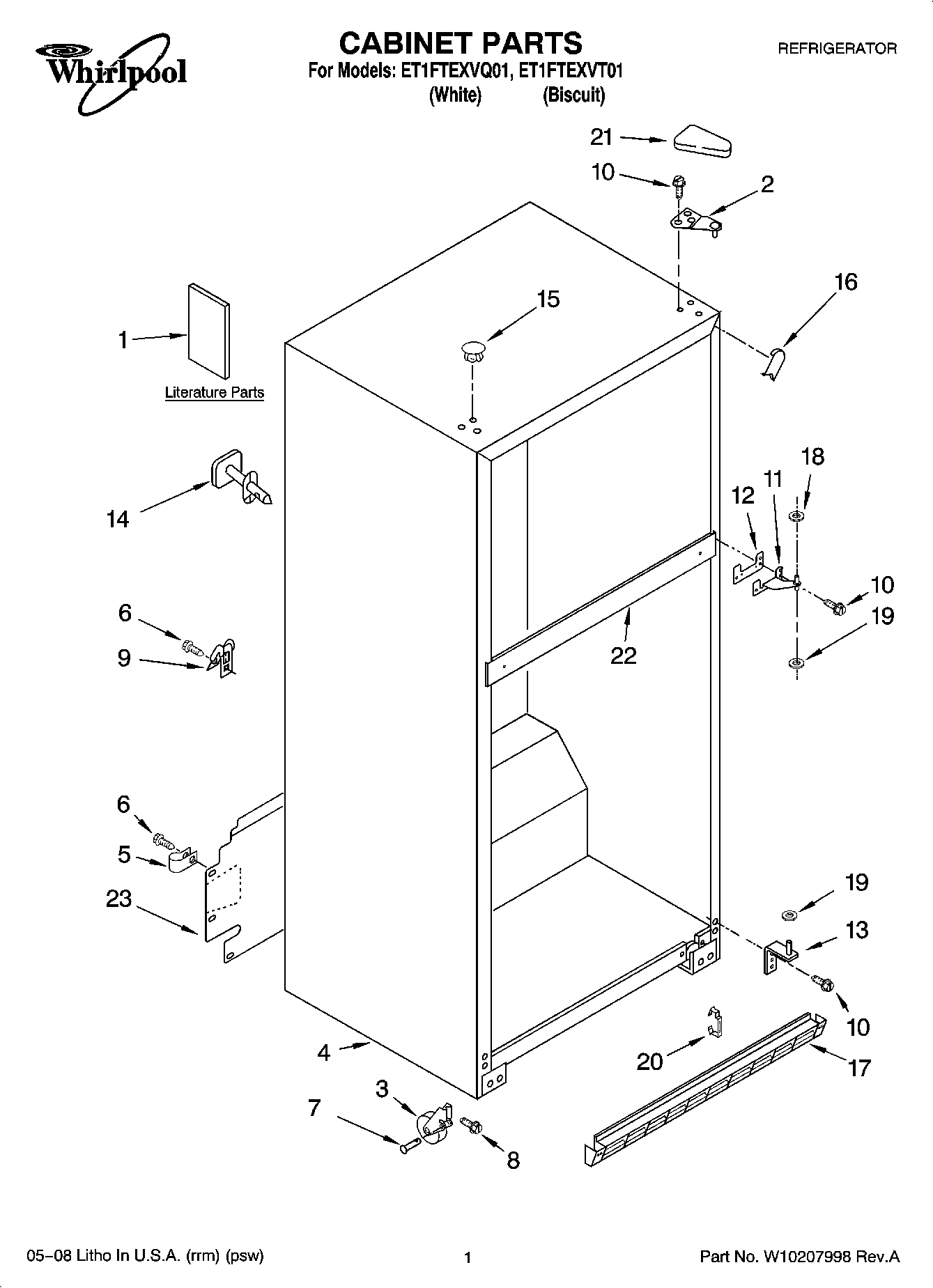

ET1FTEXVQ01 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Use & Care Guide (Bilingual)
1	Use & Care Guide (Trilingual)
1	Energy Label
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Cabinet, (Not A Serviceable Part)
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489464 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
8	WP3400504 Whirlpool Refrigerator Screw
9	549193 Whirlpool Refrigerator Power Clamp
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183852 Whirlpool Refrigerator Shim
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	Fitting, Water Tube (Not Serviced)
15	Hole Plug (6) (Biscuit)
15	WP2151652 Whirlpool Refrigerator Button Plug
16	W10283958 Whirlpool Refrigerator Filler
16	WPW10283959 Whirlpool Refrigerator Filler
17	Grille (White)
17	Grille (Biscuit)
18	WP489467 Whirlpool Hinge Shim
19	WP487576 Whirlpool Washer
20	CLIP, GRILLE
21	2213364 Whirlpool Refrigerator Cover
21	WP2213360 Whirlpool Refrigerator Cover
22	Rail, Center (Not Serviced)
23	Cover, Unit
