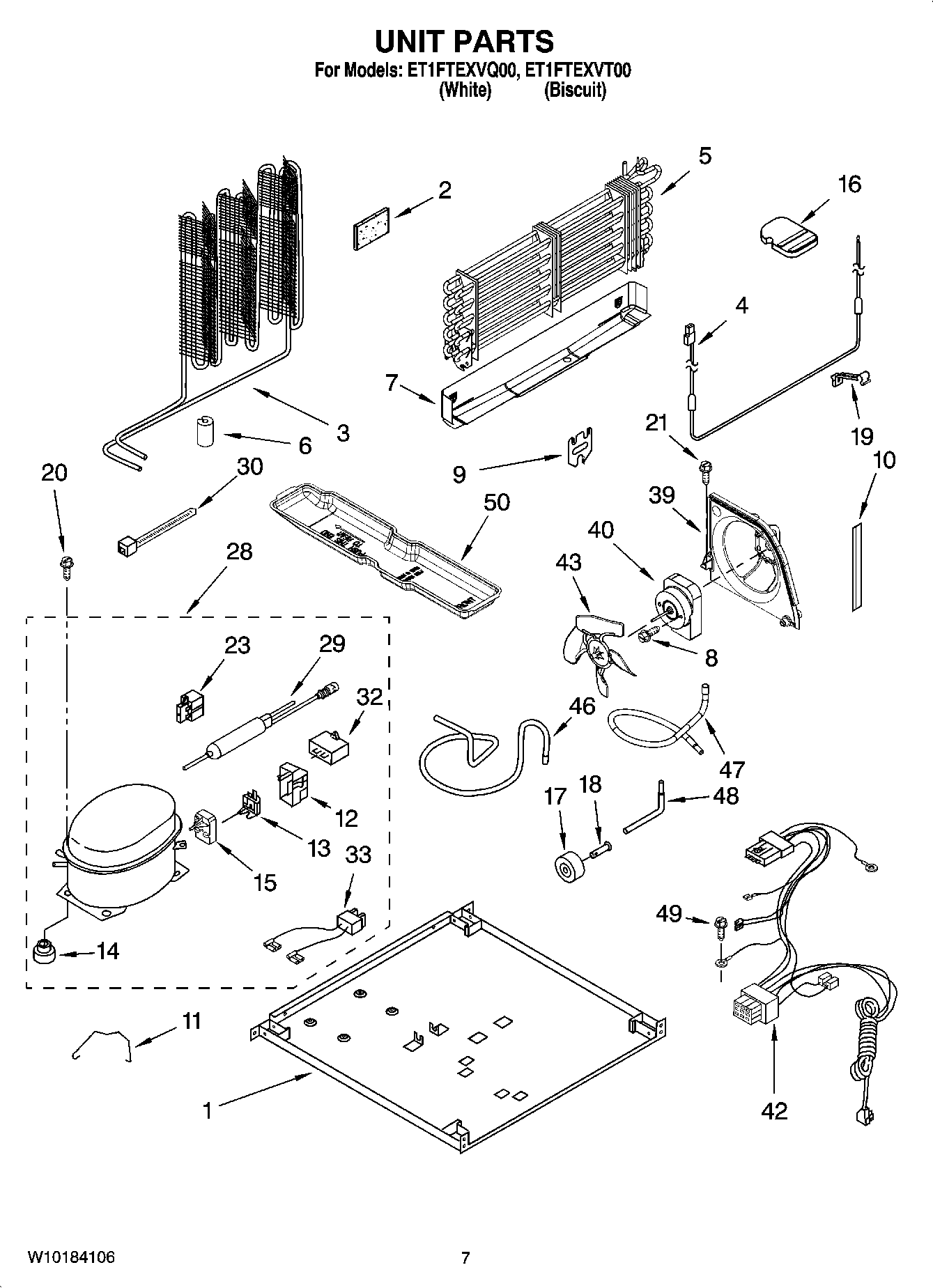

ET1FTEXVT00 04 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	WP2214960 Whirlpool Refrigerator Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	W10852725 Whirlpool Refrigerator Grommet
7	Drain Pan
8	WPW10171469 Whirlpool Refrigerator Screw
9	Bracket, Heater
10	Extension, Air Baffle
11	2223314 Whirlpool Refrigerator Clip
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	Grommet (4) (Service)
14	876811 Whirlpool Grommet
15	WPW10197426 Whirlpool Refrigerator Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	3400518 Whirlpool Oven Foot Mount Screw
23	W10920279 Whirlpool Refrigerator Start Relay
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP2172890 Whirlpool Refrigerator Wire
39	WP2315541 Whirlpool Refrigerator Air Baffle
40	WP2188874 Whirlpool Refrigerator Condenser Motor
42	2187382 Whirlpool Refrigerator Wire Harness
43	W11458267 Whirlpool Refrigerator Fan Blade
46	Tube, Discharge
47	2214924 Whirlpool Refrigerator Tube
48	2154109 Whirlpool Refrigerator Tube
49	WP489128 Whirlpool Refrigerator Screw
50	WP2254574 Whirlpool Refrigerator Evaporator Tray
