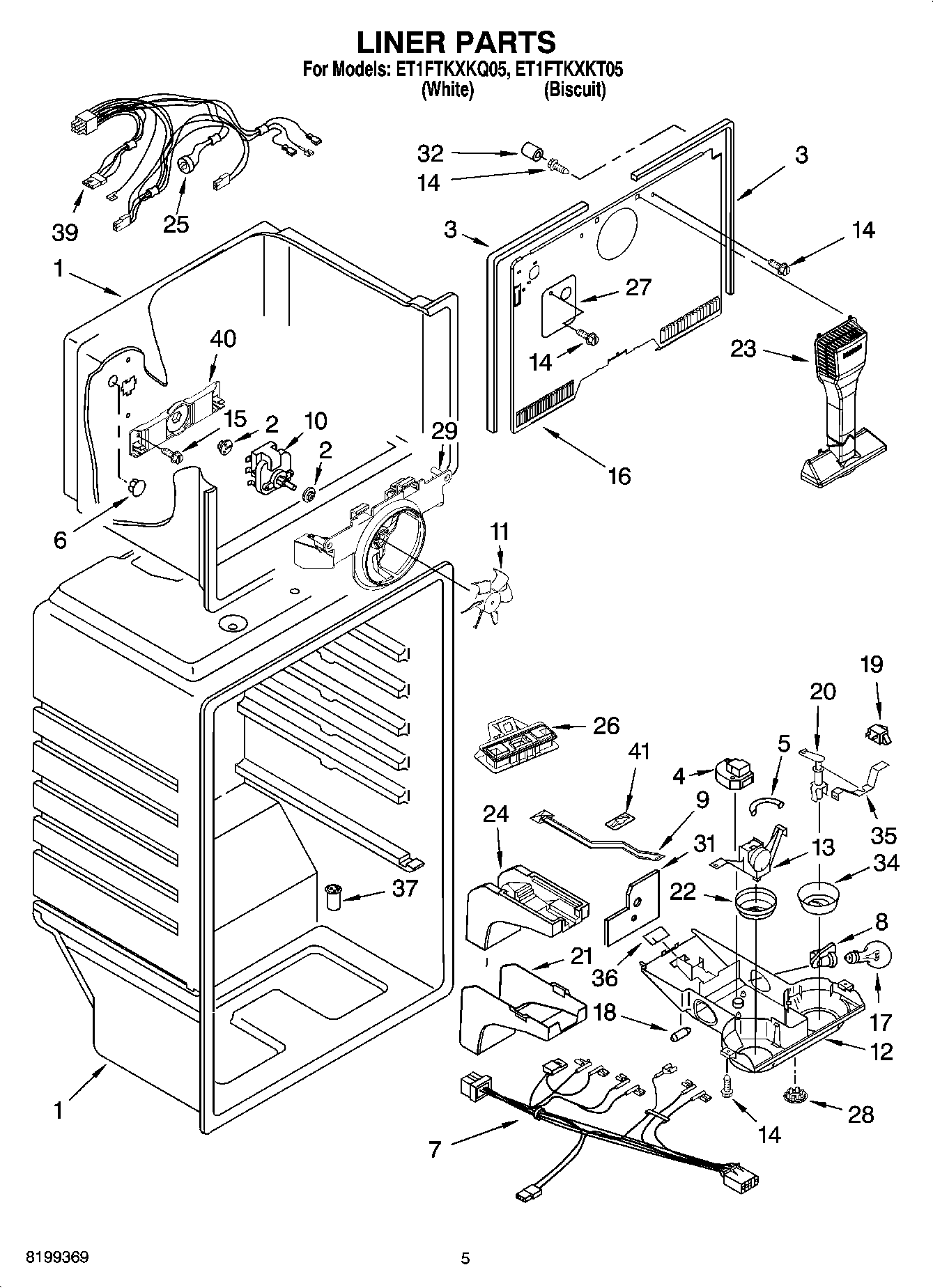

ET1FTKXKQ05 03 – LINER PARTS

ET1FTKXKQ05 03 – LINER PARTS

Written by

in

ET1FTKXKQ05 03 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2314156 Whirlpool Refrigerator Defrost Timer
5Thermostat Tube Barrier
6WP941839 Whirlpool Refrigerator Button Plug
72310174 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Items 5, 18 & 36)
14WP489478 Whirlpool Refrigerator Screw
15WP488163 Whirlpool Refrigerator Screw
16Cover, Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20Post, Damper
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25WP2321800 Whirlpool Refrigerator Bimetallic Defrost
26Air Separator Assembly
27Cover, Hole
28940014 Whirlpool Refrigerator Primary Button Plug
29BRACKET, FAN MOTOR
31Shield, heat
32WP487996 Whirlpool Refrigerator Cap Tube
34Knob, Damper
35Bracket, Damper Knob
36WP2205079 Whirlpool Refrigerator Seal
37WP2210509 Whirlpool Refrigerator Tub Valve
392310099 Whirlpool Refrigerator Wire Harness
402254454 Whirlpool Refrigerator Bracket
41Clip, Defrost Timer
