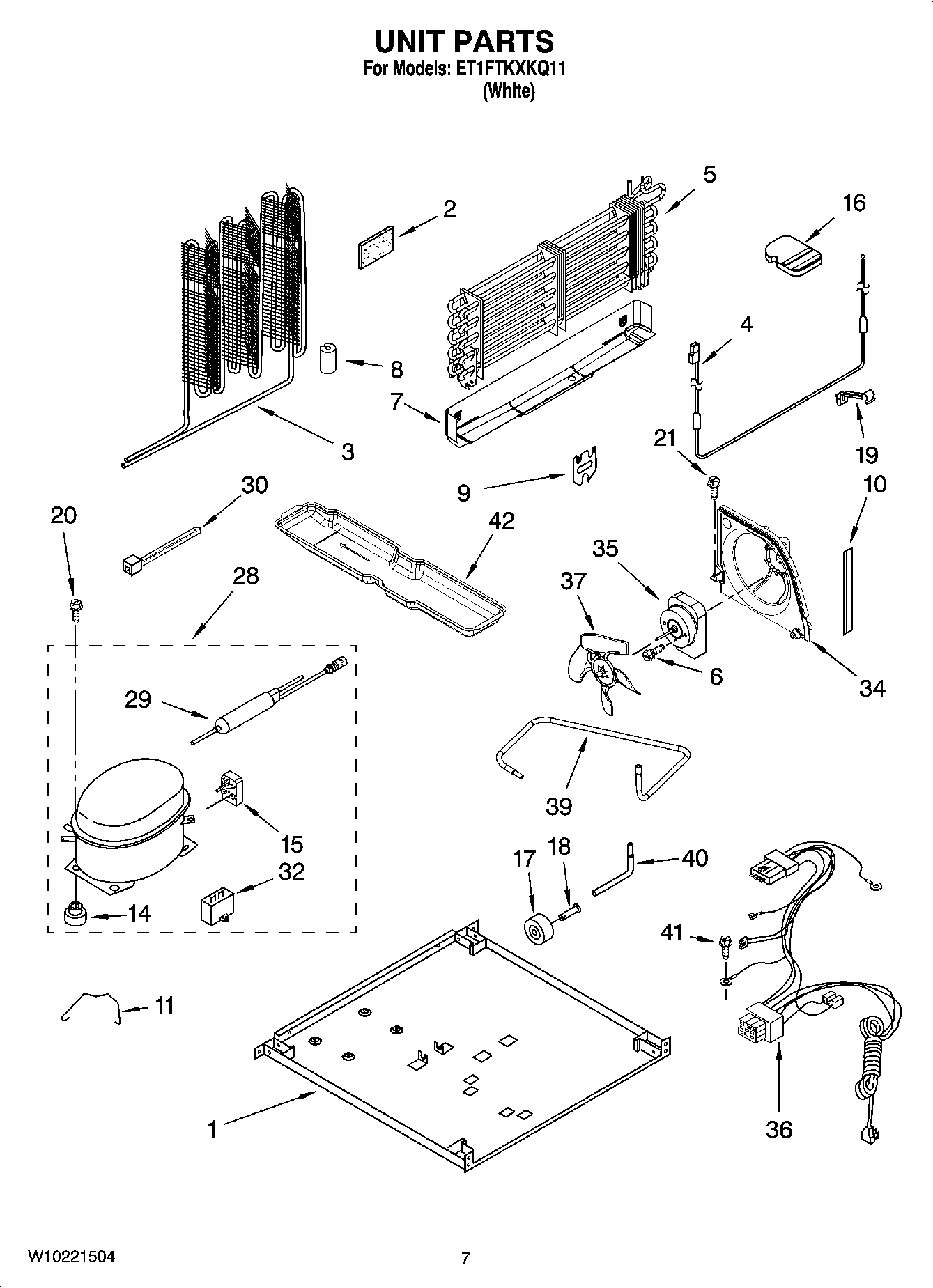

ET1FTKXKQ11 04 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	W10852725 Whirlpool Refrigerator Grommet
9	Bracket, Heater
10	Extension, Air Baffle
11	2212996 Whirlpool Refrigerator Retainer
14	876811 Whirlpool Grommet
14	Grommet (4) (Service)
15	WP2225929 Whirlpool Refrigerator Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	3400518 Whirlpool Oven Foot Mount Screw
28	W10285060 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
34	WP2315541 Whirlpool Refrigerator Air Baffle
35	WP2188874 Whirlpool Refrigerator Condenser Motor
36	2187382 Whirlpool Refrigerator Wire Harness
37	W11458267 Whirlpool Refrigerator Fan Blade
39	Tube, Suction
40	2154109 Whirlpool Refrigerator Tube
41	WP489128 Whirlpool Refrigerator Screw
42	WP2254574 Whirlpool Refrigerator Evaporator Tray
