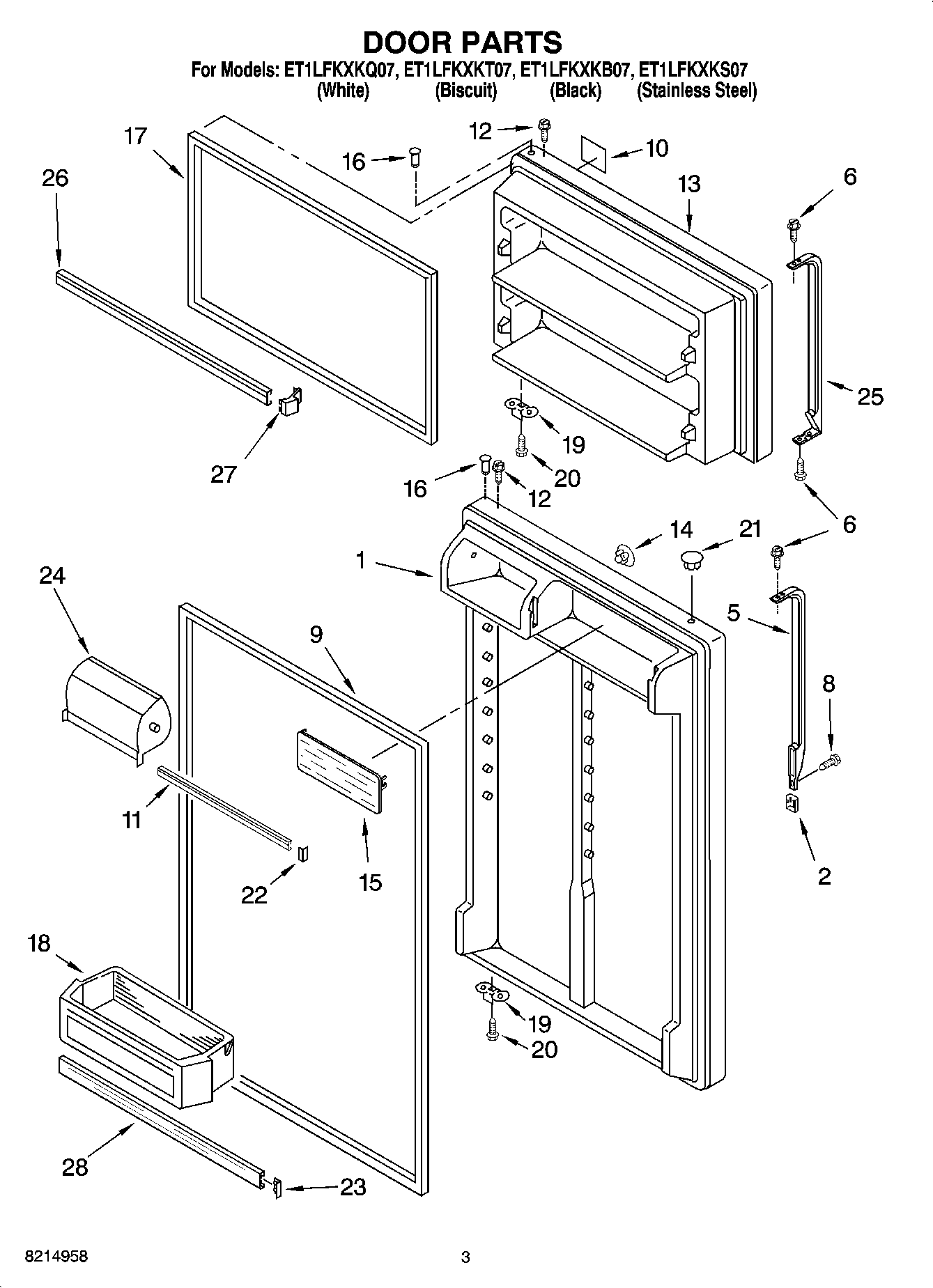

ET1LFKXKB07 02 – DOOR PARTS

ET1LFKXKB07 02 – DOOR PARTS

Written by

in

ET1LFKXKB07 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 3,4,9 & 16) (Stainless Steel)
2WP2193353W Whirlpool Refrigerator Trim Handle
2Cover, Trim (Black)
2Cover, Trim (Biscuit)
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92159061 Whirlpool Refrigerator Door Gasket
10Nameplate (Black Model)
10Nameplate (Biscuit Model)
10Nameplate (White Model)
11TRIM-DOOR
12WP8281206 Whirlpool Refrigerator Screw
13W11023679 Whirlpool Refrigerator Door Assembly
13W11023688 Whirlpool Refrigerator Door Assembly
13W11023687 Whirlpool Refrigerator Door Assembly
13Freezer Door (Includes Illus. 4,16 & 17) (Stainless Steel)
14WP2200936 Whirlpool Refrigerator Handle Plug
14WP2189000 Whirlpool Refrigerator Handle Plug
14WP2189009 Whirlpool Refrigerator Handle Plug
15WP2188236 Whirlpool Refrigerator Shelf Door
16WP2183003 Whirlpool Thimble
17WHITE DOOR GASKET-FIP
18WP2204812 Whirlpool Refrigerator Door Bin
19W11745278 Whirlpool Bracket
20WP488921 Whirlpool Refrigerator Screw
21WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
21WP2212651 Whirlpool Refrigerator Button Plug
21WP2212649 Whirlpool Refrigerator Button Plug
22ENDCAP-TRM
23WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
24WP2218118 Whirlpool Refrigerator Door Compressor
254388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
254388949 Whirlpool Refrigerator Handle
254388950 Whirlpool Refrigerator Handle
26Trim, Door Shelf (2)
27ENDCAP
28WPW10421486 Whirlpool Refrigerator Door Trim
