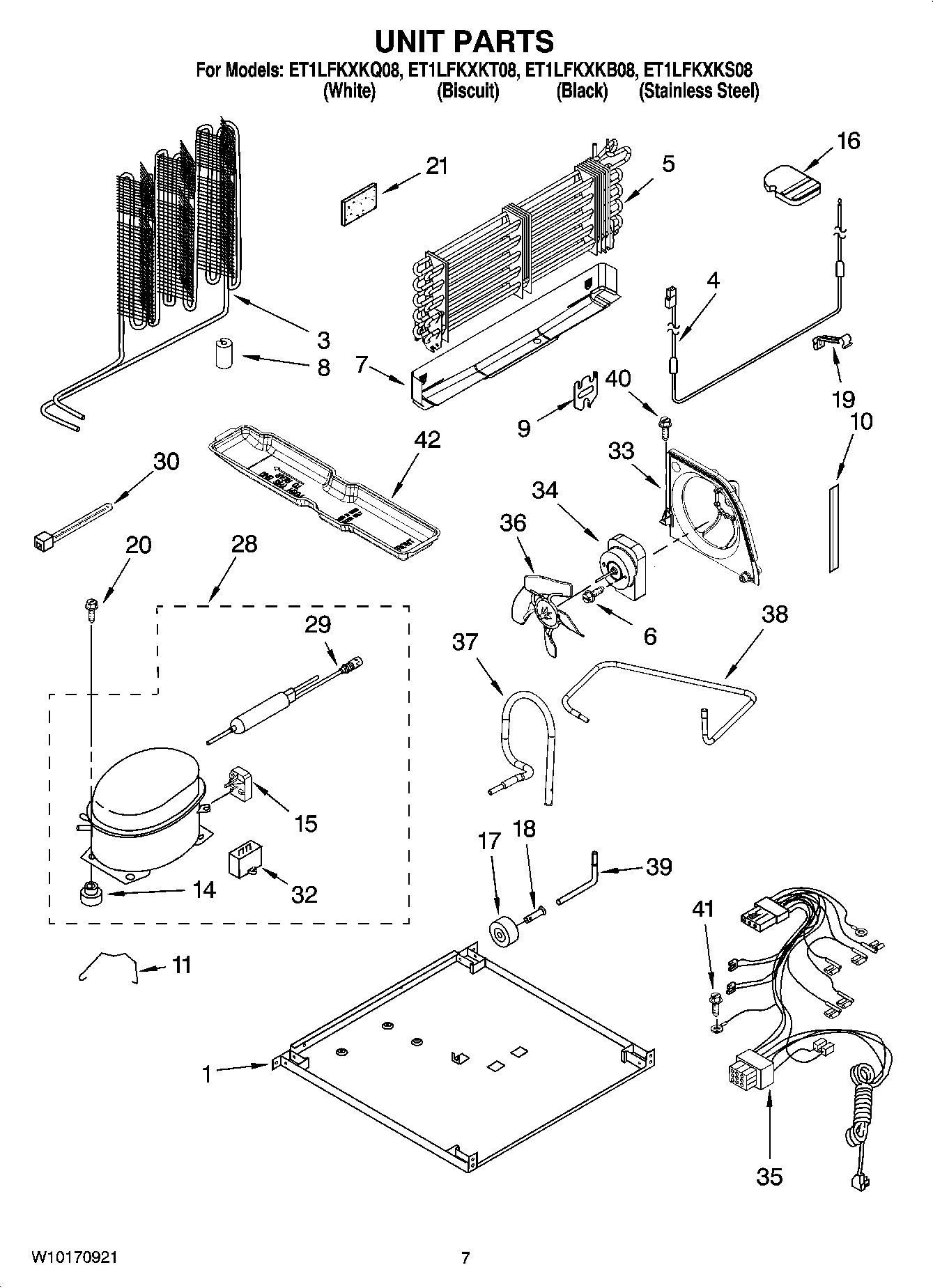

ET1LFKXKB08 04 – UNIT PARTS
Written by
in
ET1LFKXKB08 04 – UNIT PARTS
Products
Position
Product
VALVE, ACCESS (1/2“)
REFRIGERANT CHARGE 4.00 Ozs. (R134A)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
1
Plate, Unit Mounting
3
WP2214960 Whirlpool Refrigerator Condenser
4
WPW10140847 Whirlpool Refrigerator Heater
5
EVAPORATOR ASSY.
6
WPW10171469 Whirlpool Refrigerator Screw
7
Drain Pan
8
W10852725 Whirlpool Refrigerator Grommet
9
Bracket, Heater
10
Extension, Air Baffle
11
2212996 Whirlpool Refrigerator Retainer
14
WP4387558 Whirlpool Refrigerator Compressor Grommet
14
876811 Whirlpool Grommet
15
WP2225929 Whirlpool Refrigerator Start Device
16
Support Block
17
WPW10475495 Whirlpool Roller Assembly
18
W11594405 Whirlpool Axle
19
Clip, Heater
21
W11553819 Whirlpool Refrigerator Insulation
28
W10309988 Whirlpool Refrigerator Compressor
29
W10843121 Whirlpool Refrigerator Tube
29
WPW10143759 Whirlpool Dryer Filter
30
WPW10339879 Whirlpool Wire Tie
32
WPW10662129 Whirlpool Refrigerator Run Capacitor
33
WP2315541 Whirlpool Refrigerator Air Baffle
34
WP2188874 Whirlpool Refrigerator Condenser Motor
35
2187382 Whirlpool Refrigerator Wire Harness
36
W11458267 Whirlpool Refrigerator Fan Blade
37
Tube, Discharge
38
Tube, Suction
39
2154109 Whirlpool Refrigerator Tube
40
3400518 Whirlpool Oven Foot Mount Screw
41
WP489128 Whirlpool Refrigerator Screw
42
WP2254574 Whirlpool Refrigerator Evaporator Tray
←
