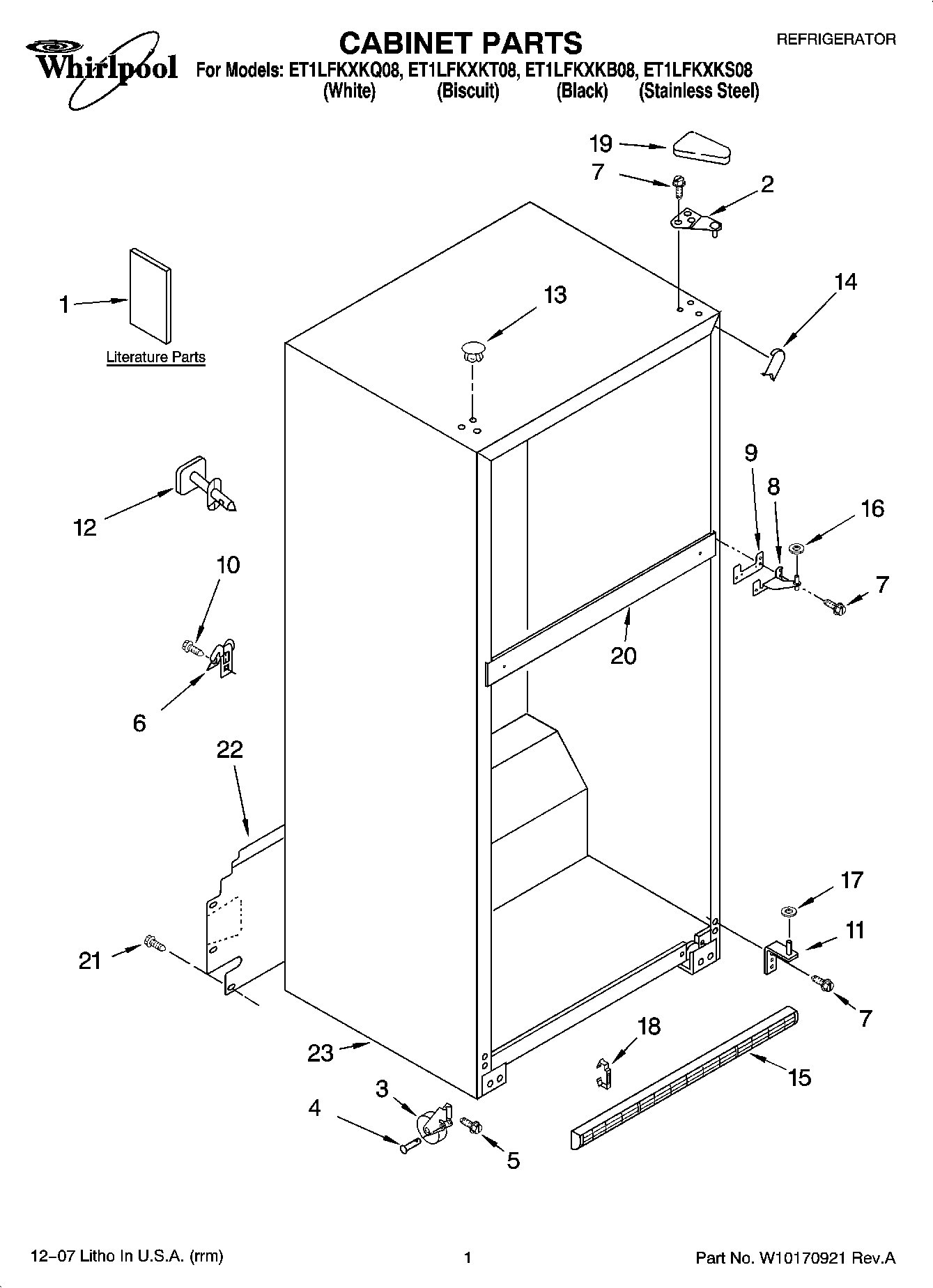

ET1LFKXKQ08 01 – CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
1	Service & Wiring Sheet
1	Use & Care Guide (Trilingual)
1	Use & Care Guide (Bilingual)
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	W11594405 Whirlpool Axle
5	WP3400504 Whirlpool Refrigerator Screw
6	549193 Whirlpool Refrigerator Power Clamp
7	WP489497 Whirlpool Screw
8	WP2254618 Whirlpool Center Door Hinge
9	WP2183854 Whirlpool Refrigerator Shim
10	WP489464 Whirlpool Refrigerator Screw
11	WP2254473 Whirlpool Refrigerator Door Hinge
12	Fitting, Water Tube (Not Serviced)
13	WP2151652 Whirlpool Refrigerator Button Plug
13	WP2183998 Whirlpool Refrigerator Button Plug
13	Hole Plug (6) (Biscuit)
14	W11252732 Whirlpool Refrigerator Filler
14	W10283958 Whirlpool Refrigerator Filler
14	WPW10283959 Whirlpool Refrigerator Filler
15	Grille (Biscuit)
15	GRILLE (INCLUDES ILLUS. 19) (BLACK)
15	Grille (White)
16	WP489467 Whirlpool Hinge Shim
17	WP487576 Whirlpool Washer
18	CLIP, GRILLE
19	2213364 Whirlpool Refrigerator Cover
19	WP2213360 Whirlpool Refrigerator Cover
19	WP2213363 Whirlpool Refrigerator Cover
20	Rail, Center (Not Serviced)
21	WP489427 Whirlpool Refrigerator Screw
22	Cover, Unit
23	Cabinet, (Not A Serviceable Part)
