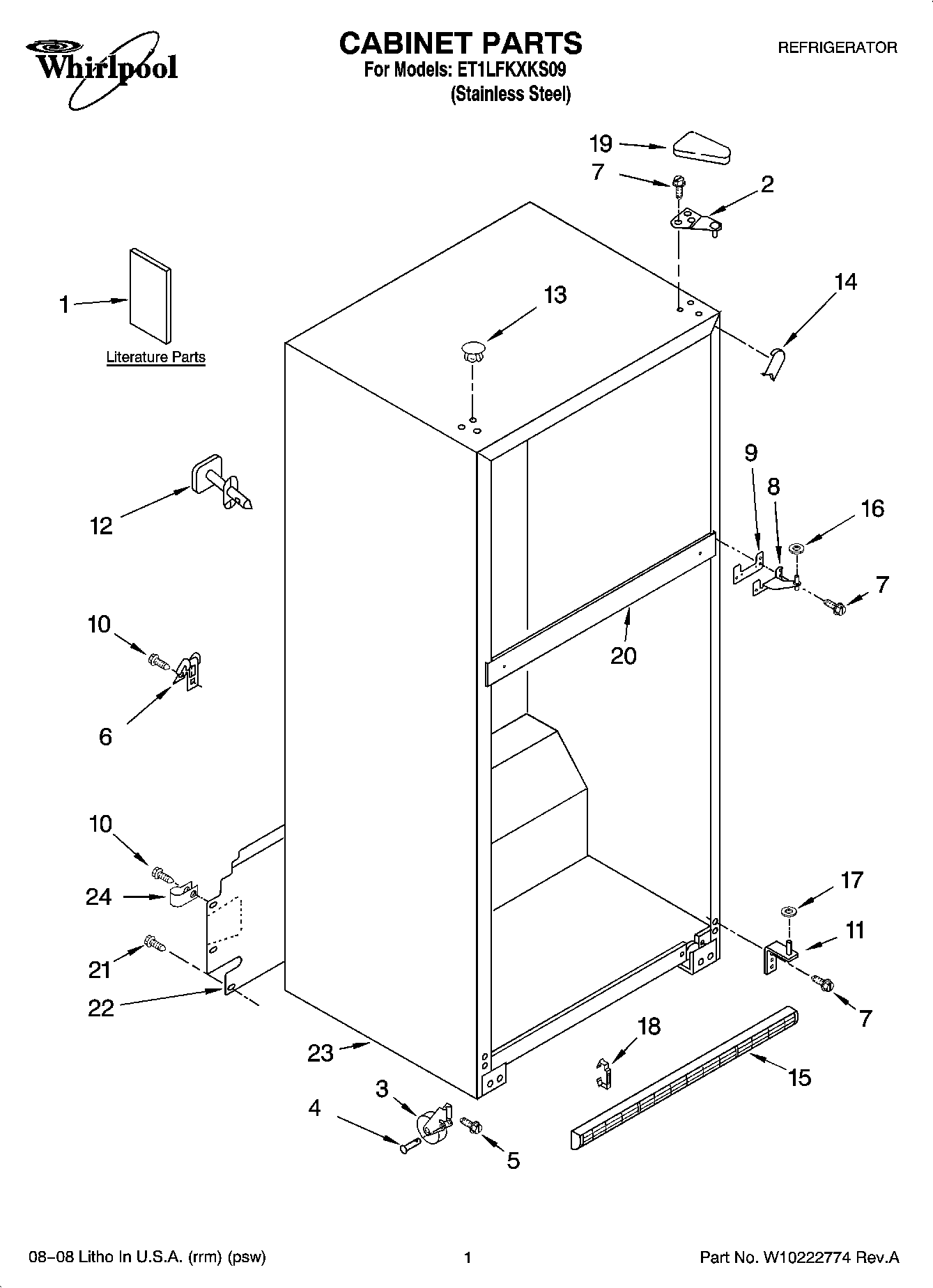

ET1LFKXKS09 01 – CABINET PARTS

ET1LFKXKS09 01 – CABINET PARTS

Written by

in

ET1LFKXKS09 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Service & Wiring Sheet
1Use & Care Guide (Bilingual)
1Use & Care Guide (Trilingual)
1Energy Label
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4W11594405 Whirlpool Axle
5WP3400504 Whirlpool Refrigerator Screw
6549193 Whirlpool Refrigerator Power Clamp
7WP489497 Whirlpool Screw
8WP2254618 Whirlpool Center Door Hinge
9WP2183852 Whirlpool Refrigerator Shim
10WP489464 Whirlpool Refrigerator Screw
11WP2254473 Whirlpool Refrigerator Door Hinge
12Fitting, Water Tube (Not Serviced)
13WP2183998 Whirlpool Refrigerator Button Plug
14W11252732 Whirlpool Refrigerator Filler
15GRILLE (INCLUDES ILLUS. 19) (BLACK)
16WP489467 Whirlpool Hinge Shim
17WP487576 Whirlpool Washer
18CLIP, GRILLE
19WP2213363 Whirlpool Refrigerator Cover
20Rail, Center (Not Serviced)
21WP489427 Whirlpool Refrigerator Screw
22Cover, Unit
23Cabinet, (Not A Serviceable Part)
24WP488366 Whirlpool Refrigerator Clamp
