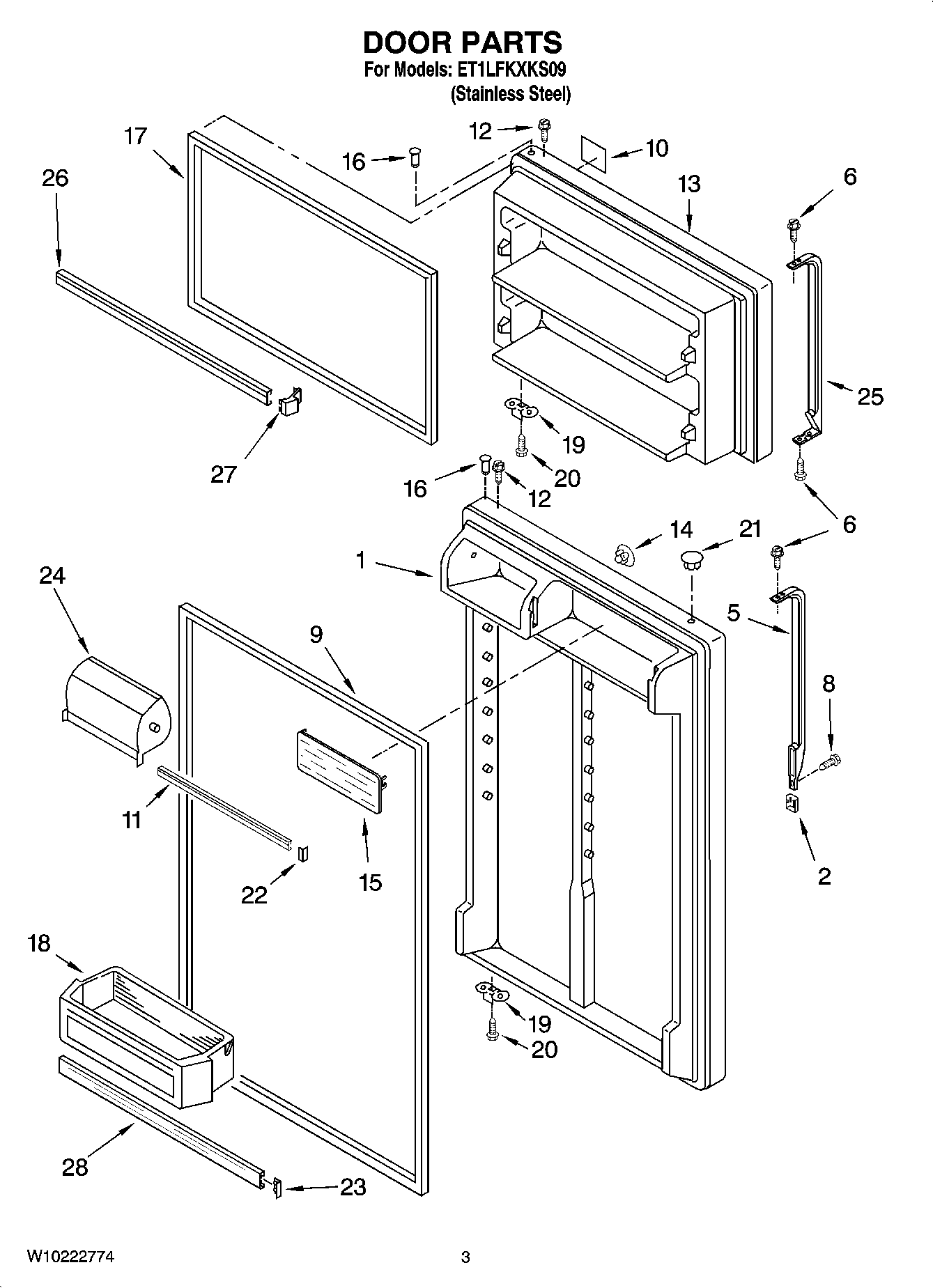

ET1LFKXKS09 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 3,4,9 & 16) (Stainless Steel)
2	Cover, Trim (Black)
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2177311 Whirlpool Refrigerator Magnetic Door Gasket
10	Nameplate (Black Model)
11	TRIM-DOOR
12	WP8281206 Whirlpool Refrigerator Screw
13	Freezer Door (Includes Illus. 4,16 & 17) (Stainless Steel)
14	WP2189009 Whirlpool Refrigerator Handle Plug
15	WP2188236 Whirlpool Refrigerator Shelf Door
16	WP2314293 Whirlpool Refrigerator Thimble
17	2177310 Whirlpool Refrigerator Door Gasket
18	WP2204812 Whirlpool Refrigerator Door Bin
19	W11745278 Whirlpool Bracket
20	WP488921 Whirlpool Refrigerator Screw
21	WP2212651 Whirlpool Refrigerator Button Plug
22	ENDCAP-TRM
23	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
24	WP2218118 Whirlpool Refrigerator Door Compressor
25	4388950 Whirlpool Refrigerator Handle
26	Trim, Door Shelf (2)
27	ENDCAP
28	WPW10421486 Whirlpool Refrigerator Door Trim
