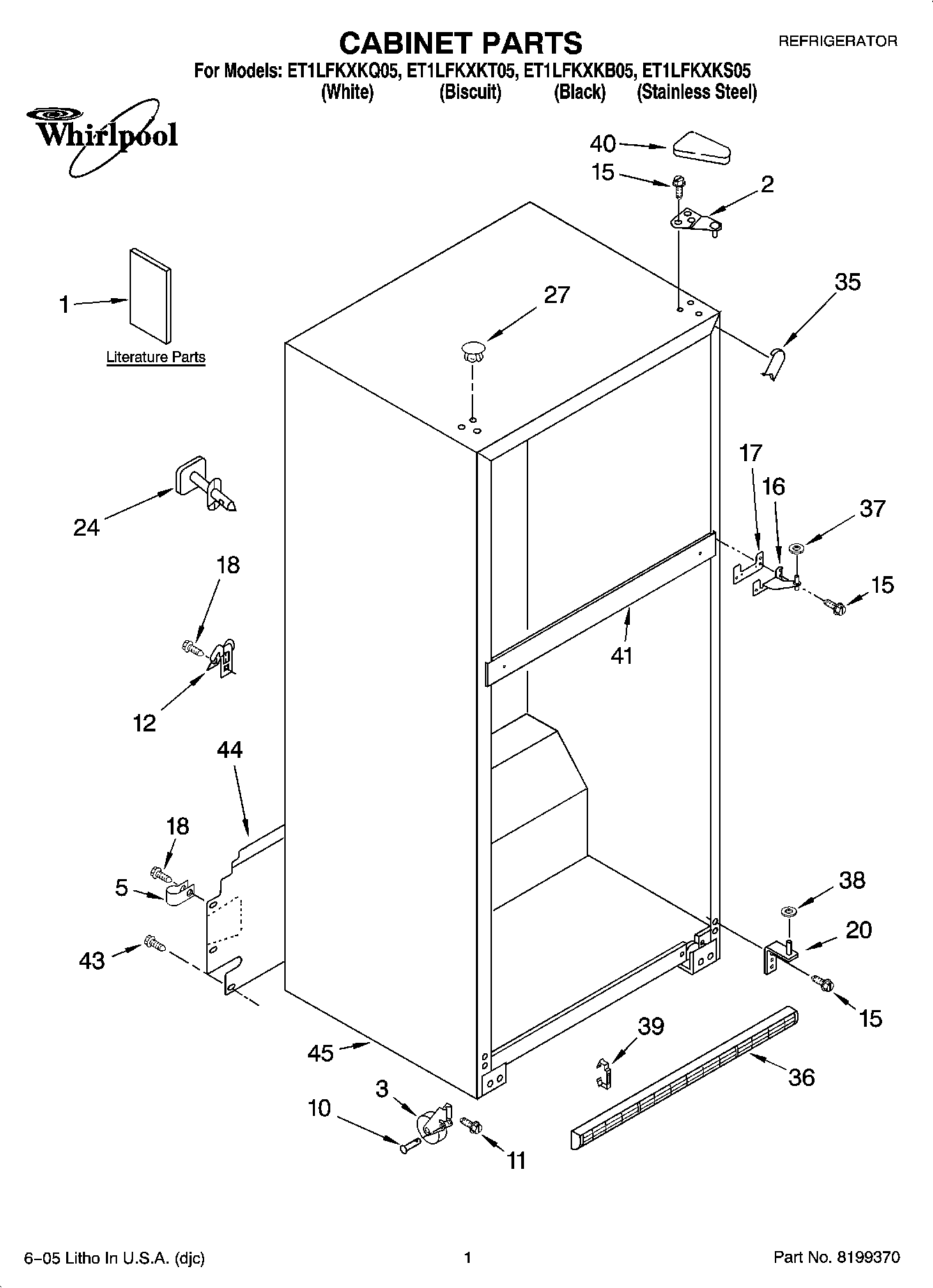

ET1LFKXKT05 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Service & Wiring Sheet
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
1	Use & Care Guide
1	Customer Instructions
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
10	W11594405 Whirlpool Axle
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Biscuit)
27	WP2151652 Whirlpool Refrigerator Button Plug
27	WP2183998 Whirlpool Refrigerator Button Plug
35	W11252732 Whirlpool Refrigerator Filler
35	WPW10283959 Whirlpool Refrigerator Filler
35	W10283958 Whirlpool Refrigerator Filler
36	Grille (Biscuit)
36	Grille (White)
36	GRILLE (INCLUDES ILLUS. 19) (BLACK)
37	WP489467 Whirlpool Hinge Shim
38	WP487576 Whirlpool Washer
39	CLIP, GRILLE
40	WP2213363 Whirlpool Refrigerator Cover
40	WP2213360 Whirlpool Refrigerator Cover
40	2213364 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
43	WP489427 Whirlpool Refrigerator Screw
44	Cover, Unit
45	Cabinet (Not A Serviceable Part)
