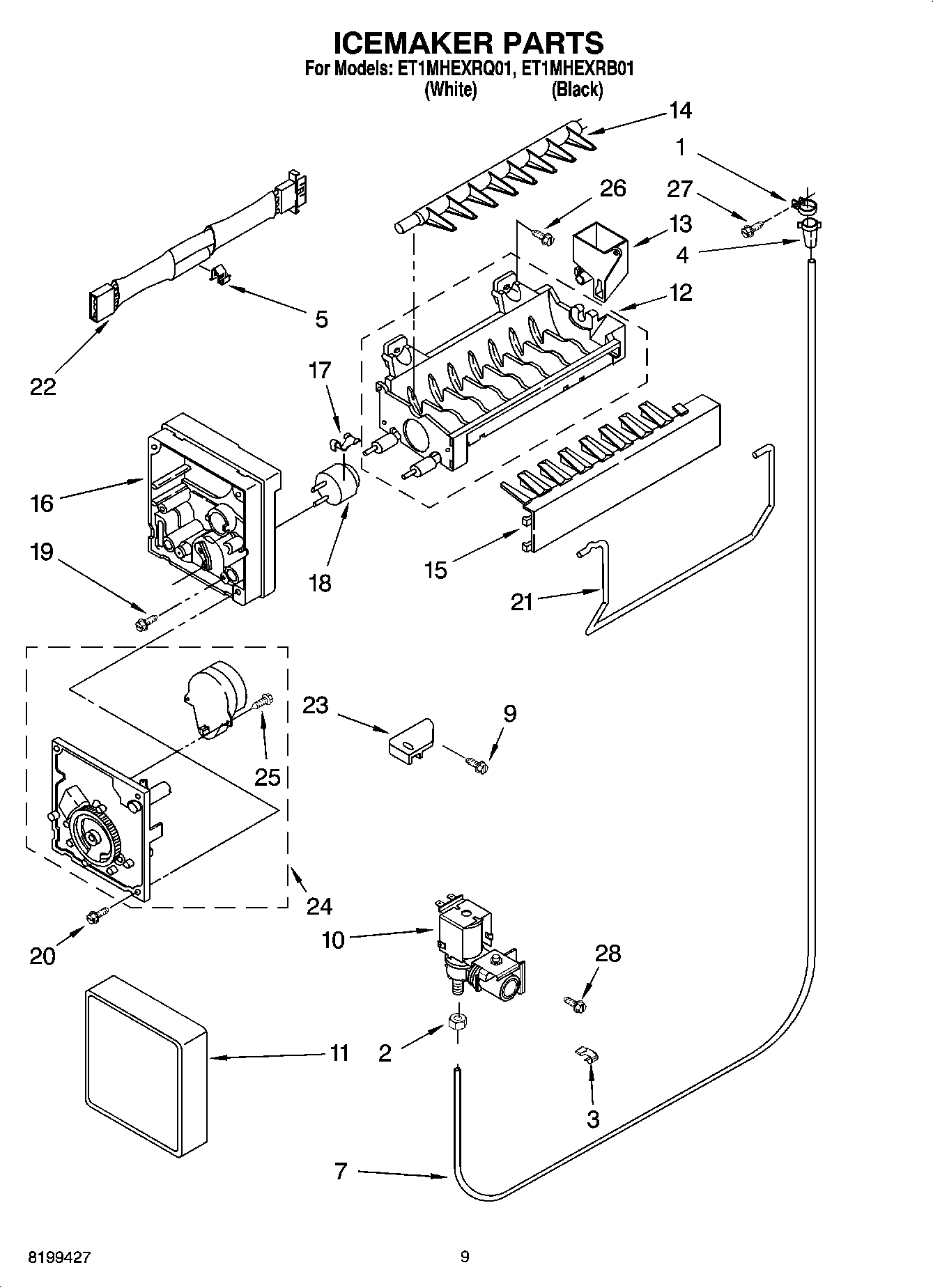

ET1MHEXRQ01 05 – ICEMAKER PARTS

Products

Position	Product
1	WP488878 Whirlpool Refrigerator Tube Clamp
2	WP627018 Whirlpool Refrigerator Nut
3	2210495 Whirlpool Refrigerator Clip
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
9	WP489478 Whirlpool Refrigerator Screw
10	VALVE-INLT
11	WPW10289690 Whirlpool Ice Maker Cover
12	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
13	WP628356 Whirlpool Refrigerator Fill Cup
14	WP627843 Whirlpool Refrigerator Ejector Arm
15	WP2182124 Whirlpool Refrigerator Stripper Arm
16	WP2195914 Whirlpool Refrigerator Ice Maker Housing
17	WP2315522 Whirlpool Refrigerator Clip
18	WP627985 Whirlpool Icemaker Cycling Thermostat
19	8533917 Whirlpool Refrigerator Screw
20	WP681249 Whirlpool Screw Assembly
21	WP627792 Whirlpool Refrigerator Shut Off Arm
22	WP2187464 Whirlpool Refrigerator Wire Harness
23	W11500948 Whirlpool Refrigerator Bracket
24	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
25	489136 Whirlpool Refrigerator Screw
26	WP488163 Whirlpool Refrigerator Screw
27	WP488787 Whirlpool Refrigerator Screw
28	WP489442 Whirlpool Refrigerator Screw
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
