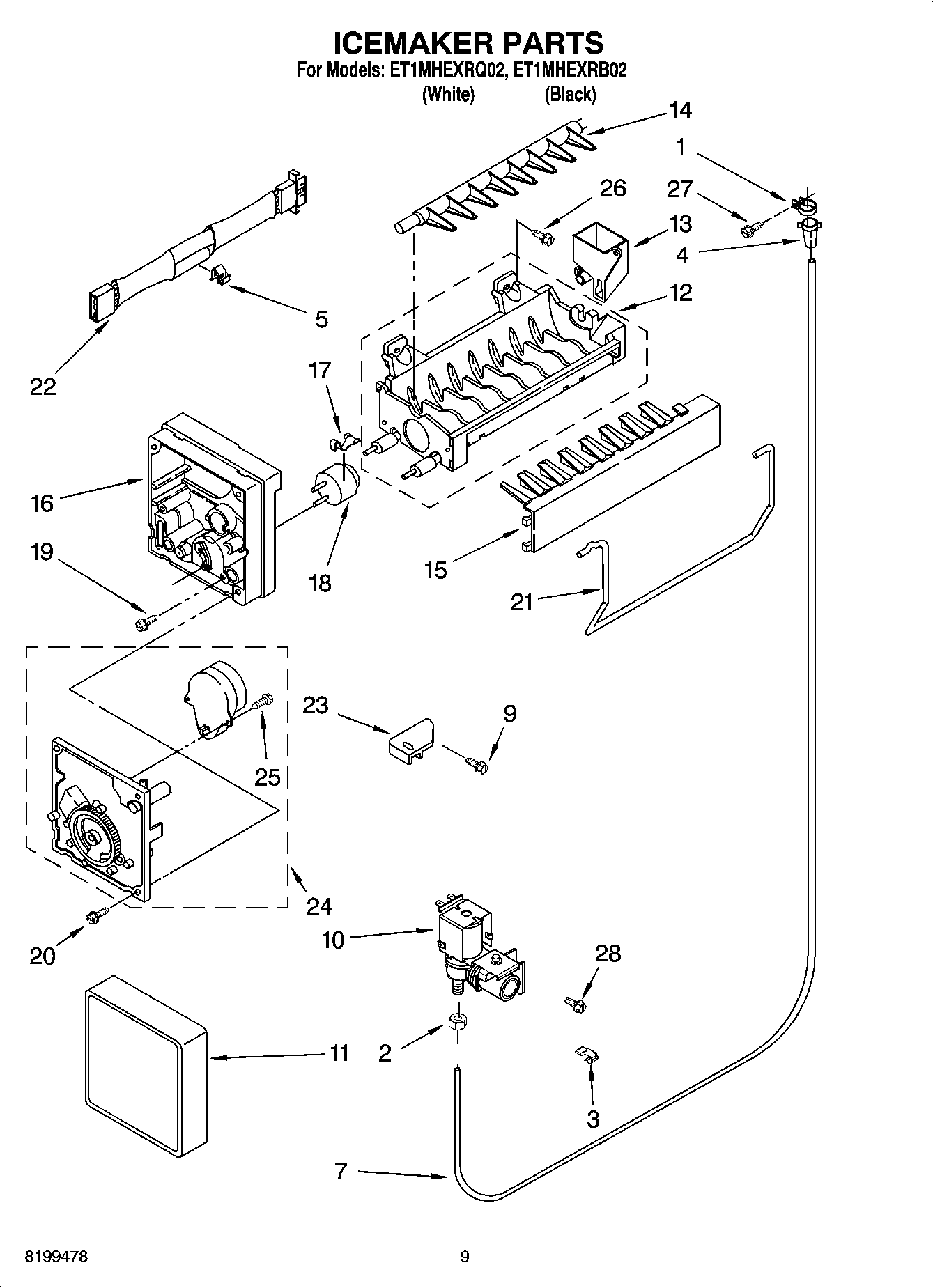

ET1MHEXRQ02 05 – ICEMAKER PARTS

ET1MHEXRQ02 05 – ICEMAKER PARTS

Written by

in

ET1MHEXRQ02 05 – ICEMAKER PARTS

Products

PositionProduct
1WP488878 Whirlpool Refrigerator Tube Clamp
2WP627018 Whirlpool Refrigerator Nut
32210495 Whirlpool Refrigerator Clip
44387491 Whirlpool Refrigerator Insert
5WP628379 Whirlpool Refrigerator Clip
7W10823511 Whirlpool Refrigerator Water Tube
9WP489478 Whirlpool Refrigerator Screw
10VALVE-INLT
11WPW10289690 Whirlpool Ice Maker Cover
12WPW10190929 Whirlpool Refrigerator Ice Maker Mold
13WP628356 Whirlpool Refrigerator Fill Cup
14WP627843 Whirlpool Refrigerator Ejector Arm
15WP2182124 Whirlpool Refrigerator Stripper Arm
16WP2195914 Whirlpool Refrigerator Ice Maker Housing
17WP2315522 Whirlpool Refrigerator Clip
18WP627985 Whirlpool Icemaker Cycling Thermostat
198533917 Whirlpool Refrigerator Screw
20WP681249 Whirlpool Screw Assembly
21WP627792 Whirlpool Refrigerator Shut Off Arm
22WP2187464 Whirlpool Refrigerator Wire Harness
23W11500948 Whirlpool Refrigerator Bracket
24W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
25489136 Whirlpool Refrigerator Screw
26WP488163 Whirlpool Refrigerator Screw
27WP488787 Whirlpool Refrigerator Screw
28WP489442 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
