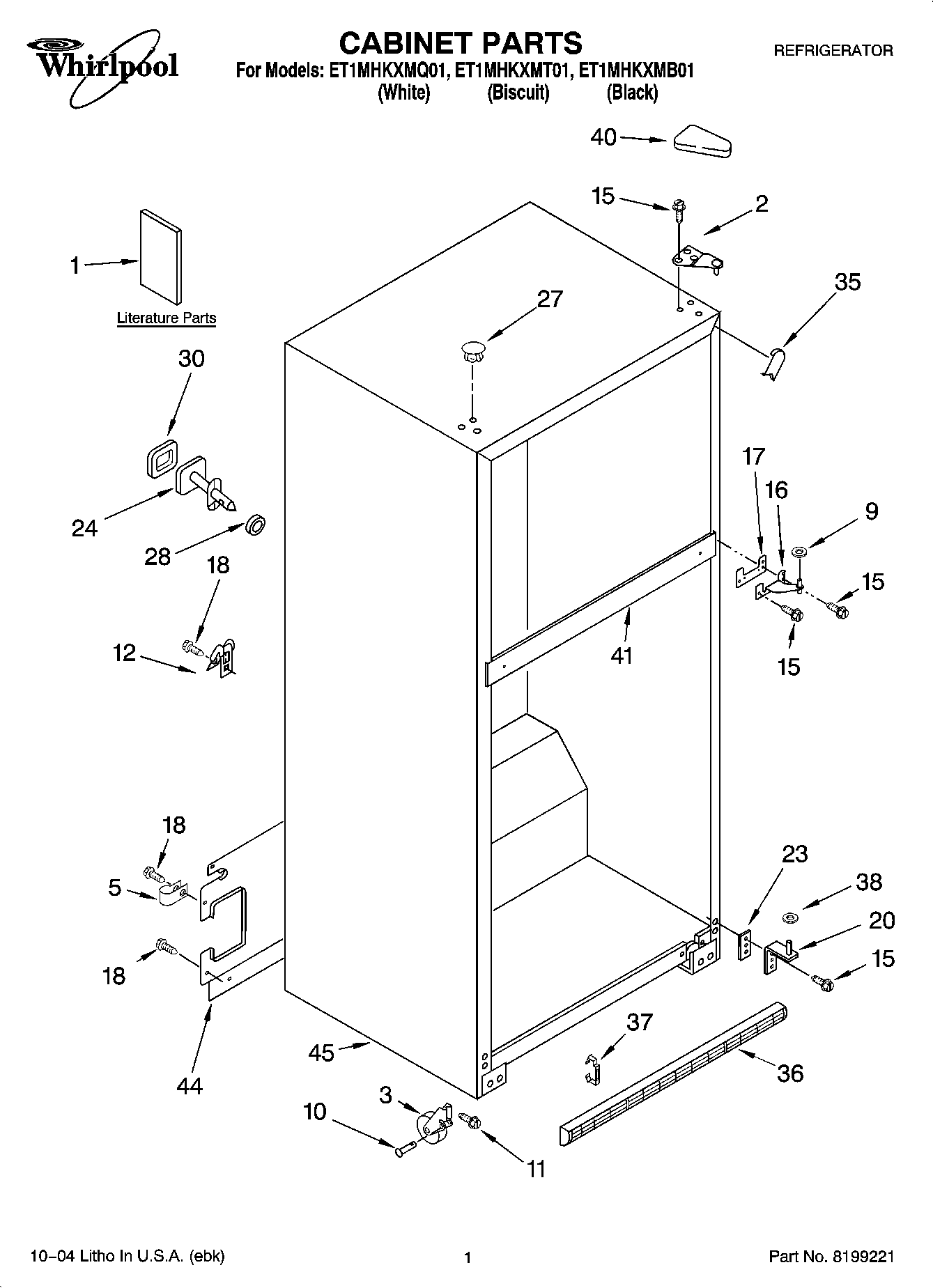

ET1MHKXMB01 01 – CABINET PARTSadmin2025-04-26T10:59:52+00:00ET1MHKXMB01 01 – CABINET PARTS ProductsPositionProduct1Service & Wiring Sheet1DO-IT-YOURSELF MANUAL, REF./ FZR.1Customer Instructions1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS1Energy Label1Use & Care Guide2WP2261963 Whirlpool Refrigerator Door Hinge3WP2166108 Whirlpool Refrigerator Cabinet Roller5WP488366 Whirlpool Refrigerator Clamp9WP489467 Whirlpool Hinge Shim10W11594405 Whirlpool Axle11WP3400504 Whirlpool Refrigerator Screw12549193 Whirlpool Refrigerator Power Clamp15WP489497 Whirlpool Screw16WP2254618 Whirlpool Center Door Hinge17WP2183854 Whirlpool Refrigerator Shim18WP489464 Whirlpool Refrigerator Screw20WP2254473 Whirlpool Refrigerator Door Hinge23Shim, Bottom Hinge24Fitting, Water Tube (Not Serviced)27Hole Plug (6) (Biscuit)27WP2151652 Whirlpool Refrigerator Button Plug27WP2183998 Whirlpool Refrigerator Button Plug28Seal, Front (Not Serviced)30Seal, Rear (Not Serviced)35W11252732 Whirlpool Refrigerator Filler35W10283958 Whirlpool Refrigerator Filler35WPW10283959 Whirlpool Refrigerator Filler36Grille (Biscuit)36Grille (White)36GRILLE (INCLUDES ILLUS. 19) (BLACK)37CLIP, GRILLE38WP487576 Whirlpool Washer402213364 Whirlpool Refrigerator Cover40WP2213360 Whirlpool Refrigerator Cover40WP2213363 Whirlpool Refrigerator Cover41Rail Center (Not Serviced)44Cover, Unit45Cabinet (Not A Serviceable Part)
