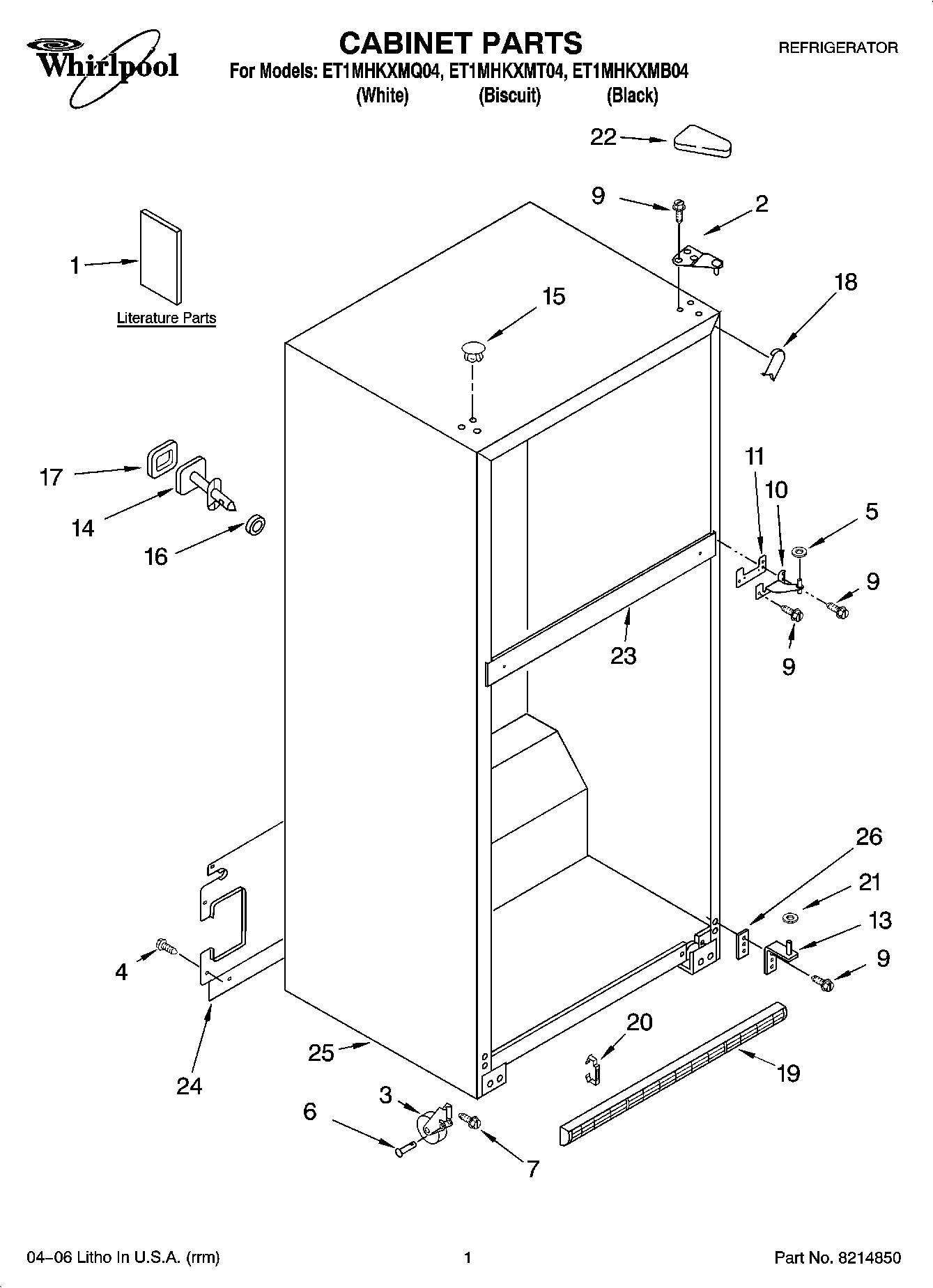

ET1MHKXMB04 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Use & Care Guide
1	Service & Wiring Sheet
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	WP489427 Whirlpool Refrigerator Screw
5	WP489467 Whirlpool Hinge Shim
6	W11594405 Whirlpool Axle
7	WP3400504 Whirlpool Refrigerator Screw
9	WP489497 Whirlpool Screw
10	WP2254618 Whirlpool Center Door Hinge
11	WP2183854 Whirlpool Refrigerator Shim
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	Fitting, Water Tube (Not Serviced)
15	Hole Plug (6) (Biscuit)
15	WP2151652 Whirlpool Refrigerator Button Plug
15	WP2183998 Whirlpool Refrigerator Button Plug
16	Seal, Front (Not Serviced)
17	Seal, Rear (Not Serviced)
18	W10283958 Whirlpool Refrigerator Filler
18	W11252732 Whirlpool Refrigerator Filler
18	WPW10283959 Whirlpool Refrigerator Filler
19	Grille (White)
19	GRILLE (INCLUDES ILLUS. 19) (BLACK)
19	Grille (Biscuit)
20	CLIP, GRILLE
21	WP487576 Whirlpool Washer
22	2213364 Whirlpool Refrigerator Cover
22	WP2213360 Whirlpool Refrigerator Cover
22	WP2213363 Whirlpool Refrigerator Cover
23	Rail, Center (Not Serviced)
24	Cover, Unit
25	Cabinet, (Not A Serviceable Part)
26	Shim, Bottom Hinge
