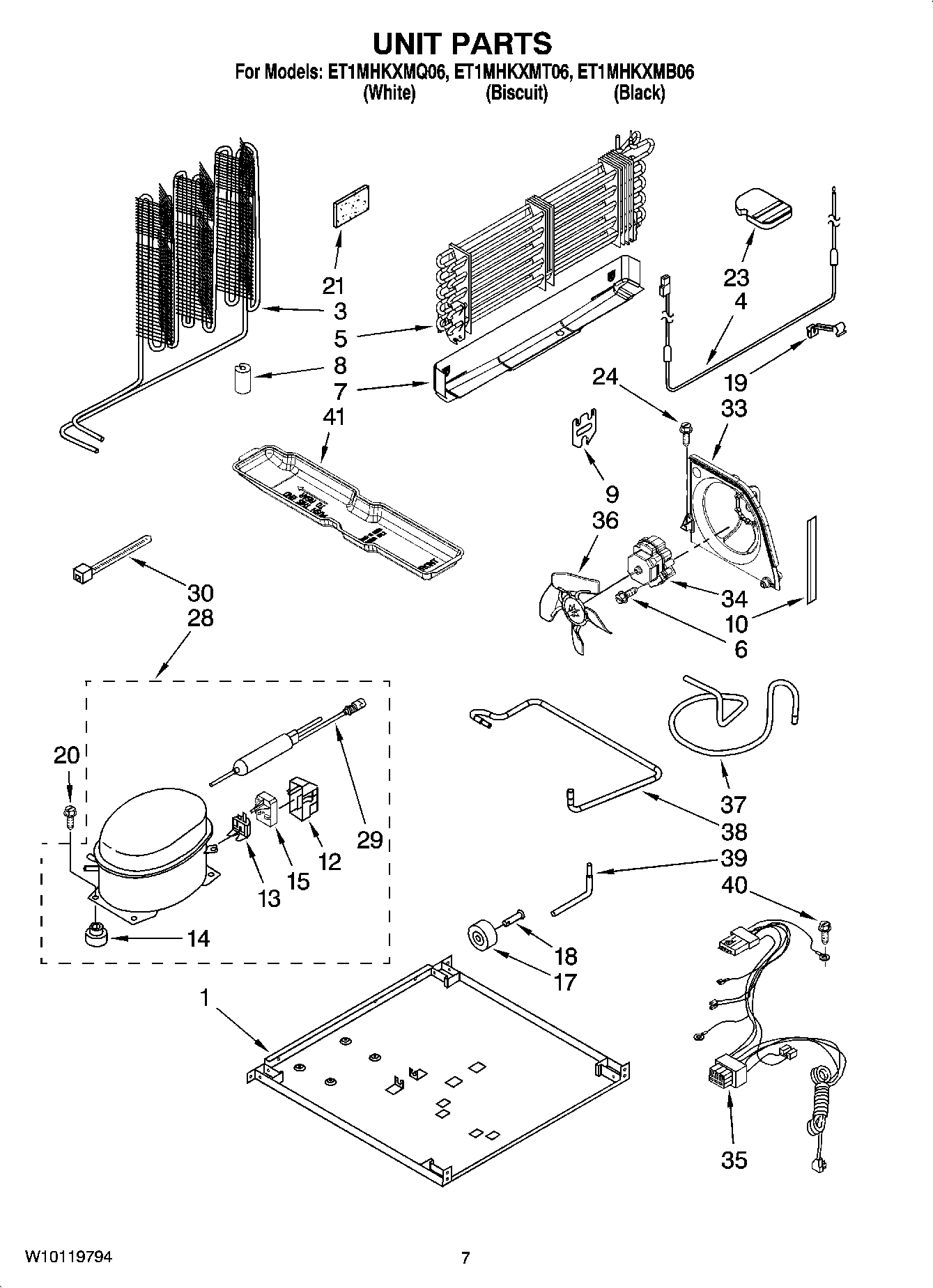

ET1MHKXMQ06 04 – UNIT PARTS

ET1MHKXMQ06 04 – UNIT PARTS

Written by

in

ET1MHKXMQ06 04 – UNIT PARTS

Products

PositionProduct
1Plate, Unit Mounting
3WP2214960 Whirlpool Refrigerator Condenser
4WPW10140847 Whirlpool Refrigerator Heater
5EVAPORATOR ASSY.
6WPW10171469 Whirlpool Refrigerator Screw
7Drain Pan
8W10852725 Whirlpool Refrigerator Grommet
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2302290 Whirlpool Refrigerator Overload
13WP4387938 Whirlpool Refrigerator Overload
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
15WP2258450 Whirlpool Refrigerator Start Device
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
21W11553819 Whirlpool Refrigerator Insulation
23Support Block
243400518 Whirlpool Oven Foot Mount Screw
28W10823815 Whirlpool Refrigerator Compressor
29WPW10143759 Whirlpool Dryer Filter
30WPW10339879 Whirlpool Wire Tie
33WP2315541 Whirlpool Refrigerator Air Baffle
34W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
35Wire Assy. Unit
36W11458267 Whirlpool Refrigerator Fan Blade
37Tube, Discharge
382205293 Whirlpool Refrigerator Tube
39W11676464 Whirlpool Tube
40WP489128 Whirlpool Refrigerator Screw
41876764 Whirlpool Refrigerator Primary Valve
41Following Parts Not Illustrated and Optional Parts Not Included
41978026 Whirlpool Refrigerator Primary Valve
418201826 Whirlpool Refrigerator Evaporator Tray
41VALVE, ACCESS (5/8“)
41VALVE, ACCESS (1/2“)
41WP978025 Whirlpool Refrigerator Valve
41978030 Whirlpool Refrigerator Valve
41978027 Whirlpool Refrigerator Primary Valve
41REFRIGERANT CHARGE 4.00 Ozs. (R134A)
