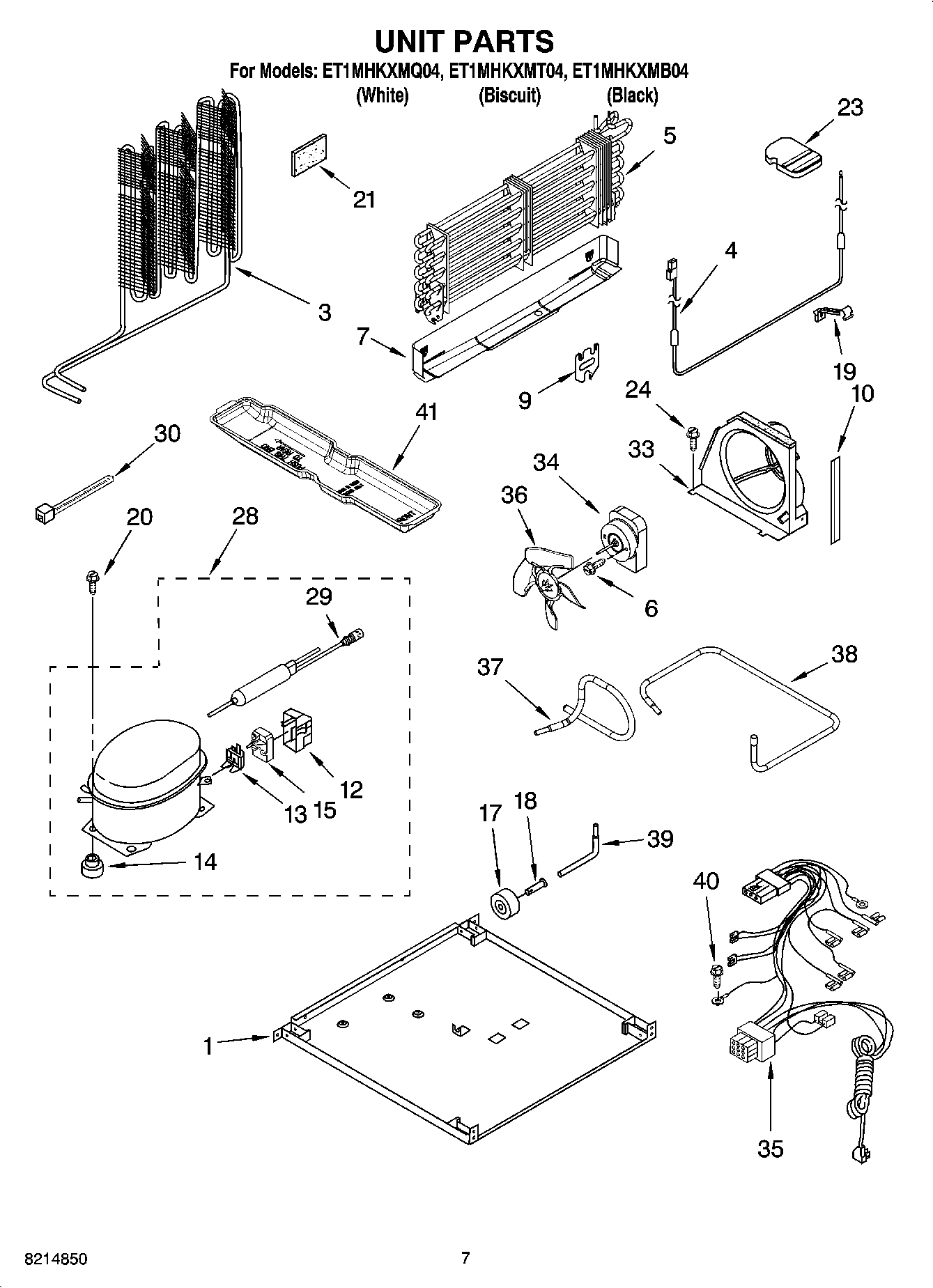

ET1MHKXMT04 04 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
3	WP2214960 Whirlpool Refrigerator Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2302290 Whirlpool Refrigerator Overload
13	WP4387938 Whirlpool Refrigerator Overload
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	WP2258450 Whirlpool Refrigerator Start Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	W11553819 Whirlpool Refrigerator Insulation
23	Support Block
24	3400518 Whirlpool Oven Foot Mount Screw
28	W10823815 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
33	Air Baffle
34	WP2188874 Whirlpool Refrigerator Condenser Motor
35	Wire Assy. Unit
36	W11458267 Whirlpool Refrigerator Fan Blade
37	Tube, Discharge
38	2205293 Whirlpool Refrigerator Tube
39	W11676464 Whirlpool Tube
40	WP489128 Whirlpool Refrigerator Screw
41	Following Parts Not Illustrated and Optional Parts Not Included
41	8201826 Whirlpool Refrigerator Evaporator Tray
41	978026 Whirlpool Refrigerator Primary Valve
41	876764 Whirlpool Refrigerator Primary Valve
41	978027 Whirlpool Refrigerator Primary Valve
41	978030 Whirlpool Refrigerator Valve
41	WP978025 Whirlpool Refrigerator Valve
41	VALVE, ACCESS (1/2“)
41	VALVE, ACCESS (5/8“)
41	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
