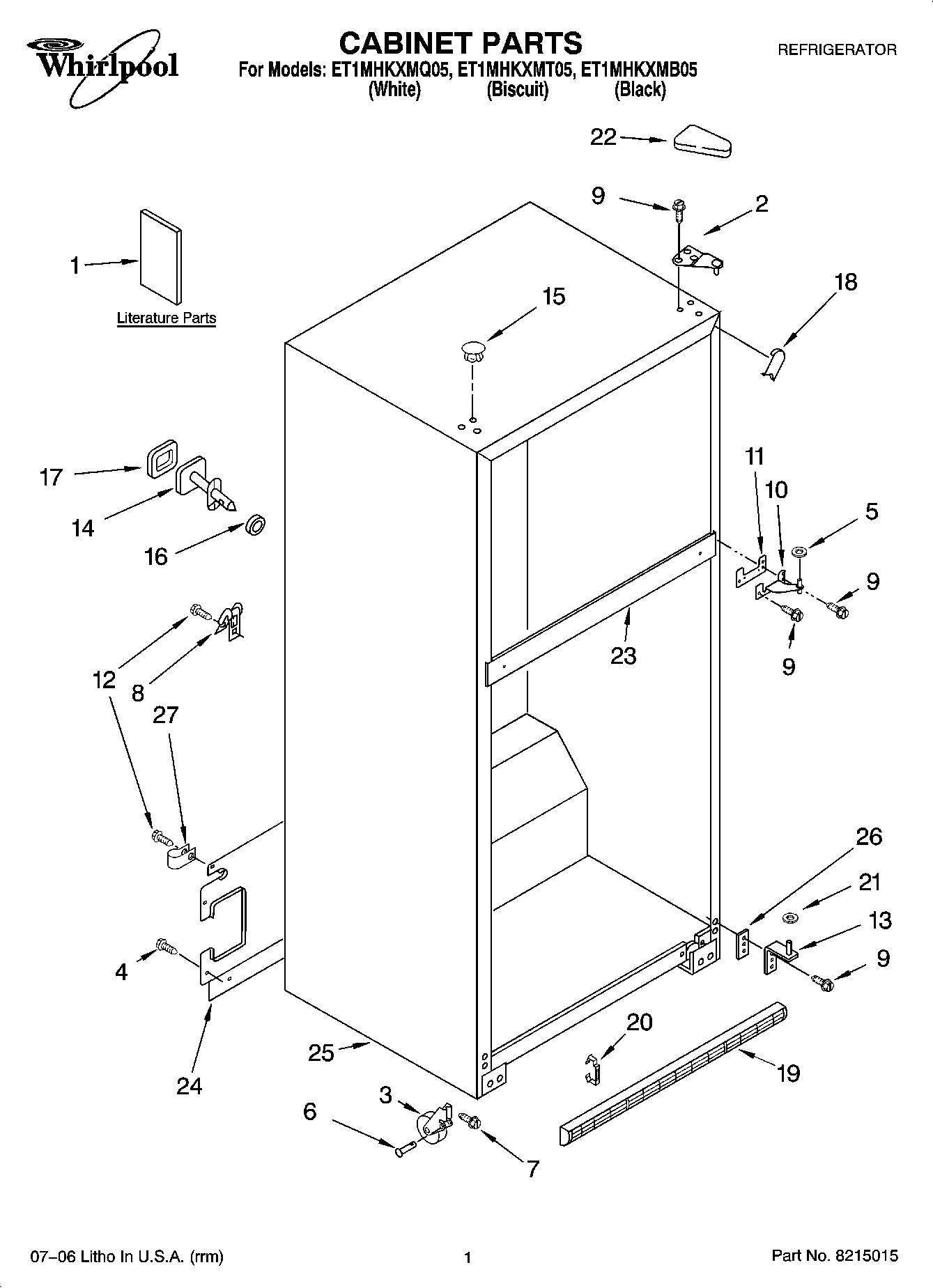

ET1MHKXMT05 01 – CABINET PARTS

ET1MHKXMT05 01 – CABINET PARTS

Written by

in

ET1MHKXMT05 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Service & Wiring Sheet
1Energy Label
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
5WP489467 Whirlpool Hinge Shim
6W11594405 Whirlpool Axle
7WP3400504 Whirlpool Refrigerator Screw
8549193 Whirlpool Refrigerator Power Clamp
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183854 Whirlpool Refrigerator Shim
12WP489464 Whirlpool Refrigerator Screw
13WP2254473 Whirlpool Refrigerator Door Hinge
14Fitting, Water Tube (Not Serviced)
15Hole Plug (6) (Biscuit)
15WP2183998 Whirlpool Refrigerator Button Plug
15WP2151652 Whirlpool Refrigerator Button Plug
16Seal, Front (Not Serviced)
17Seal, Rear (Not Serviced)
18WPW10283959 Whirlpool Refrigerator Filler
18W11252732 Whirlpool Refrigerator Filler
18W10283958 Whirlpool Refrigerator Filler
19GRILLE (INCLUDES ILLUS. 19) (BLACK)
19Grille (Biscuit)
19Grille (White)
20CLIP, GRILLE
21WP487576 Whirlpool Washer
222213364 Whirlpool Refrigerator Cover
22WP2213363 Whirlpool Refrigerator Cover
22WP2213360 Whirlpool Refrigerator Cover
23Rail, Center (Not Serviced)
24Cover, Unit
25Cabinet, (Not A Serviceable Part)
26Shim, Bottom Hinge
27WP488366 Whirlpool Refrigerator Clamp
