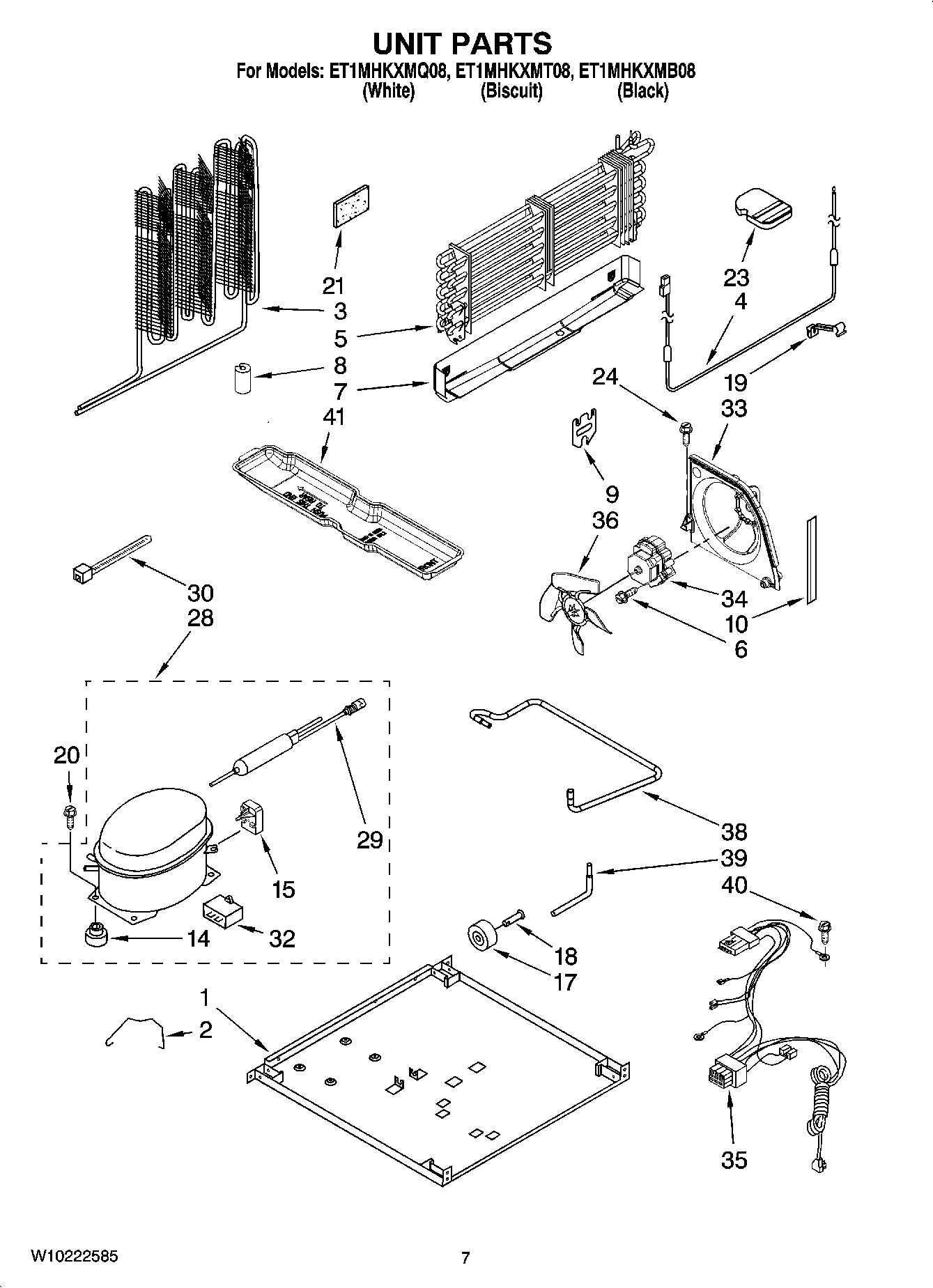

ET1MHKXMT08 04 – UNIT PARTS

Products

Position	Product
	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
2	2212996 Whirlpool Refrigerator Retainer
3	Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	W10852725 Whirlpool Refrigerator Grommet
9	Bracket, Heater
10	Extension, Air Baffle
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	WP2225929 Whirlpool Refrigerator Start Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	W11553819 Whirlpool Refrigerator Insulation
23	Support Block
24	3400518 Whirlpool Oven Foot Mount Screw
28	W10285060 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP2315541 Whirlpool Refrigerator Air Baffle
34	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
35	2310433 Whirlpool Refrigerator Wire Harness
36	W11458267 Whirlpool Refrigerator Fan Blade
38	Tube, Suction
39	2154109 Whirlpool Refrigerator Tube
40	WP489128 Whirlpool Refrigerator Screw
41	WP2254574 Whirlpool Refrigerator Evaporator Tray
