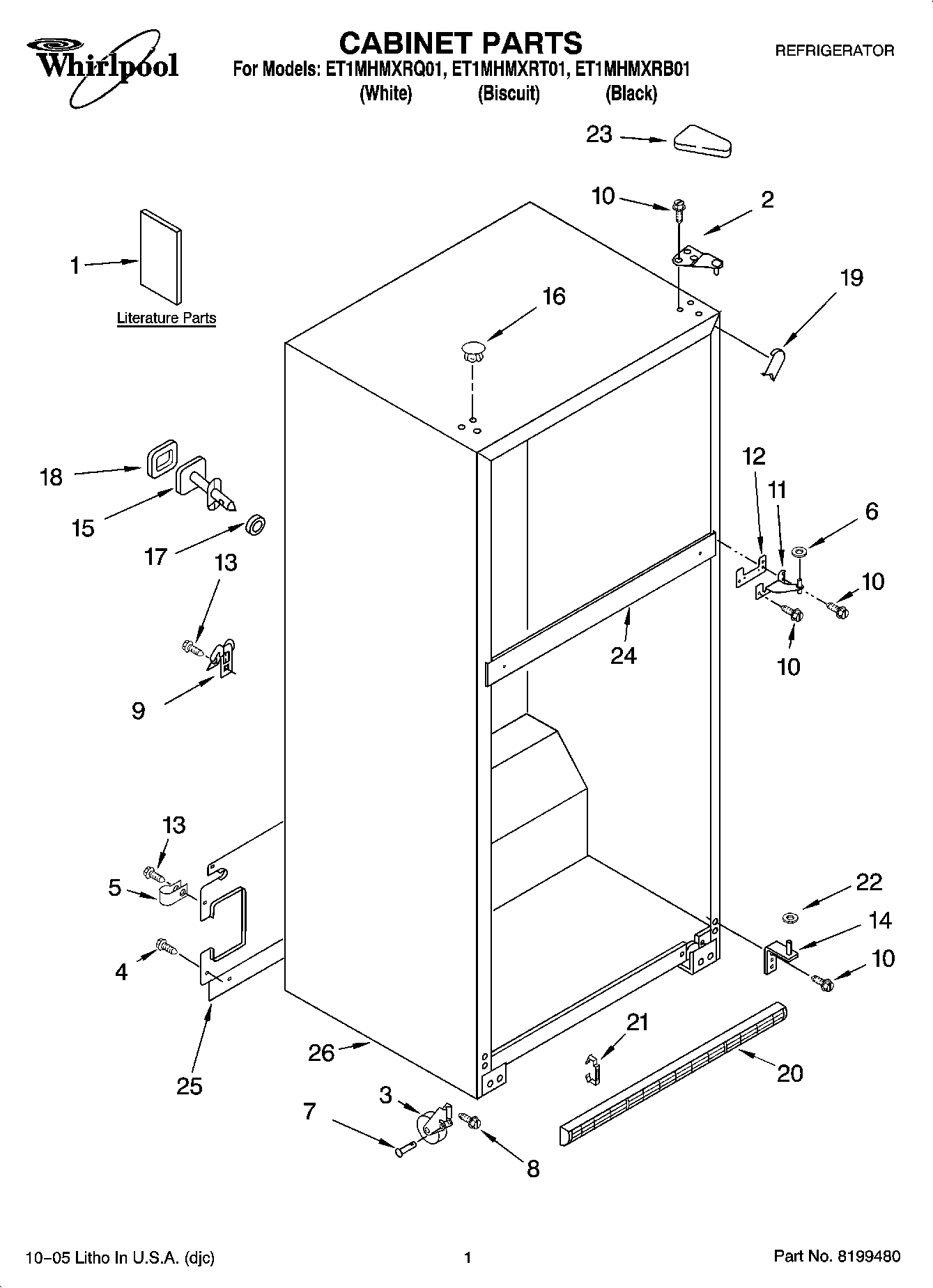

ET1MHMXRQ01 01 – CABINET PARTS

ET1MHMXRQ01 01 – CABINET PARTS

Written by

in

ET1MHMXRQ01 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Use & Care Guide
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Label
1Service & Wiring Sheet
1Modular Icemaker Service Sheet
1Customer Instructions
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
6WP489467 Whirlpool Hinge Shim
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
9549193 Whirlpool Refrigerator Power Clamp
10WP489497 Whirlpool Screw
11WP2254618 Whirlpool Center Door Hinge
12WP2183854 Whirlpool Refrigerator Shim
13WP489464 Whirlpool Refrigerator Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
15Fitting, Water Tube (Not Serviced)
16WP2183998 Whirlpool Refrigerator Button Plug
16Hole Plug (6) (Biscuit)
16WP2151652 Whirlpool Refrigerator Button Plug
17Seal, Front (Not Serviced)
18Seal, Rear (Not Serviced)
19W10283958 Whirlpool Refrigerator Filler
19W11252732 Whirlpool Refrigerator Filler
19WPW10283959 Whirlpool Refrigerator Filler
20Grille (Biscuit)
20Grille (White)
20GRILLE (INCLUDES ILLUS. 19) (BLACK)
21CLIP, GRILLE
22WP487576 Whirlpool Washer
232213364 Whirlpool Refrigerator Cover
23WP2213360 Whirlpool Refrigerator Cover
23WP2213363 Whirlpool Refrigerator Cover
24Rail Center (Not Serviced)
25Cover, Unit
26Cabinet (Not A Serviceable Part)
