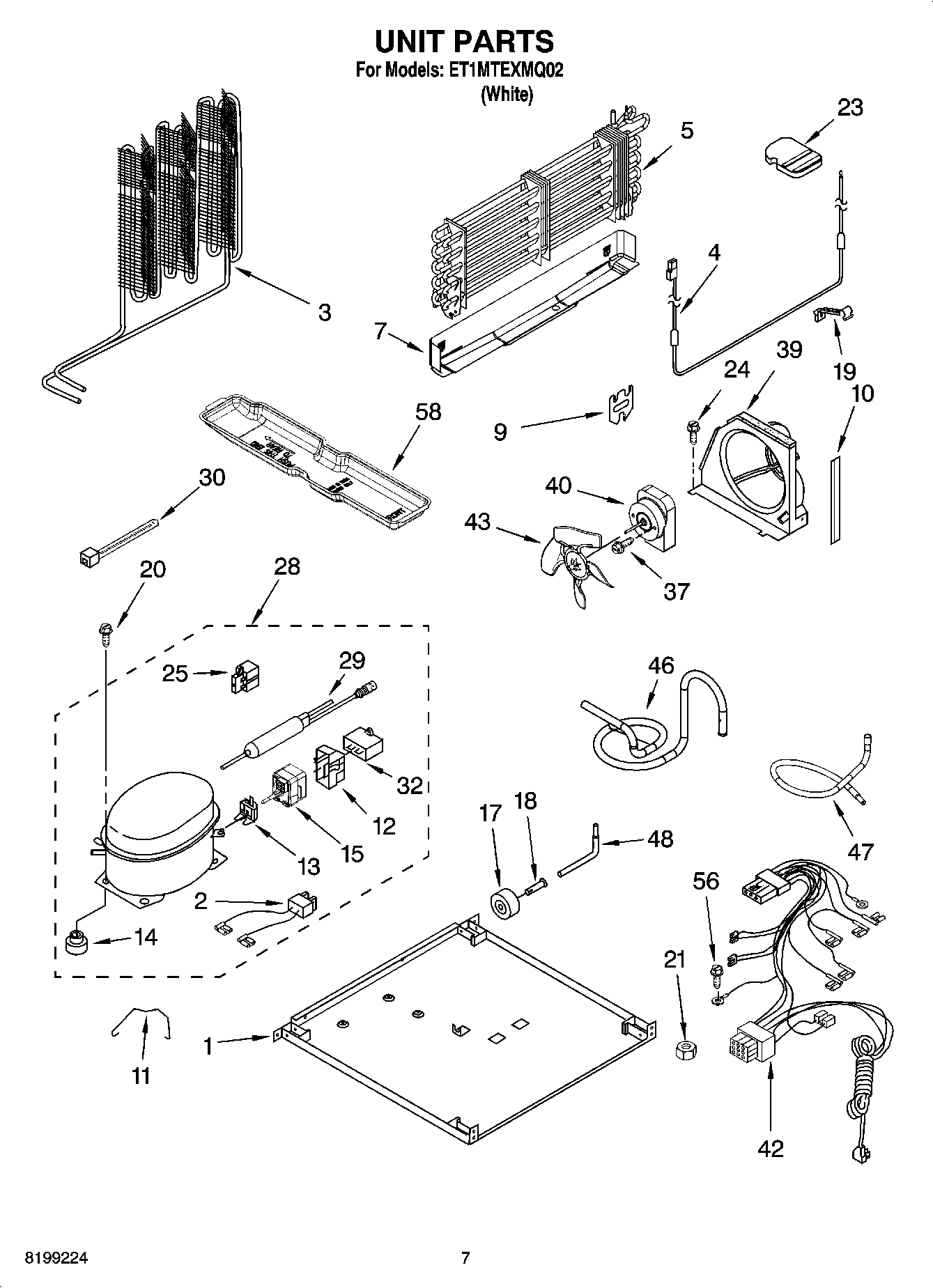

ET1MTEXMQ02 04 – UNIT PARTSadmin2025-04-26T11:02:32+00:00ET1MTEXMQ02 04 – UNIT PARTS ProductsPositionProduct1Plate, Unit Mounting2WP2172890 Whirlpool Refrigerator Wire3WP2214960 Whirlpool Refrigerator Condenser4WP2315530 Whirlpool Refrigerator Heater5EVAPORATOR ASSY.7Drain Pan9Bracket, Heater10Extension, Air Baffle112212996 Whirlpool Refrigerator Retainer12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2214067 Whirlpool Refrigerator Overload Relay14876811 Whirlpool Grommet14WP4387558 Whirlpool Refrigerator Compressor Grommet15WP2225929 Whirlpool Refrigerator Start Device17WPW10475495 Whirlpool Roller Assembly18W11594405 Whirlpool Axle19Clip, Heater21Nut (Not Serviced)23Support Block243400518 Whirlpool Oven Foot Mount Screw25W10920279 Whirlpool Refrigerator Start Relay28W10309988 Whirlpool Refrigerator Compressor29W10843121 Whirlpool Refrigerator Tube30WPW10339879 Whirlpool Wire Tie32WPW10662129 Whirlpool Refrigerator Run Capacitor37WPW10171469 Whirlpool Refrigerator Screw39Air Baffle40WP2188874 Whirlpool Refrigerator Condenser Motor422187382 Whirlpool Refrigerator Wire Harness43W11458267 Whirlpool Refrigerator Fan Blade46Tube, Discharge47Tube, Suction482154109 Whirlpool Refrigerator Tube56WP489128 Whirlpool Refrigerator Screw58Following Parts Not Illustrated and Optional Parts Not Included588201826 Whirlpool Refrigerator Evaporator Tray58876764 Whirlpool Refrigerator Primary Valve58978026 Whirlpool Refrigerator Primary Valve58978027 Whirlpool Refrigerator Primary Valve58978030 Whirlpool Refrigerator Valve58WP978025 Whirlpool Refrigerator Valve58VALVE, ACCESS (1/2``)58VALVE, ACCESS (5/8``)58REFRIGERANT CHARGE 4.00 Ozs. (R134A)
