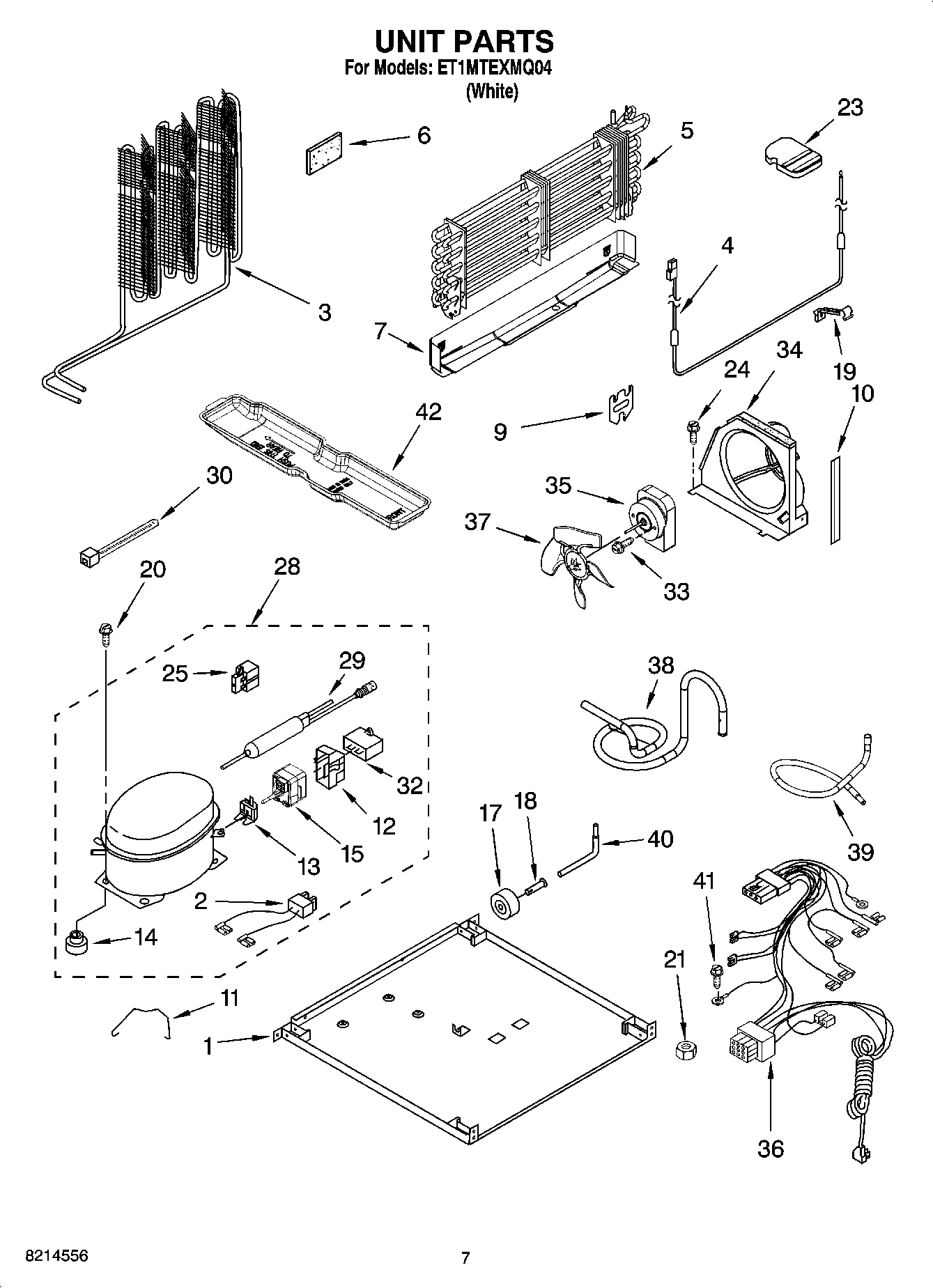

ET1MTEXMQ04 04 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
2	WP2172890 Whirlpool Refrigerator Wire
3	WP2214960 Whirlpool Refrigerator Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	W11553819 Whirlpool Refrigerator Insulation
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
11	2212996 Whirlpool Refrigerator Retainer
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	WP2225929 Whirlpool Refrigerator Start Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Nut (Not Serviced)
23	Support Block
24	3400518 Whirlpool Oven Foot Mount Screw
25	W10920279 Whirlpool Refrigerator Start Relay
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WPW10171469 Whirlpool Refrigerator Screw
34	Air Baffle
35	WP2188874 Whirlpool Refrigerator Condenser Motor
36	2187382 Whirlpool Refrigerator Wire Harness
37	W11458267 Whirlpool Refrigerator Fan Blade
38	Tube, Discharge
39	Tube, Suction
40	2154109 Whirlpool Refrigerator Tube
41	WP489128 Whirlpool Refrigerator Screw
42	978027 Whirlpool Refrigerator Primary Valve
42	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
42	Following Parts Not Illustrated and Optional Parts Not Included
42	8201826 Whirlpool Refrigerator Evaporator Tray
42	978026 Whirlpool Refrigerator Primary Valve
42	VALVE, ACCESS (5/8“)
42	VALVE, ACCESS (1/2“)
42	WP978025 Whirlpool Refrigerator Valve
42	876764 Whirlpool Refrigerator Primary Valve
42	978030 Whirlpool Refrigerator Valve
